5.3 Flow sensor calibration
WARNING – Risk of failure to the anaesthesia unit and/or injuries to
the patient.
The flow sensor calibraition should be performed:
• Exclusively by qualified and SIARE trained personnel.
• When there are differences higher than 20% between set volume
(Vt) and measured value of expired tidal volume (Vte).
WARNING – Risk of failure of the anaesthesia unit and/or injuries to
the patient.
• Before performing the calibration of flow sensor execute the leak
TEST (see cfr. 5 page 10).
• If the leak TEST is overcome proceed with flow sensor calibration.

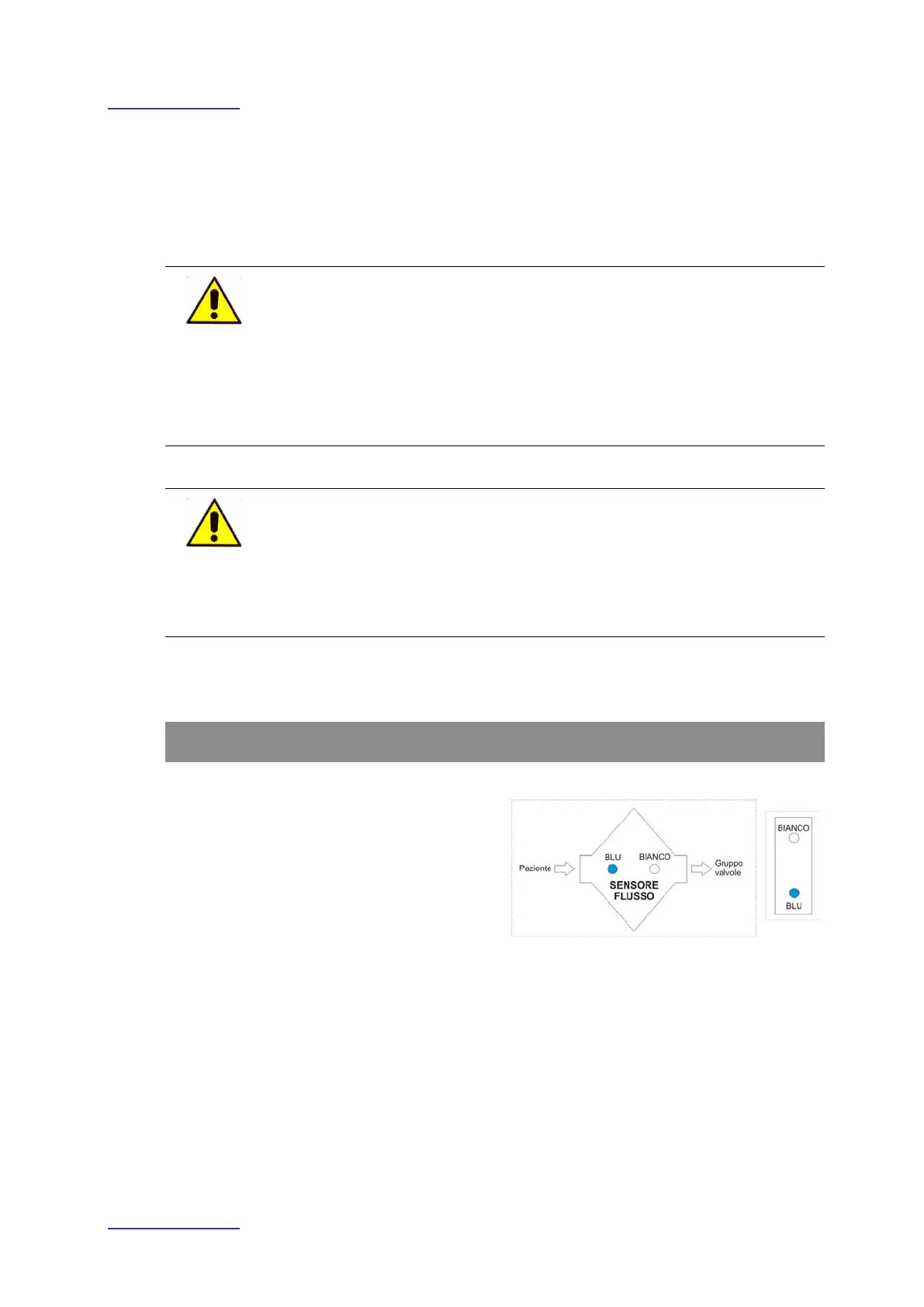

Flow sensor calibration
• STAND-BY operative mode.
• Flow sensor correctly mounted (EXP
line) and connected to the anaesthesia
unit.
• Patient circuit connected to the valves
group with Y connector plugged.
