AD.A module
7-14 MORPHEUS MRI

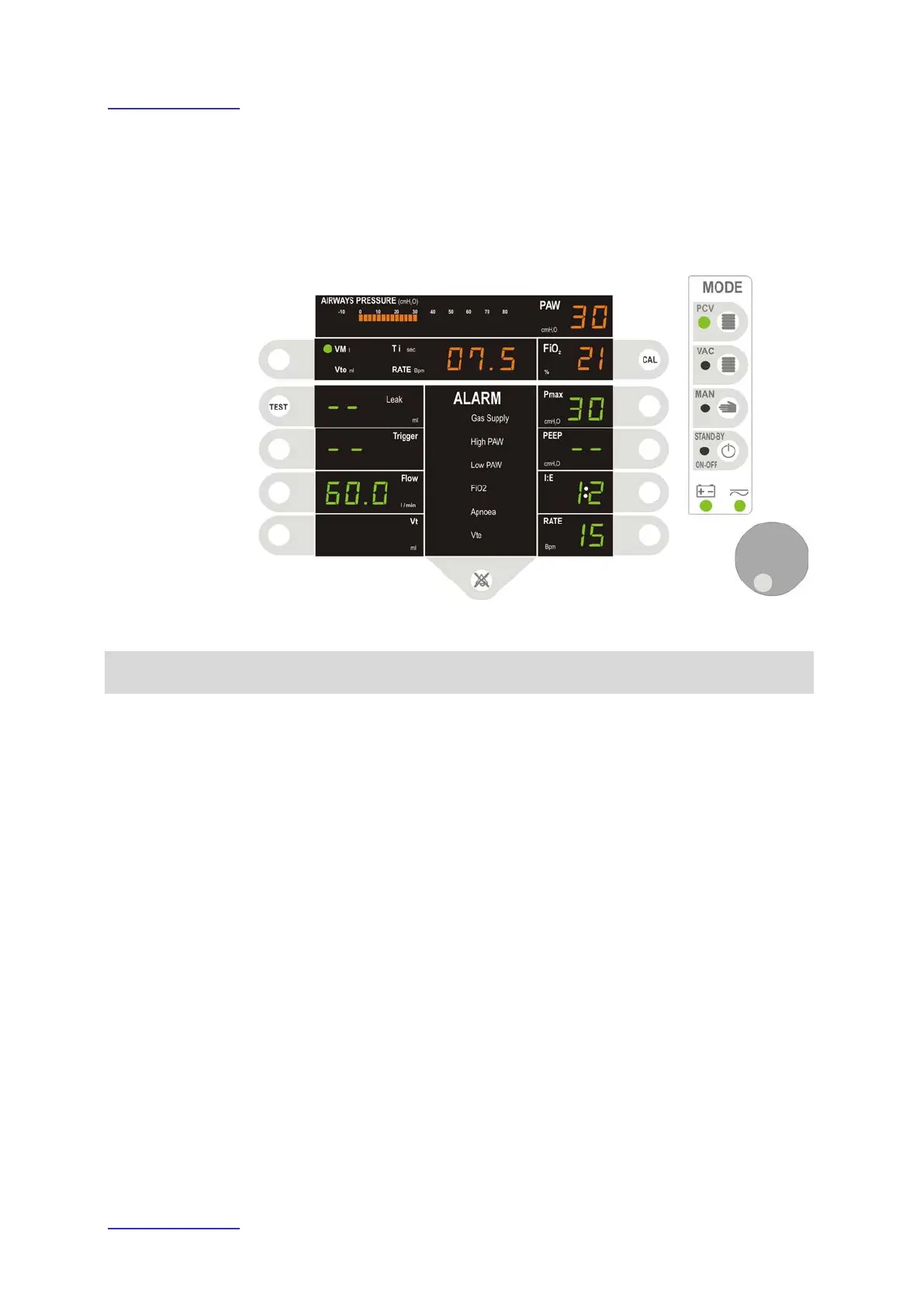

Respiratory physiological parameters in PCV
Trigger OFF
Flow 60 l/min
RATE 15 bpm
I/E 1:2
PEEP OFF
Pmax 30 cmH
2
O
The PCV is a pressure controlled ventilation synchronized with patient breath,
in which the system delivers a ventilation at a preset inspiratory pressure (Pmax), a
preset flow (Flow), for an inspiratory time (Ti), an I:E ratio calculated and an
adjustable rate (Rate).
