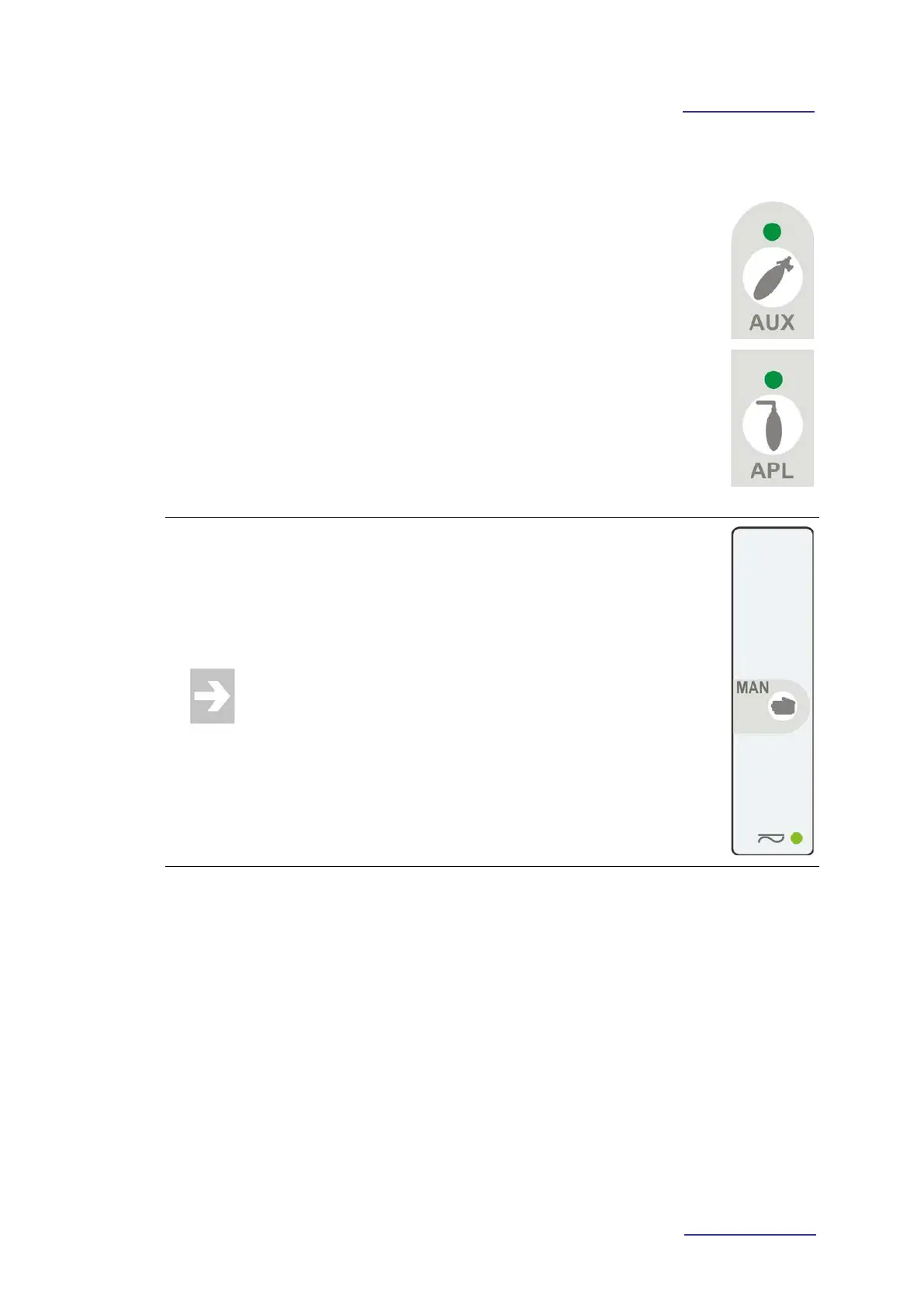

9.3 Fresh gas selection control: enabling output connector at fresh
gas exit (AUX).
9.4 Fresh gas exit selection control: enabling valves group (APL).
In manual operative mode it is possible to select the correct
mode to ventilate the patient:
• by external auxiliary system, for example a manual
ventilation system like MAPLESON C type or similar
(AUX);
• or through the valves group (APL).
These buttons are synchronized with the ventilator manual
operative mode so to avoid accidental or incoherent drives.
9.5 Fresh gas exit connector
10 Valves group
10.1 Connector for supplied manual ventilation kit
