S5 Description
4-6 MORPHEUS MRI
4.3 Description

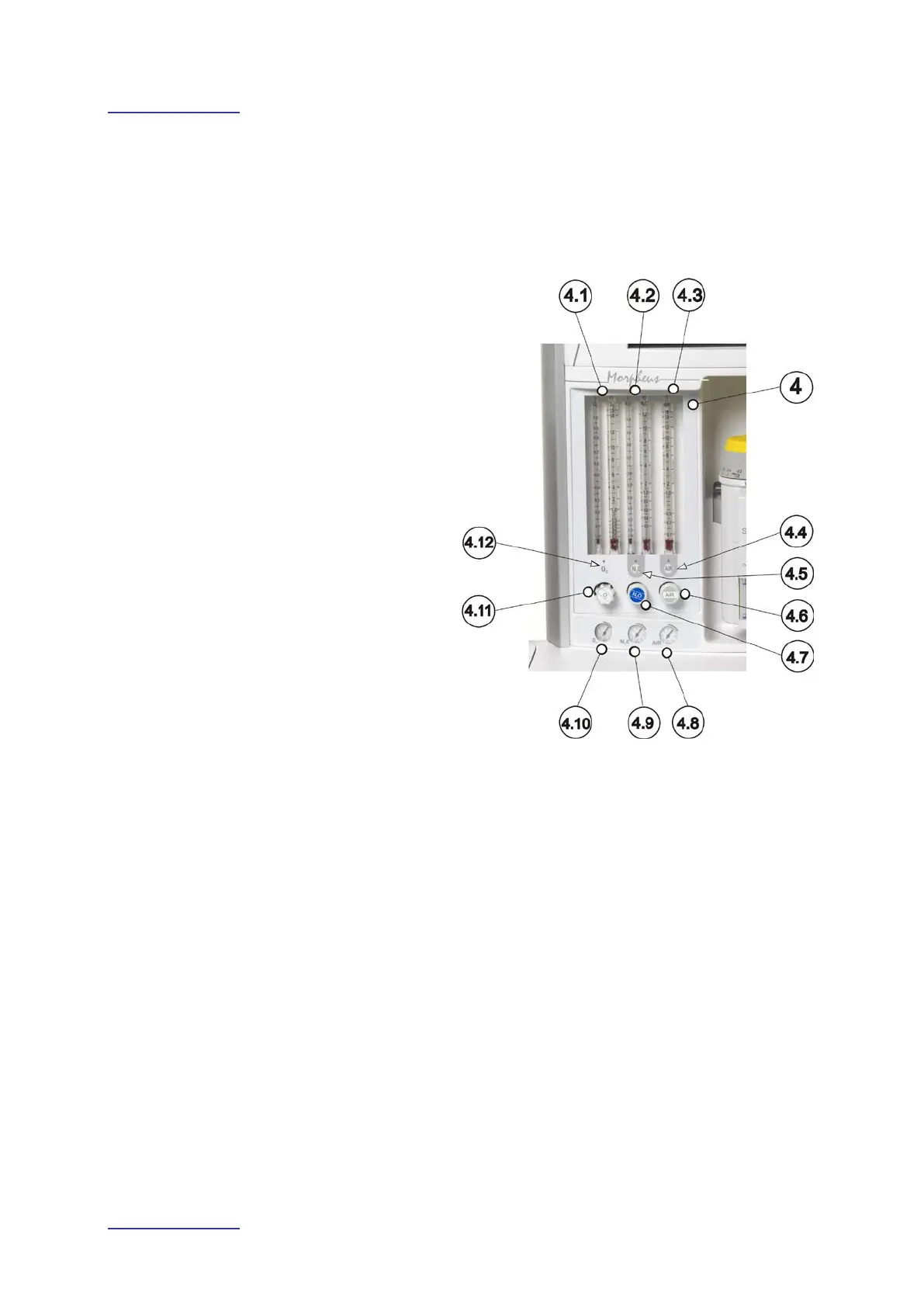

4 Anaesthesia module (in the example shown above, the mechanical flowmeter
box with five flowmeters).
4.1 Oxygen flowmeter (max. flow 15 l/min).
Oxygen flowmeter with 1 liter end-scale for low fows.
4.2 Nitrous Oxide flowmeter (max. flow 12 l/min).
Nitrous Oxide flowmeter with 1 liter end-scale for low fows
4.3 AIR flowmeter (max. flow 15 l/min).
4.4 Membrane key for Air delivery selection.
• Green led: air delivery is possible.
4.5 Membrane key for Nitrous Oxide delivery selection.
• Green led: nitrous oxide delivery is possible
