AD.A module
5-10 MORPHEUS MRI
LEAK TEST
WARNING! - Risk of anaesthesia unit failure and/or injuries for the
patient.
This test verifies that there are no leaks higher than 100 ml in the
anaesthesia unit pneumatic circuits.
WARNING! - Risk of injury for the patient.
Perform the LEAK TEST : consult the “Maintenance“ chapter.
• STAND-BY operative mode.
• Patient circuit correctly mounted on the breathing system.
• Close or plug the Y of patient circuit.
• Press for a few seconds the TEST membrane key.
• The TEST procedure of equipment pneumatic circuit starts.
•

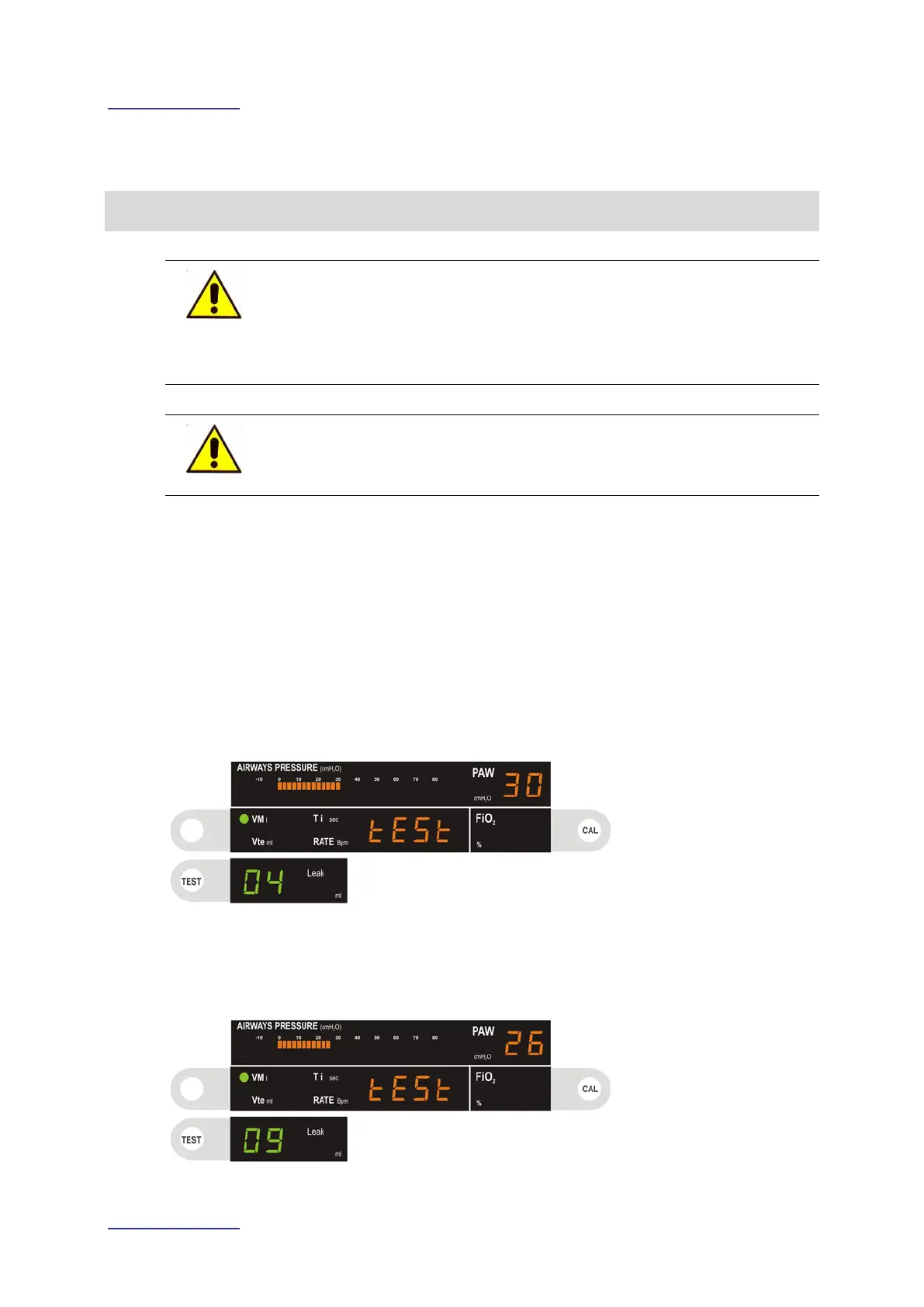

The value of PAW is going to reach the value of 30 within 15 sec.
At the end of TEST procedure (around 10 sec.) a value in ml, which indicates the
leak of pneumatic circuit, is displayed (see the picture example:
).
