4.4.2 Setting preset value
A preset value only affects G1_XIST1 if the related parameters are set. For G1_XIST1
this is position 1 in the input data for telegrams 81 to 84 (see section 3.4.2 on
page 16).
Configuration data
 Set the parameter Class 4 functionality to Enable.
 Set the parameter G1_XIST1 Preset control to Enable.

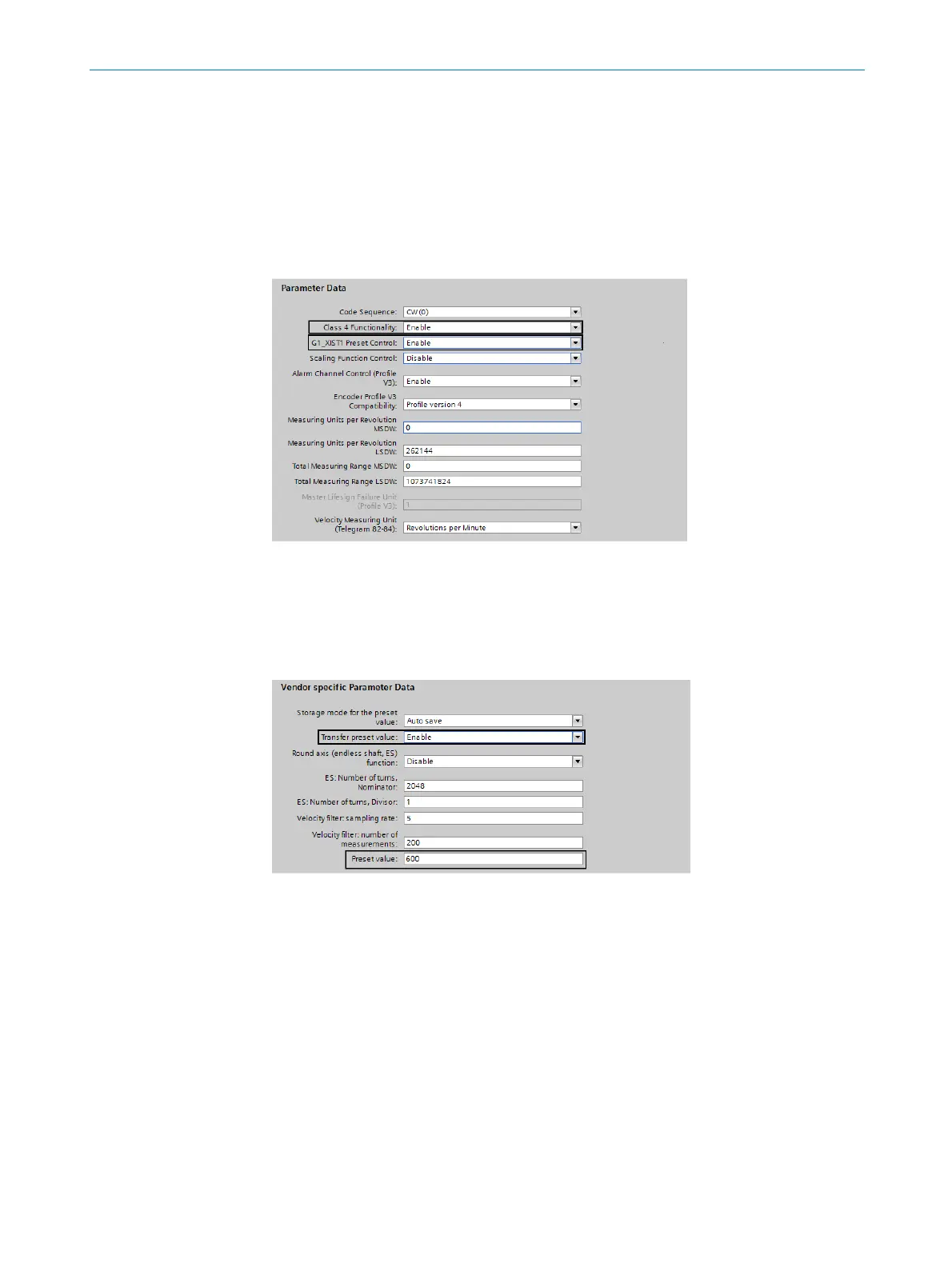

Figure 16: Configuration data for a preset value
Vendor specific configuration data
 Set the parameter Transmit preset value to Enable.
 Set the parameter Preset value e.g. to 600.
Figure 17: Vendor specific configuration data for a preset value
