4 COMMISSIONING

OPERATING INSTRUCTIONS | AFS60/AFM60 PROFINET 8015078/145N/2019-05-24 | SICK STEGMANN

Subject to change without notice

4.2 Settings on the hardware

There are the following controls for making settings under the screw cover:

 Three address switches

 Preset push-button

 Open the screw cover using a screwdriver for slot-head screws with a blade width

of min. 10.0 mm.

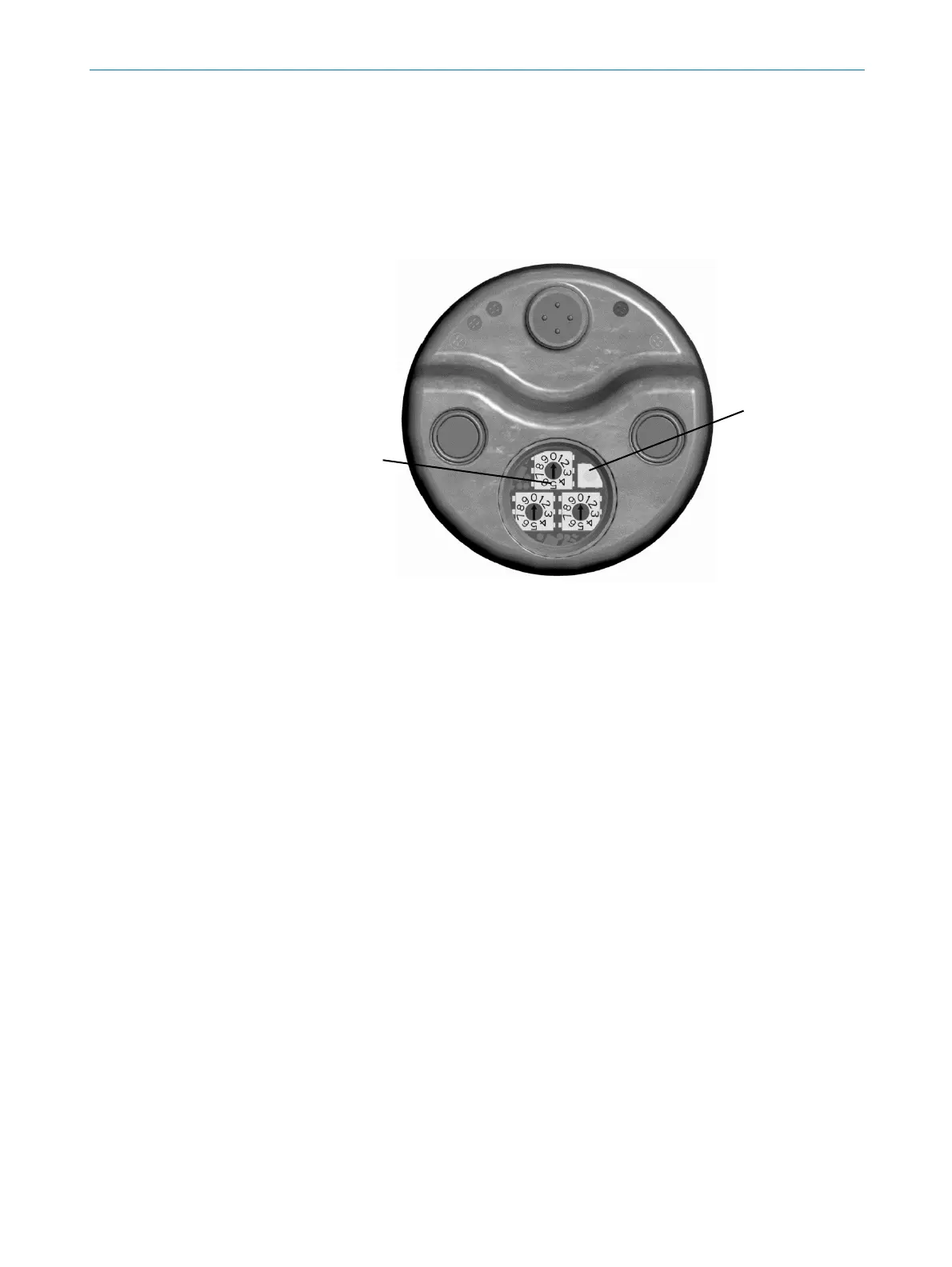

Figure 9: Position of the controls

Preset

push-button

Address

switches
