COMMISSIONING 4
8015078/145N/2019-05 -24 | SICK STEGMANN OPERATING INSTRUCTIONS | AFS60/AFM60 PROFINET
53
Subject to change without notice
The Device view opens.

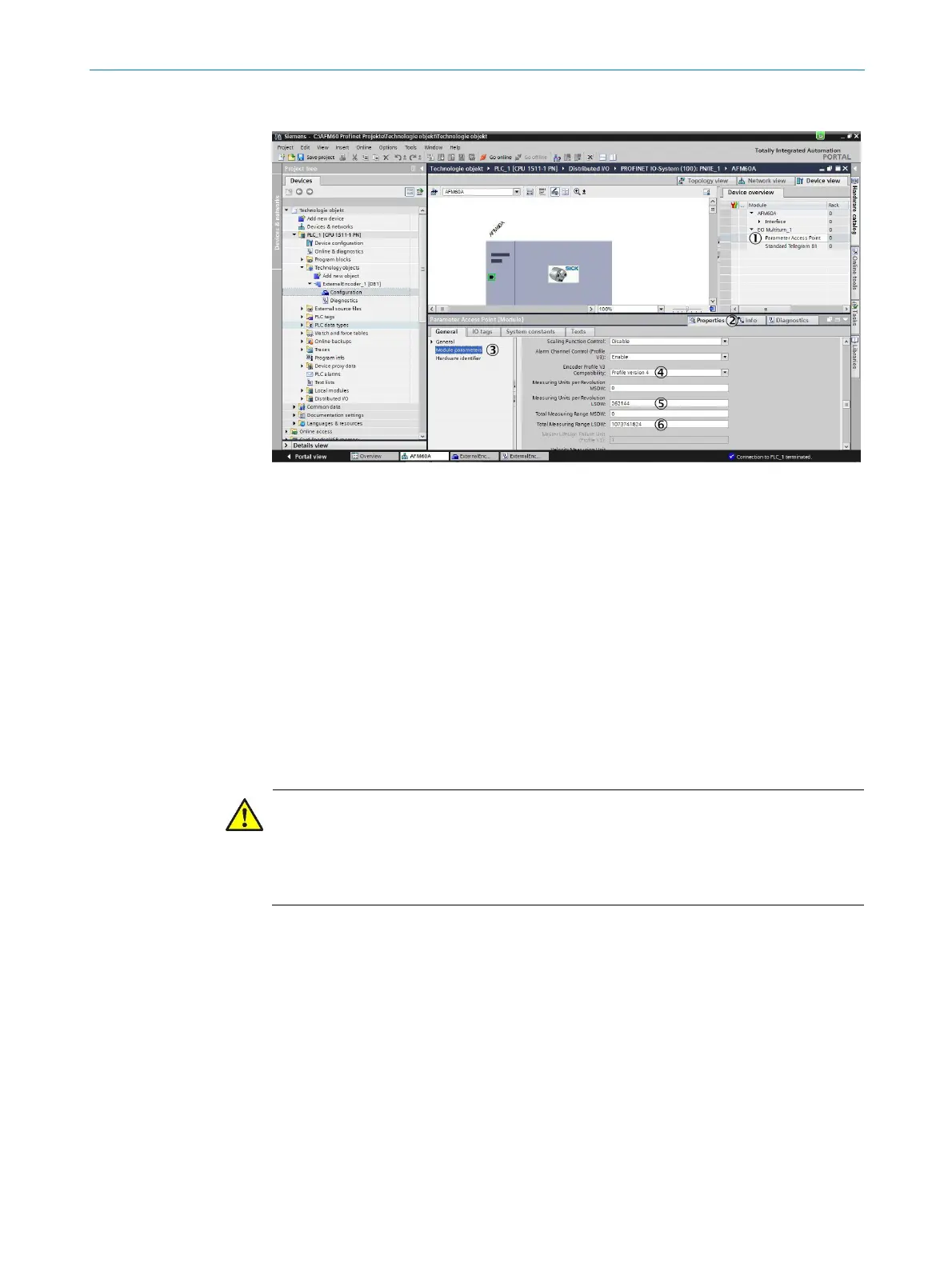

Figure 26: Device view
Click Parameter Access Point (), Properties () and then Module parameters
().
In the Encoder Profile V3 Compatibility field (), choose the following options:
○ Profile version 3 for the encoder with date code up to 1706
○ Profile version 4 for the encoder with date code from 1707
The value in the Measuring Units per Revolution LSDW field () must be the
same as the value in the Steps per revolution field in Data exchange (see
Figure 25 on page 52).
The value in the Total Measuring Range LSDW field () must be the same as the
product of the value in the Steps pre revolution and the Number of revolutions
field in Data exchange (see Figure 25 on page 52).
4.6 Test notes
WARNING
Commissioning requires a thorough check by authorized personnel!
Before you operate a system equipped with the AFS60/AFM60 PROFINET for the first
time, make sure that the system is first checked and released by authorized personnel.
Please read the notes in chapter 2 “On safety” on page 8.
