COMMISSIONING 4
8015078/145N/2019-05 -24 | SICK STEGMANN OPERATING INSTRUCTIONS | AFS60/AFM60 PROFINET
49
Subject to change without notice
Control words
Set Bit 10 of the control word STW2_ENC on 1 (=400h).
Set Bit 12 of the control word G1_STW to 1 (= 1000h) ().
With the edge change on bit 12 of G1_STW from 0 to 1, the preset value is set
)
and initially output only in Position 1 (G1_XIST1 – left-justified) ()
)
.

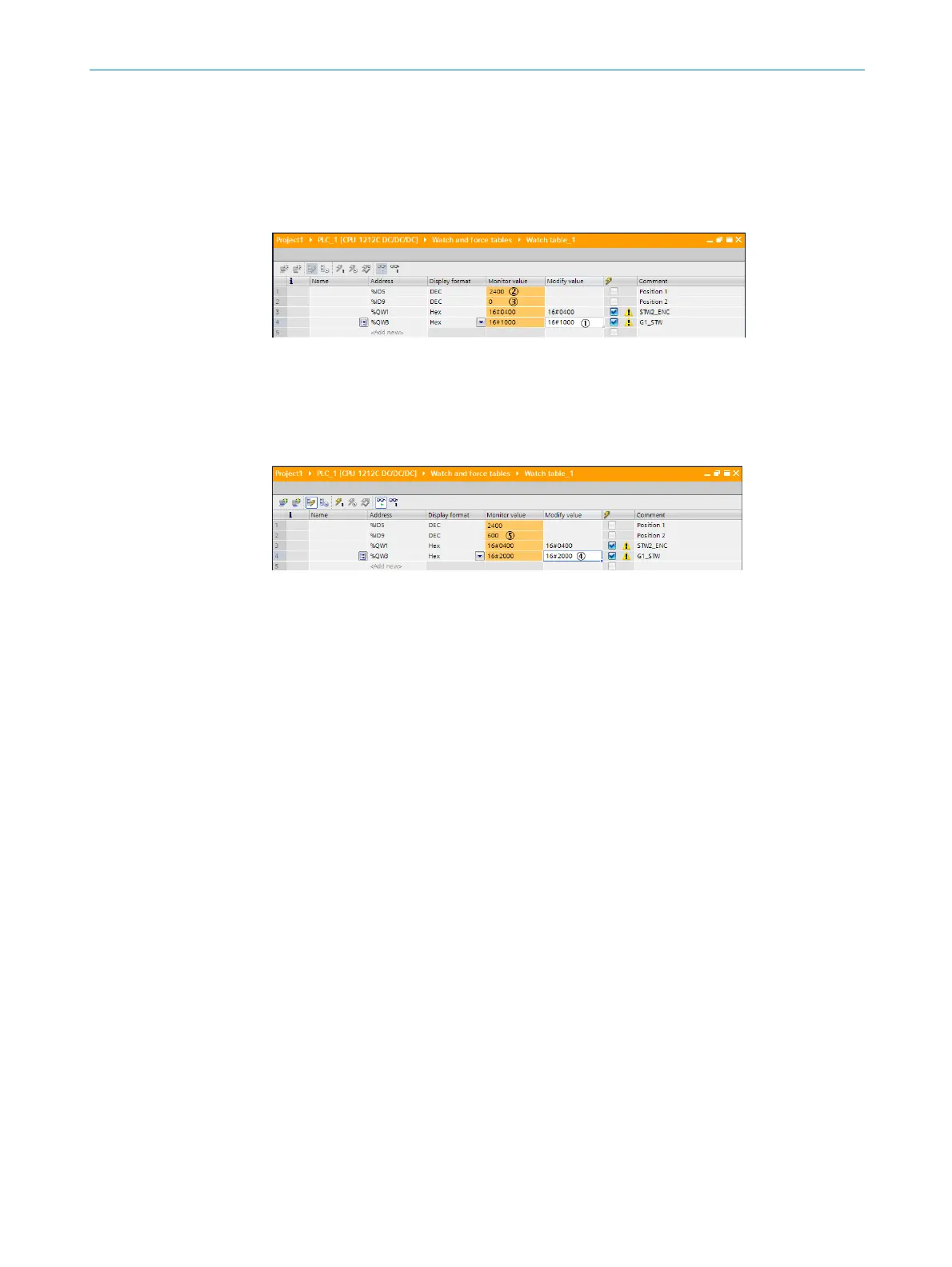

Figure 18: Setting bit 12 of G1_STW
Initially a position value is not output in Position 2 (G1_XIST2 – right-justified ().
To output the position value in Position 2 (G1_XIST2), you must set bit 12 to 0 and
bit 13 of the control word G1_STW to 1 (= 2000h, ).
Figure 19: Setting bit 13 of G1_STW
The preset value set is then output in Position 2 (G1_XIST2 ().
)
To be able to set the preset value again, you must again set bit 12 of G1_STW to 0.
)
Due to the shift of two bits, in the decimal depiction the value is four times the preset value (in the example 2400 instead of 600).
