Installation
3.3.3
SPU alignment
The signal processing unit (SPU) can be turned so that the display can be easily read and
that cable routing is facilitated (see
→ Figure 8). A stop on the housing prevents the SPU from
being turned by more than 330° to prevent damage to the cables that come from the meter
body.

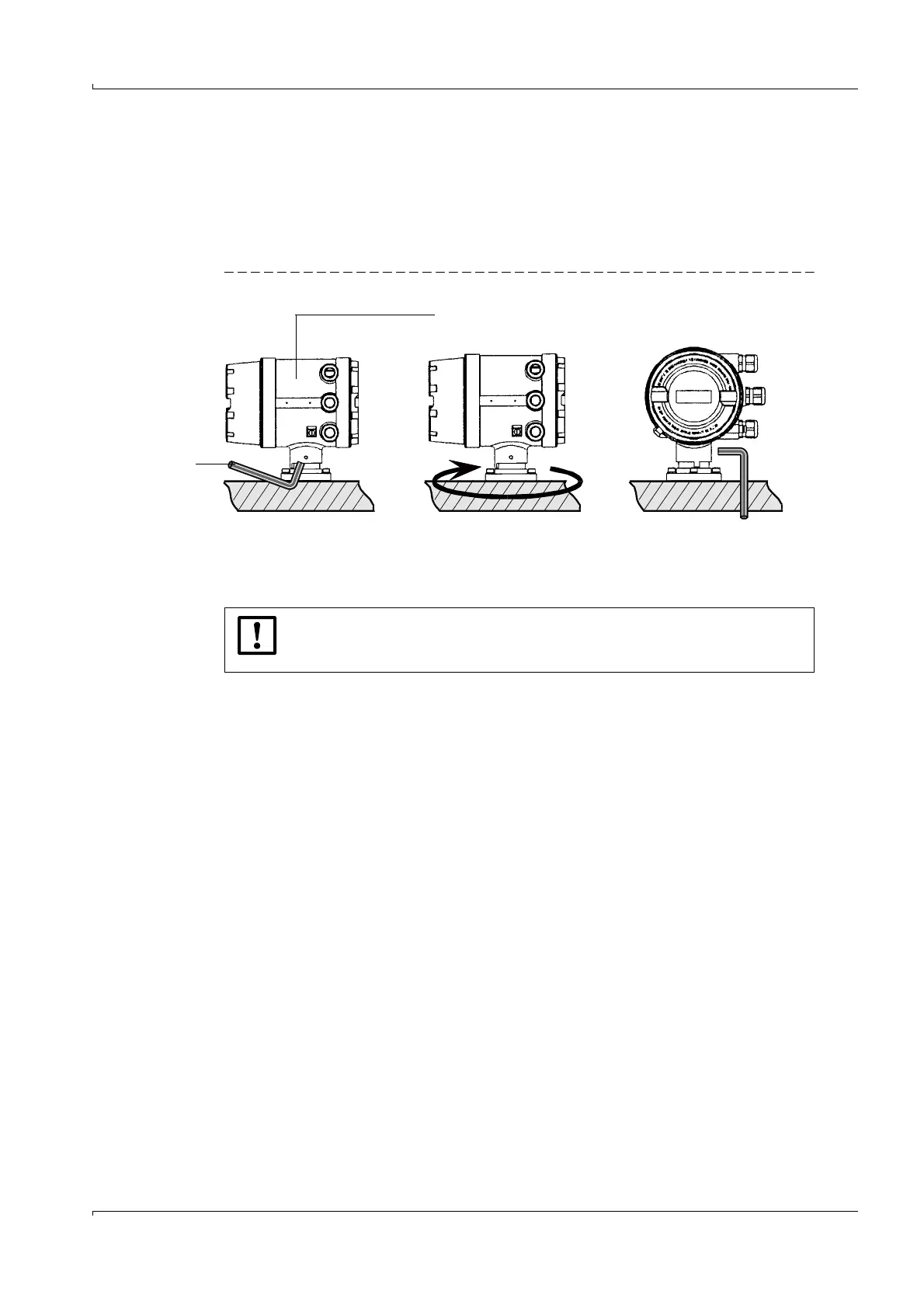

Figure 8 Positioning the SPU.
Signal processing unit
Loosen the hexagon Position the SPUTighten the hexagon
socket head screw socket head screw
1. 2. 3.
Tool required for
loosening and
tightening the
hexagon
socket head
screw:
3 mm Allen key
NOTICE:
Do not forget to tighten the hexagon socket head screw after positioning the
SPU.
