45
8012704/YHS4/V2-0/2016-10 | SICK OPERATING INSTRUCTIONS | GM32
Subject to change without notice
OPERATION 5
5.2.5.2 Check cycle
Results of the last check cycle.

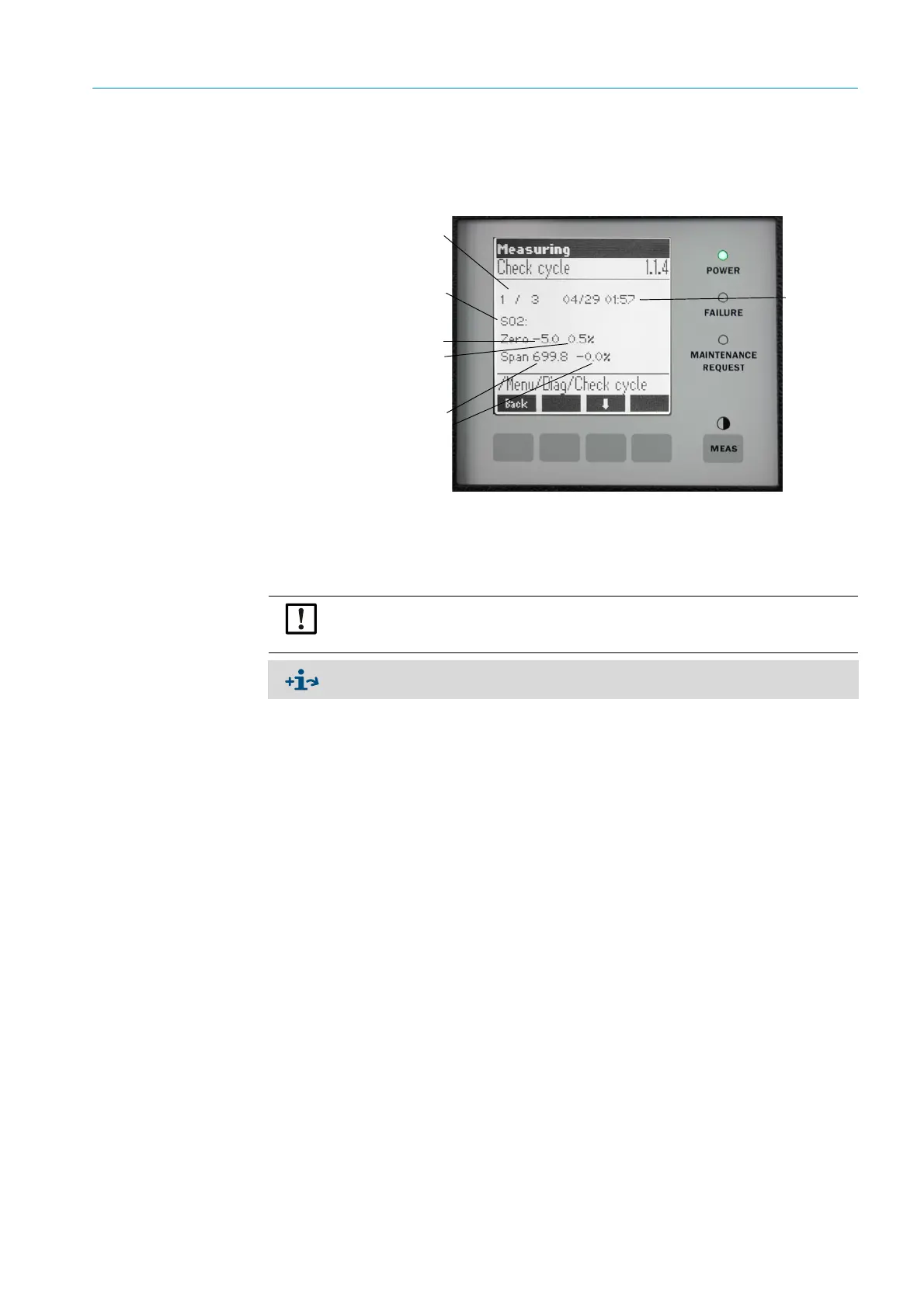

Fig. 30: Check cycle
5.2.5.3 Alignment check (automatic optical alignment check; option)
This menu serves to view the values of automatic optical alignment.
▸ Arrow buttons: Toggle between “deviation” and “performed steps of tracking mirror” dis-
plays.
▸ To exit the Menu item: Press the “Back” button.
Duct displayed
(In the example: Duct 1 of 3;
according to configuration)
Gas component
Zero adjust result
Absolute value (in unit configured)
Deviation ín percentage of FS
1
Span adjust result (70%)
Absolute value (in unit configured)
Deviation ín percentage of FS
1
Date and
time of last
check cycle
1
FS = full scale value:
Scale limit value of the assigned analog output
▸ Perform this check only when the SR-unit is at operating temperature (in operation
for at least 30 minutes).
▸ Automatic mirror adjustment - do not perform manual adjustments.
Further information, see “Adjustments”, page 46.
