39
8012704/YHS4/V2-0/2016-10 | SICK OPERATING INSTRUCTIONS | GM32
Subject to change without notice
START-UP 4
4.14 Installing weatherproof covers (option)
The installation of the weatherproof cover is identical on the sender/receiver unit and the
reflector unit.
The installation of the weatherproof cover on the sender/receiver unit is described below.
Weatherproof cover for reflector unit, see “Weatherproof cover for reflector unit”, page 77.

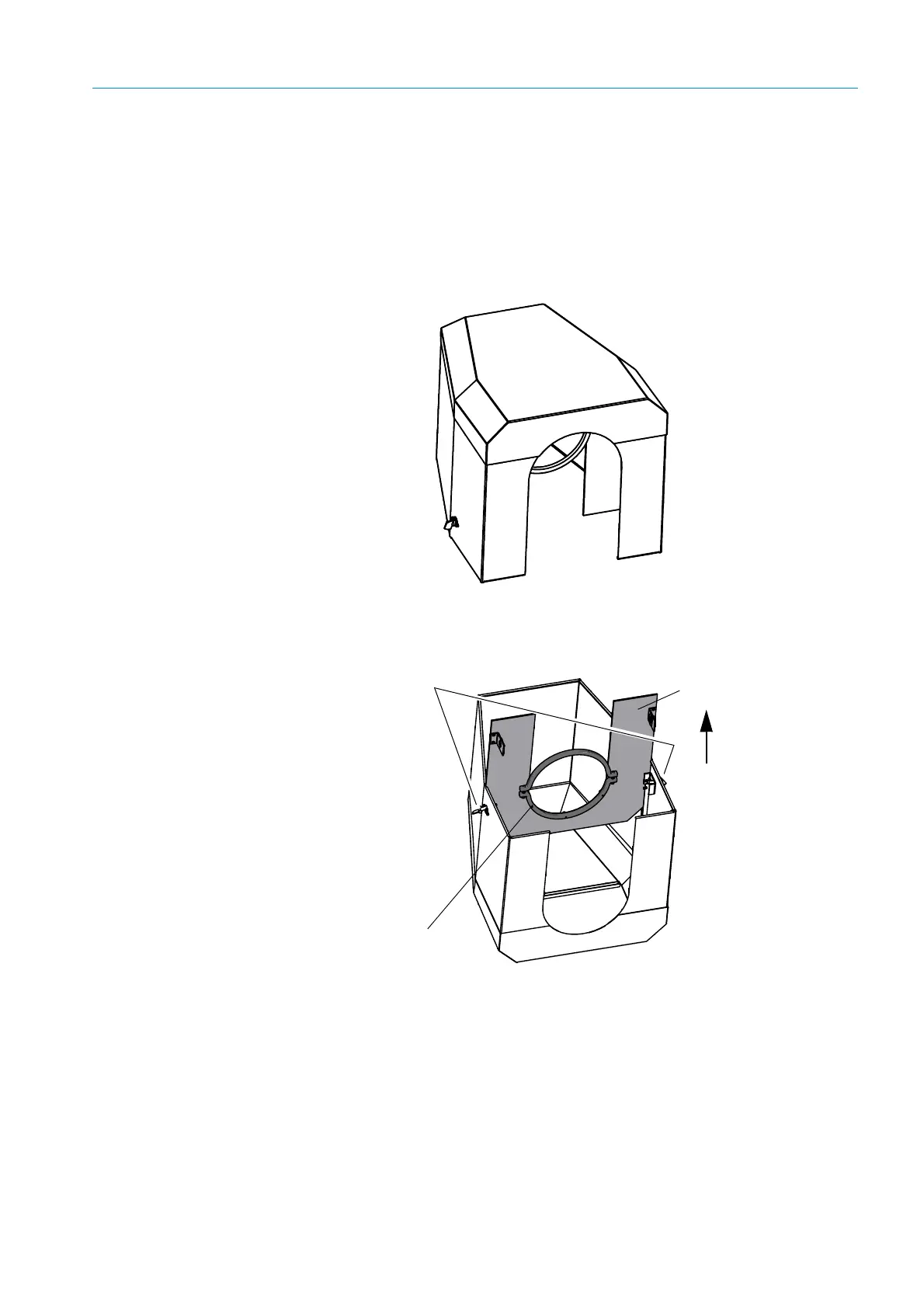

Fig. 25: Weatherproof cover of sender/receiver unit
2 steps are necessary to fit the weatherproof cover:
Fig. 26: Weatherproof cover
1 Install the installation plate on the flange of the purge air fixture.
▸ Lay the weatherproof cover upside down on the floor.
▸ Open and unhinge the locks on both sides.
▸ Pull the installation plate upwards and remove it from the cover.
2 Fit the cover.
Lock
Mounting ring
Installation plate
