OPERATING INSTRUCTIONS | LFP CUBIC 8019918/ZJA6 / 2017-07-20 | SICK AG
Subject to change without notice
16
5 MOUNTING
5.1.2 Installation in a metal immersion tube or metal bypass
D
B

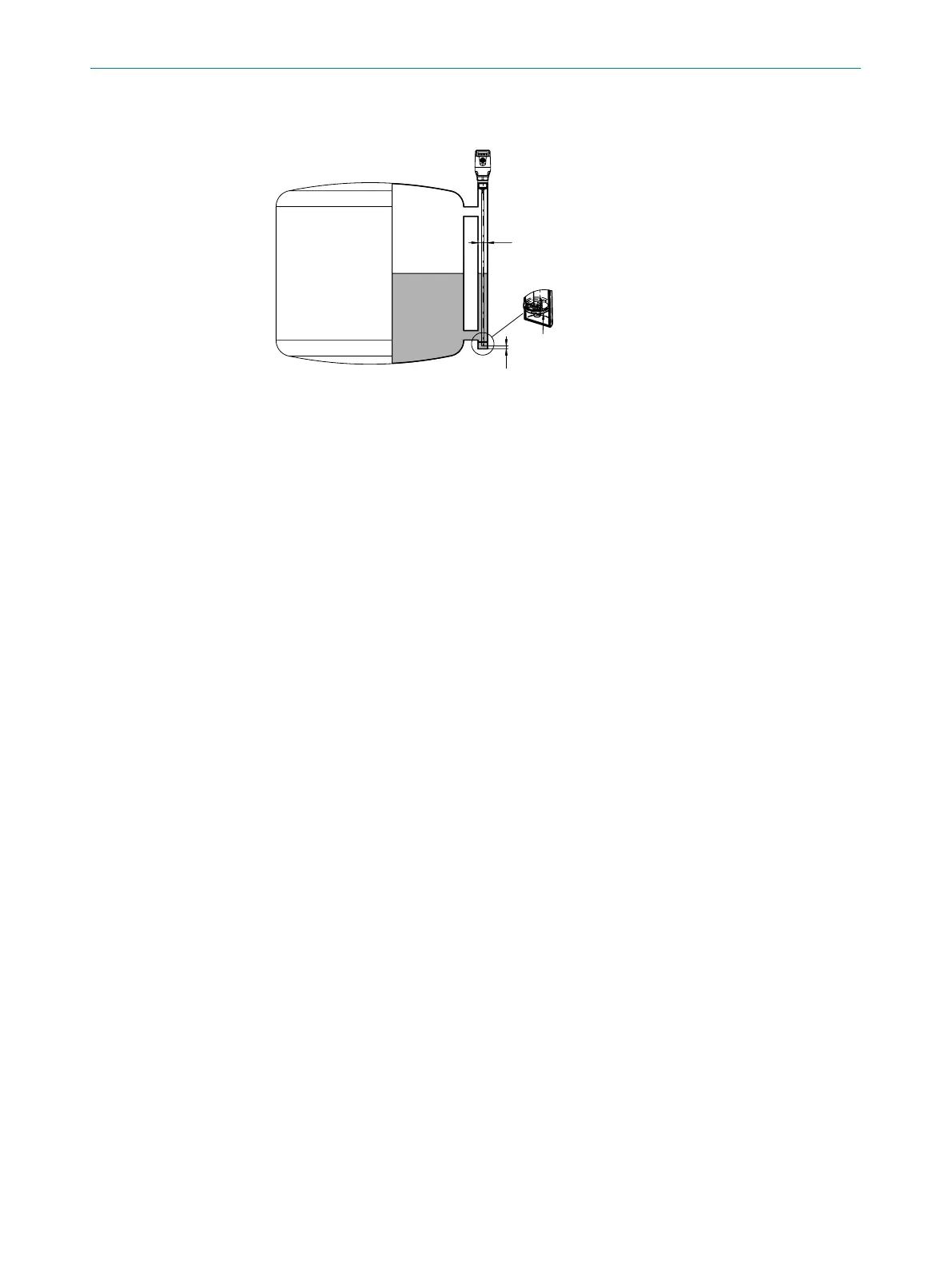

Fig. 3: LFP Cubic
1 Centering
2 D ≥ DN 40
Distance to bypass/container bottom
B ≥ 10 mm
Centering: To prevent contact between the probe and the bypass pipe during
oscillations, the probe should be centered according to its length and depending on the
diameter of the bypass pipe. To do this, it is necessary to insert one or two centering
pieces, see “17 Accessories”.
