OPERATING INSTRUCTIONS | LFP CUBIC 8019918 /ZJA6/ 2017-07-20 | SICK AG
Subject to change without notice
17
5MOUNTING
5.1.3 Rope probe in the metallic container
D
A
MX


F = 250
N
max.

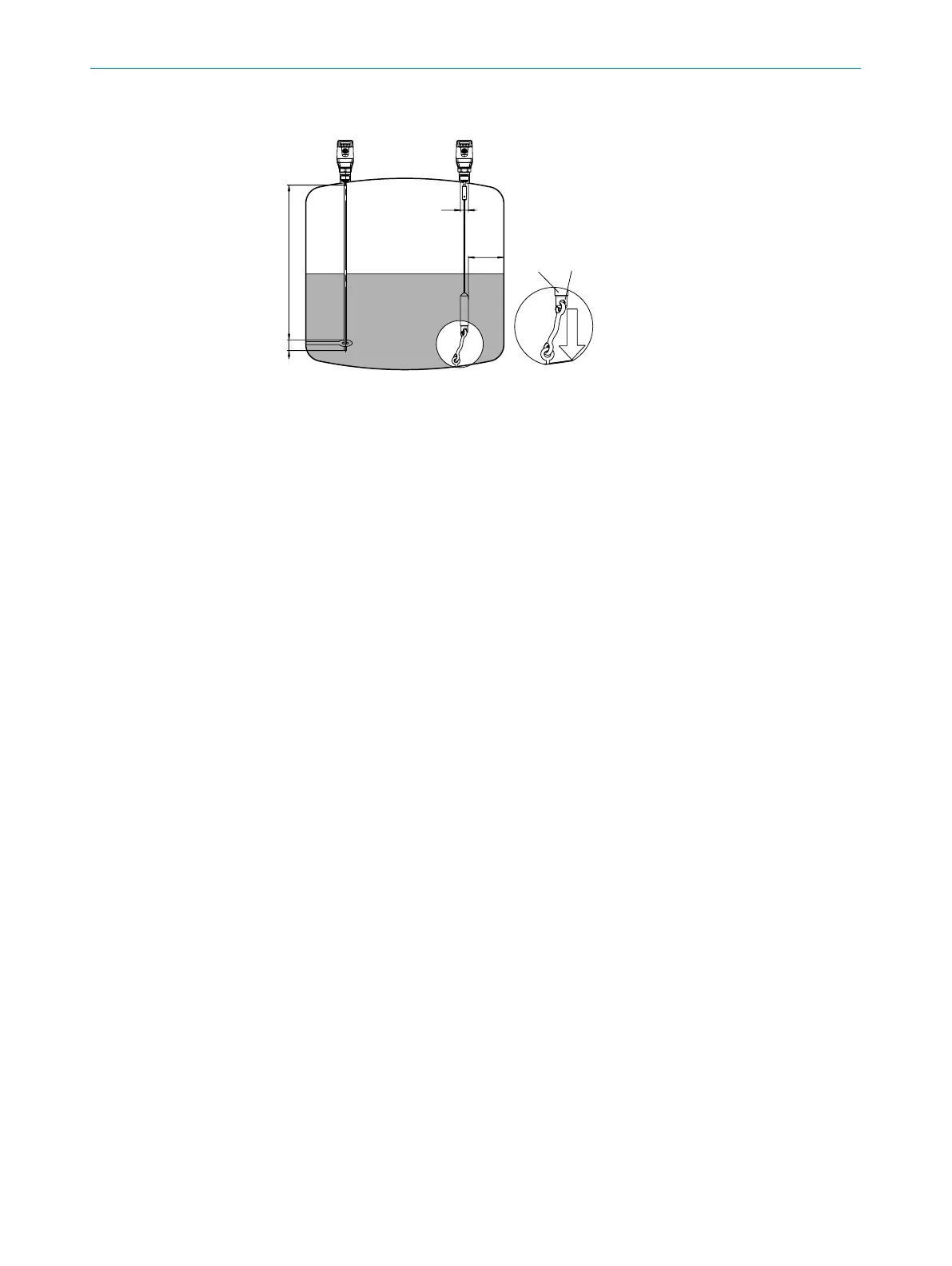

Fig. 4: LFP Cubic
1 Rope weight
2 Bracket rope tension
Installation in the nozzle: D ≥ DN 25
Container wall/container bottom distance: A ≥ 50 mm
Distance from components built into container: ≥ 100 mm
Mounting the mono-probe
M = Measuring range
X = No measurement is possible in this area
Container welding seams may aect the measurement accuracy.
