OPERATING INSTRUCTIONS | LFP CUBIC 8019918 /ZJA6/ 2017-07-20 | SICK AG
Subject to change without notice
31
8OPERATION
8.2.3 N/C output with congurable hysteresis
Applications
• Overll protection
• Full signal
Conguration
1. Congure the Qx switching output as normally closed.
• Set the parameter in the QxMENU-OUx menu to Qx_Hnc.
2. Set the switching point.
• Set the value in the QxMENU-SPx menu to the level in mm (e.g. 500 mm).
3. Set the reset point.
• Set the value in the QxMENU-RPx menu to the level in mm (e.g. 450 mm).
4. Select the electrical property (NPN/PNP/DRV (push/pull))
Select the parameter in the QxMENU-TYPx menu.
The following rules apply:
• Qx-PNP = Switching output in PNP circuit
• Qx-NPN = Switching output in NPN circuit
• Qx-Drv = Switching output in push/pull function

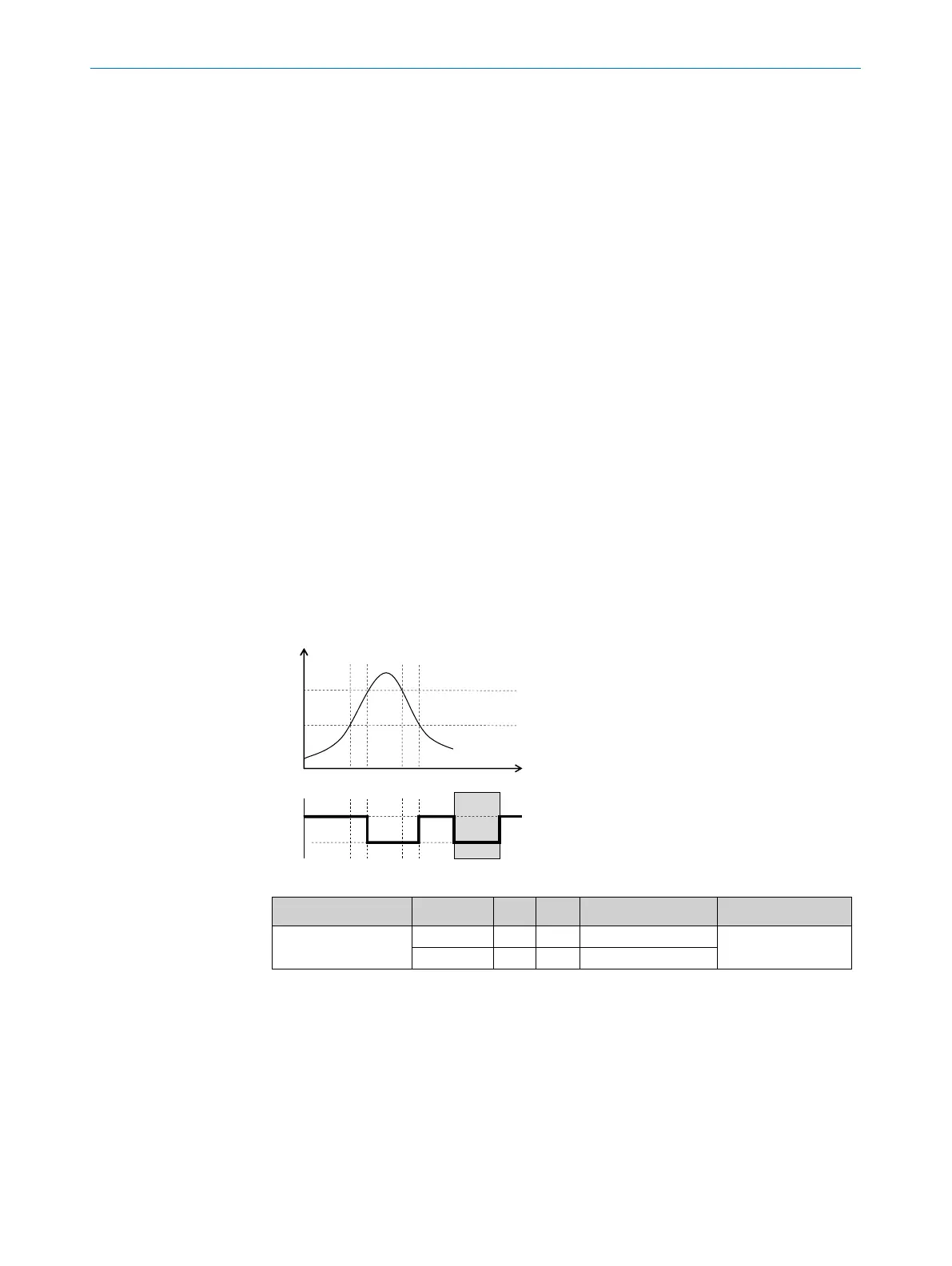

Switching output behavior
Level
t
SP
RP
Active
Inactive
Error signal
Switching output PNP NPN DRV Error status
Normally closed/
HNC
active U
v
0 V U
v
(PNP switched) inactive
inactive 0 V
1)
U
v
2)
0 V (NPN switched)
1)
Pulldown only.
2)
Pullup only.
