8.4.13 Setting the oset
This setting makes it possible to indicate the level value on the display in relation to
the tank bottom instead of the end of the probe. The actual container level is then
indicated on the display.
Conguration
1. Log in to expert mode; see “8.4.1 Expert mode”.
2. Set the oset in the EXPRT-Cong-Oset menu (0 mm … +3,000 mm).
O
L


IA
IAE
M

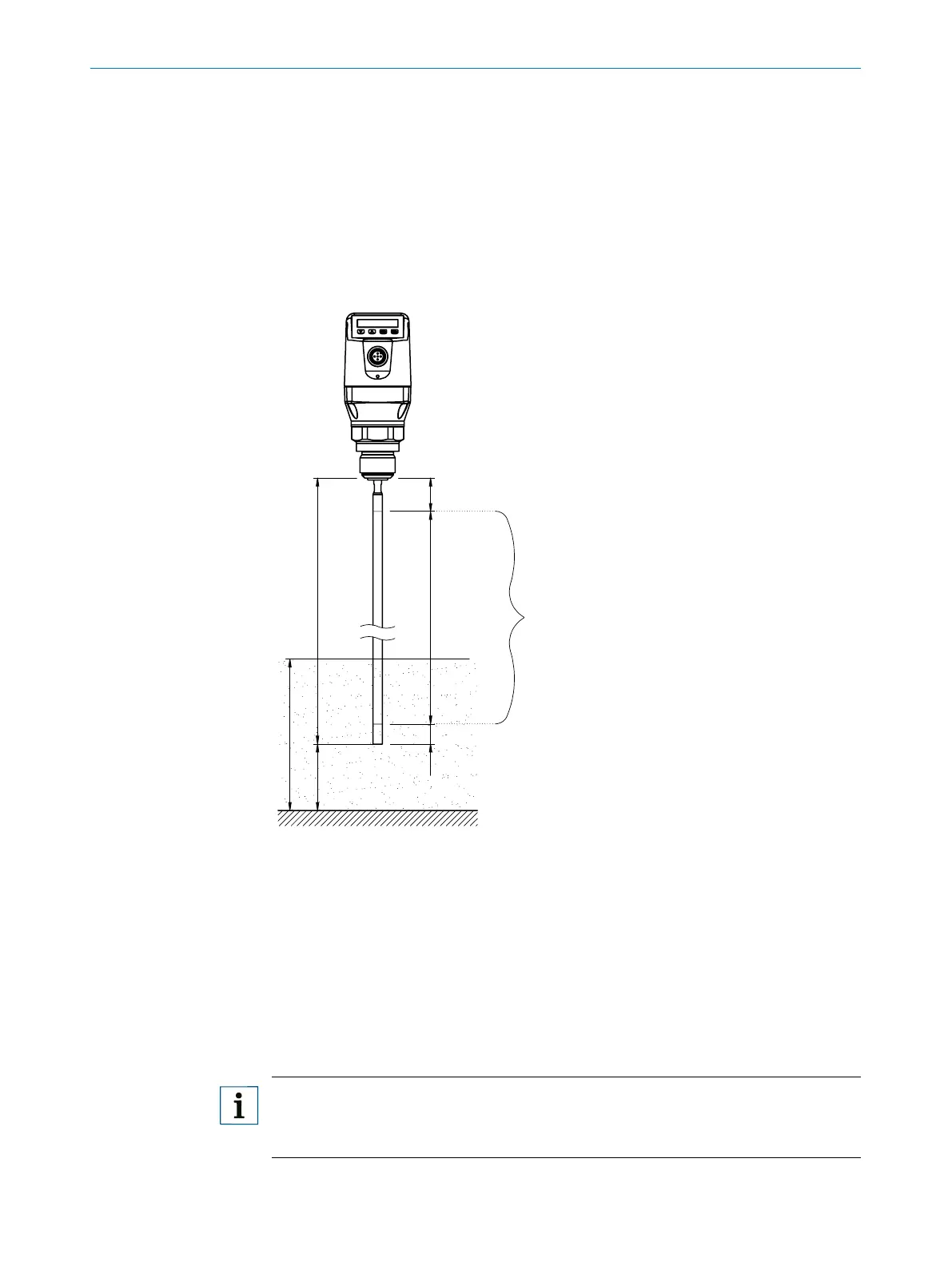

Fig. 8: LFP Cubic
1 Level
2 QALOW/ QAHIGH
SPx/RPx
FHx/FI x
Can be set only in this zone
O: Oset
L: Probe length
M: Measurement length
IA: Inactive area at process connection
IAE: Inactive area at probe end
Note:
If the oset parameter is changed, the SPx/RPx/FLx/FHx/QALOW/QAHIGH parameters
are automatically adjusted.
