OPERATING INSTRUCTIONS | LFP CUBIC 8019918/ZJA6 / 2017-07-20 | SICK AG
Subject to change without notice
20
5 MOUNTING

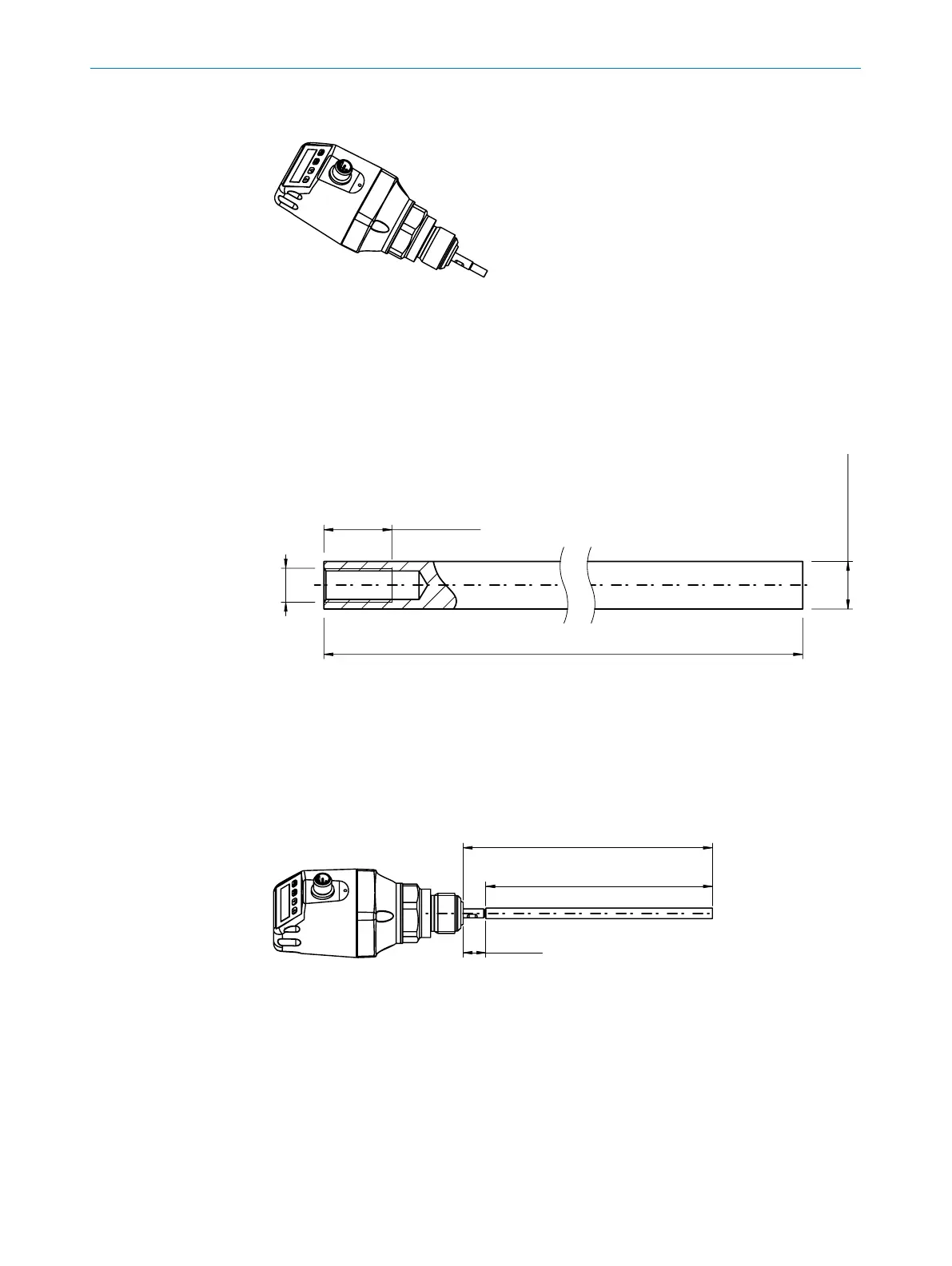

5.4 Mounting the probe rod
With the LFP Cubic, the probe rod can be modied by the customer. The specications
for the probe rod should be as follows:
Probe rod diameter: 7 mm … 8 mm
Female thread on the probe rod: M5
Female thread length: min. 10 mm
Material: Stainless steel
M5
min. 10 (0.39)
Ø 7...8 mm
( Ø 0.27... 0.31)
1 Probe rod length
Total probe length: 100 mm … 4000 mm
Total probe length = 15 mm + probe rod length
Set the total probe length as described in Chapter “8.4.7 Conguring the probe length”.
The EXPRT-Cong-Length menu is password protected. If the system experiences strong
vibrations, secure the probe with thread-locking lacquer.
100 (3.94) ... 4000 (157.48)
15 (0.59)
1 Total probe length
2 Probe rod length
