Operation
Subject to change without notice

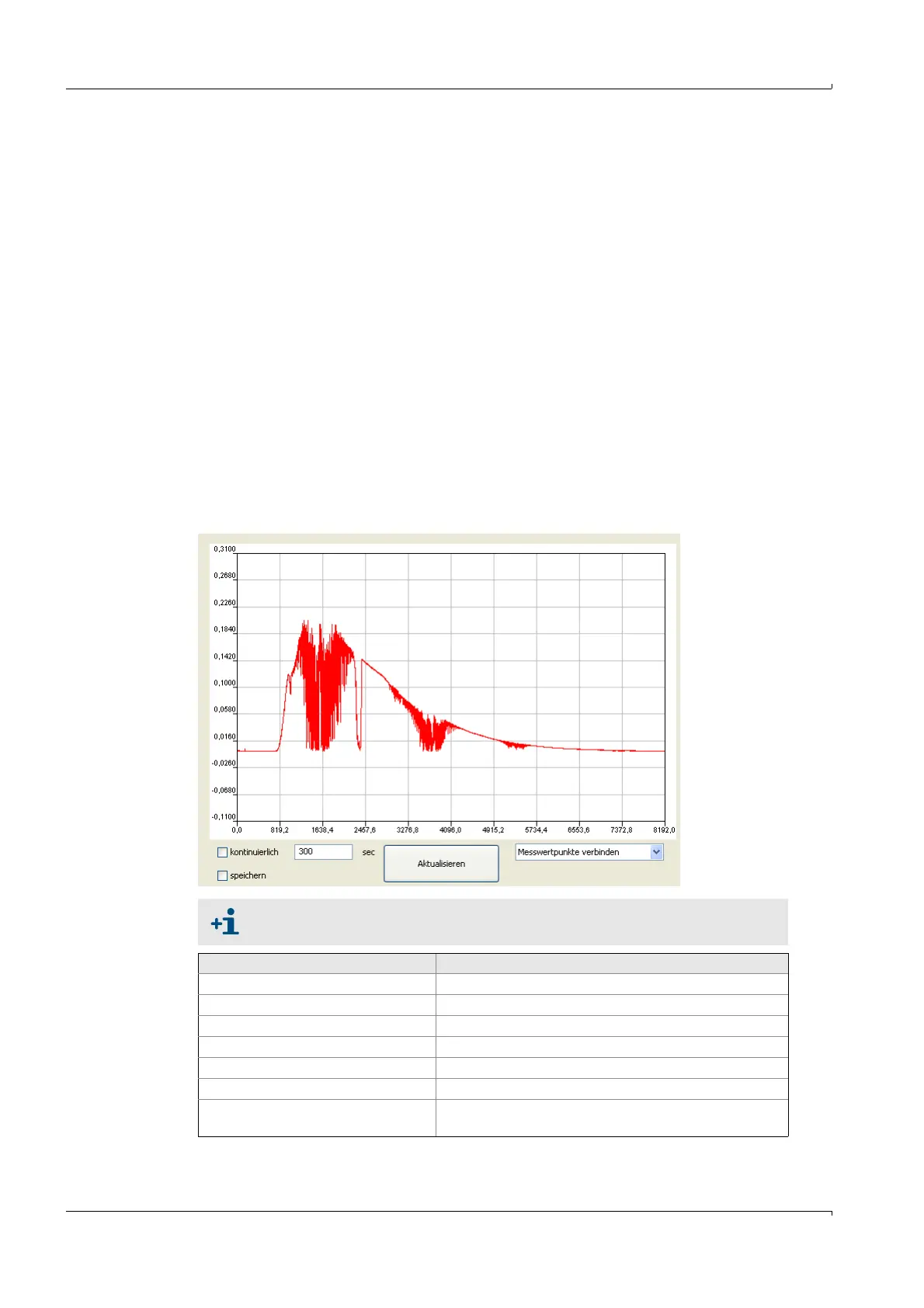

Spectra (only in SOPAS ET)
Menu: MCS100FT/Diagnosis/Sensor Values/Spectra
Various spectra can be viewed in this menu.
● Reference spectrum
Single-channel performance spectrum for zero gas feeding.
This spectrum is saved after every zero adjustment
● Measurement spectrum
Single-channel performance spectrum for sample gas feeding.
This spectrum is continuously updated during measurement
● Zero gas absorbance spectrum
This spectrum is the absorbance spectrum of the zero gas.
Zero gas is fed as sample gas.
● Absorbance spectrum without baseline correction
● Absorbance spectrum
Click two points in the spectrum to zoom sections of the spectrum.
Designation Significance
Ordinate Performance [absorbance]
Abscissa Wave number [cm
-1
]
Continuous The displayed spectrum is continuously refreshed.
Time Time interval of continuous display.
Save Save spectrum.
Refresh Refresh spectrum.
Connect measured points
Show individual measured points
Connect measured points (line display)
Show individual measured points.
Absorbancespectrum
Referenzcespectrum
Measurementspectrum
-------------------------------------------------------------log=
Absorbancespectrum
Referencespectrum
Measurementspectrum
-------------------------------------------------------------log


Baseline=
