Clinitek Advantus Operator’s Guide 11
Overview and Intended
Use
When testing is complete, an internal thermal printer prints the test results.

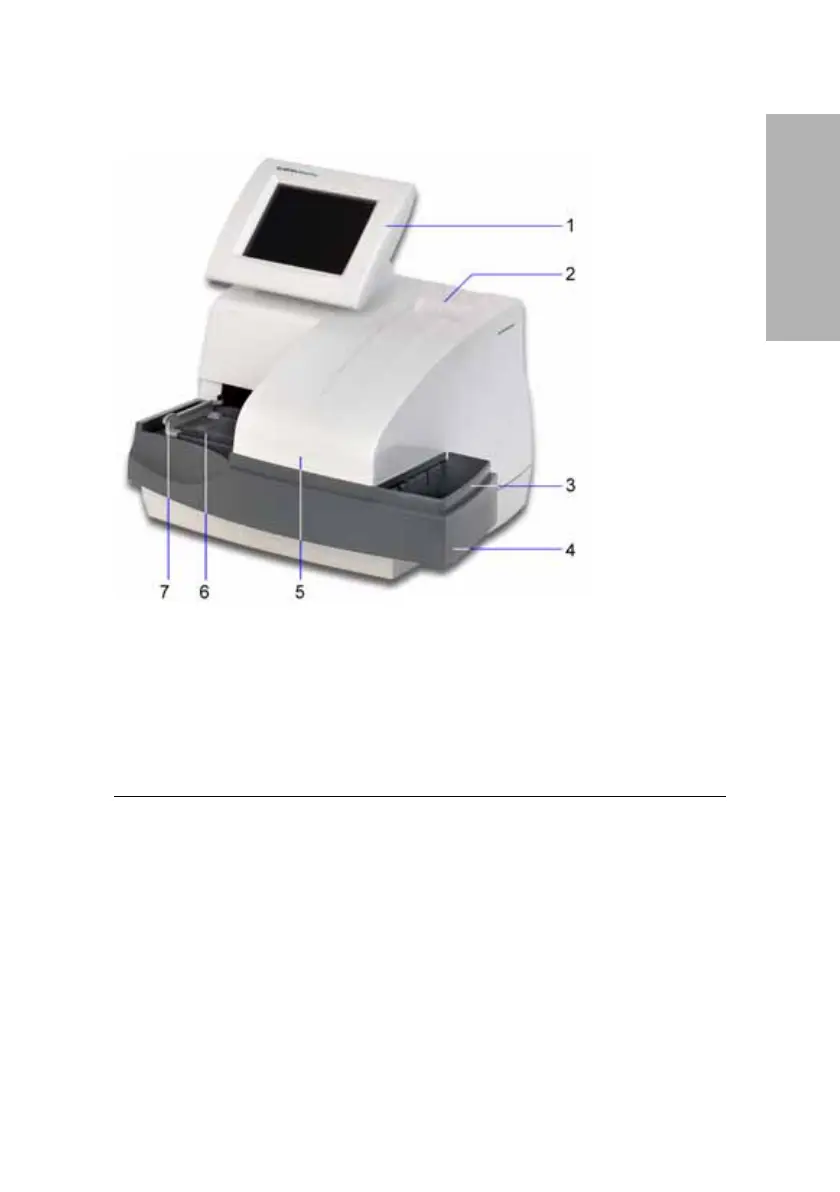

Figure 2 User Interface, Testing and Printing Areas
Connections and Power
The line cord is connected into the line cord receptacle. Turn the analyzer on
by pressing the power switch to the on position. You can connect a computer,
printer, ethernet connection, keyboard, and handheld barcode reader to the
analyzer using the interface connectors.
1
Display
2
Printer
3
Waste bin
4
Fixed platform
5
Incubation/read station
6
Strip loading station
7
Push bar
