80 Clinitek Advantus Operator’s Guide
System Configuration
Installing Connections

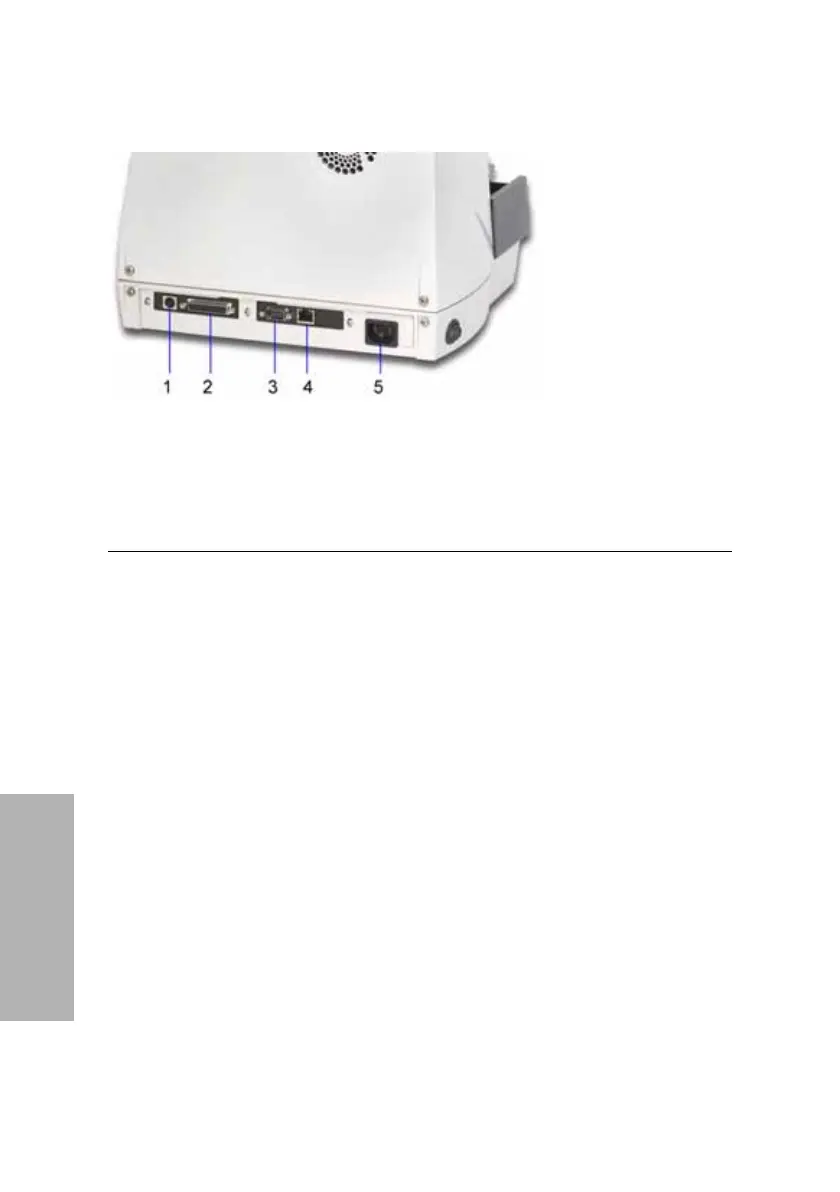

Figure 29 Analyzer Connections
Connect the Analyzer Power
1. Ensure that the analyzer power switch is in the off position.
2. Select the correct power cord for your use.
Two power cords are packed with the analyzer.
3. Connect the power cord to the analyzer and to an appropriate, grounded
AC electrical outlet.
4. Dispose of the other power cord.
Connect to a Printer
You can use most 80-column, continuous feed printers or the Clinitek Form
Printer with the Clinitek Advantus analyzer.
Some printers include an interface cable that can connect to the printer port on
the back of the analyzer. If not, you need to obtain the cable separately. Refer
to Appendix G, Computer and Printer Interface, for the pin specifications for the
male connector. The requirements for the other end of the cable depend on the
printer. Appropriate cables are available at most retail computer stores.
1. Connect the appropriate end of the interface cable to the 25-pin printer port
on the Clinitek Advantus analyzer.
1
Keyboard and barcode reader interface connector
2
Printer interface connector
3
Serial interface connector
4
Ethernet interface connector
5
Line cord receptacle
