52 Clinitek Advantus Operator’s Guide
Maintenance
6. Unsnap the connector by lifting up on both sides of the top plate.
The plate raises by about 2 mm (1/16 in).
7. Gently pull the interface cable from the connector.
You may need to wiggle the cable slightly to loosen it.

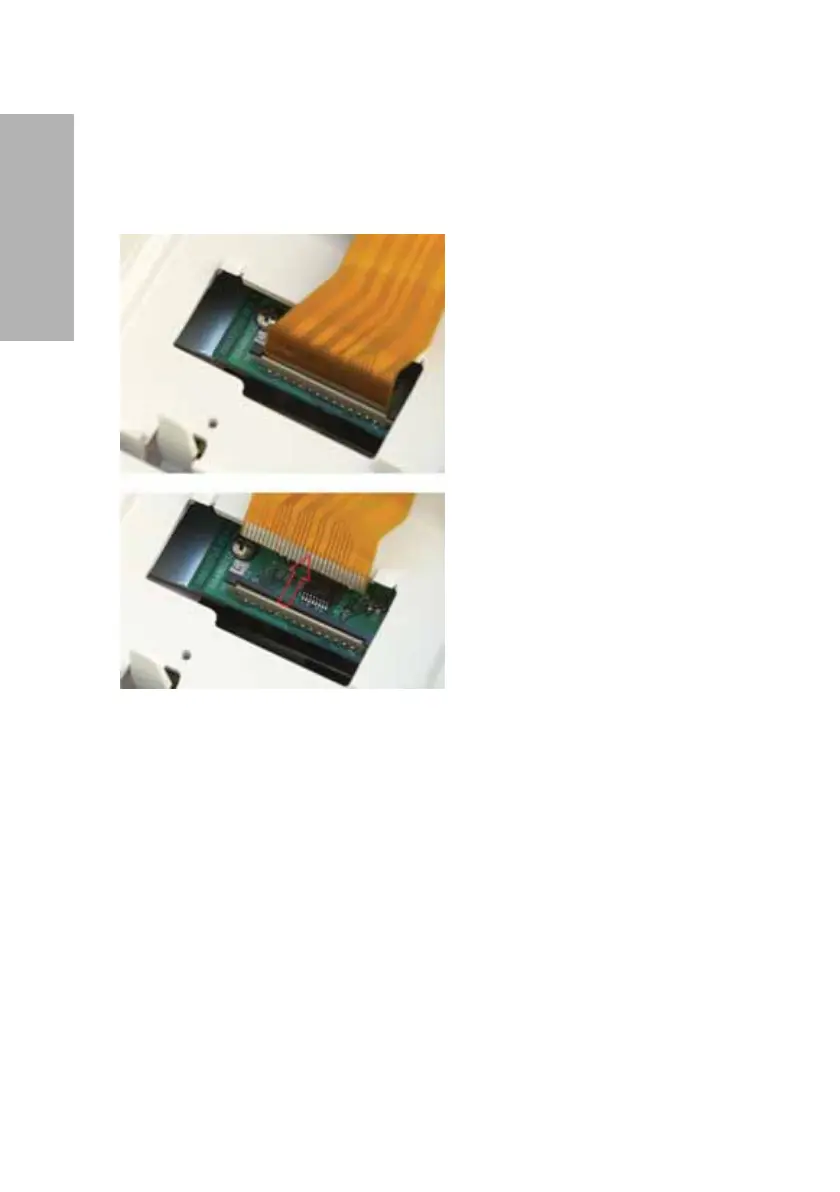

Figure 19 Remove the Interface Cable

Siemens Clinitek Advantus Specifications

General

Test Types	Urinalysis
Interface	RS-232, USB
Calibration	Automatic calibration
Measurement Principle	Reflectance photometry
Sample Type	Urine
Power Supply	100-240 VAC, 50/60 Hz
Type	Urine analyzer
Display	Touchscreen
Reagent Type	Test strips
Measurement Parameters	Glucose, Bilirubin, Ketone, Specific Gravity, Blood, pH, Protein, Urobilinogen, Nitrite, Leukocytes
