6.5 Resetting telegrams
With the command "Reset telegrams" in the properties of SINAMICS Integrated (or an NX
module), you can reset the telegram configuration in the TIA Portal to the standard telegram
configuration (Page 116).
All telegrams in the device are deleted.
Note
Settings that deviate from the standard telegram configuration (e.g. additional telegrams) are
deleted
If you reset the telegram configuration, settings that have been added retrospectively or user-
specific settings are lost (e.g. added drive objects, telegrams, or changed I/O addresses).
After resetting you can, of course, customize (Page 121) the telegram configuration again.
As long as the project has not been saved, you can undo the resetting of the telegrams together
with the changed settings: Click "Undo" in the toolbar.
Procedure
In order to reset the telegram configuration of SINAMICS Integrated or an NX module, proceed
as follows:
1. Select the device in the device view:
– To reset the telegrams of SINAMICS Integrated, select SINAMICS Integrated.
– To reset the telegrams of an NX, select the NX.

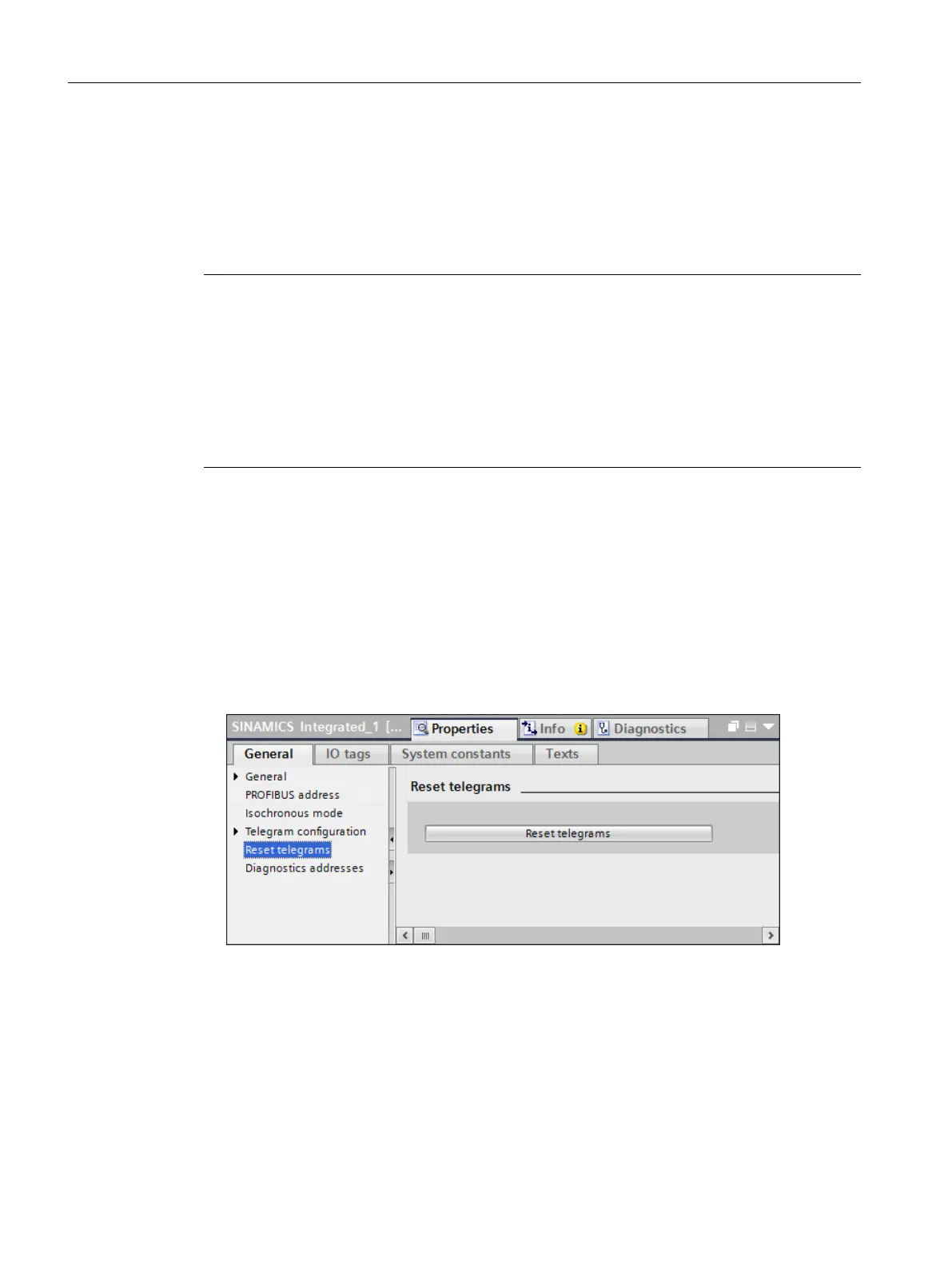

2. In the inspector window, click "Reset telegrams" under "Properties > General".
3. Click the "Reset telegrams" button and confirm the confirmation message with "Yes".
Result
The existing telegrams were deleted and the standard telegram configuration (Page 116)
inserted.
As many drive objects (including appropriately configured telegrams) were automatically
inserted as are supported by the corresponding SINAMICS Integrated or the NX module drives.
Configuring telegrams and drive units
6.5 Resetting telegrams
SINUMERIK STEP 7 Toolbox V15.1
120 Configuration Manual, 12/2018, A5E46279635B AA
