5.4 Configuring PROFINET
Procedure
In order to set the PROFINET interface, proceed as follows:
1. In the network view, click the PLC in the basic rack of the NCU.

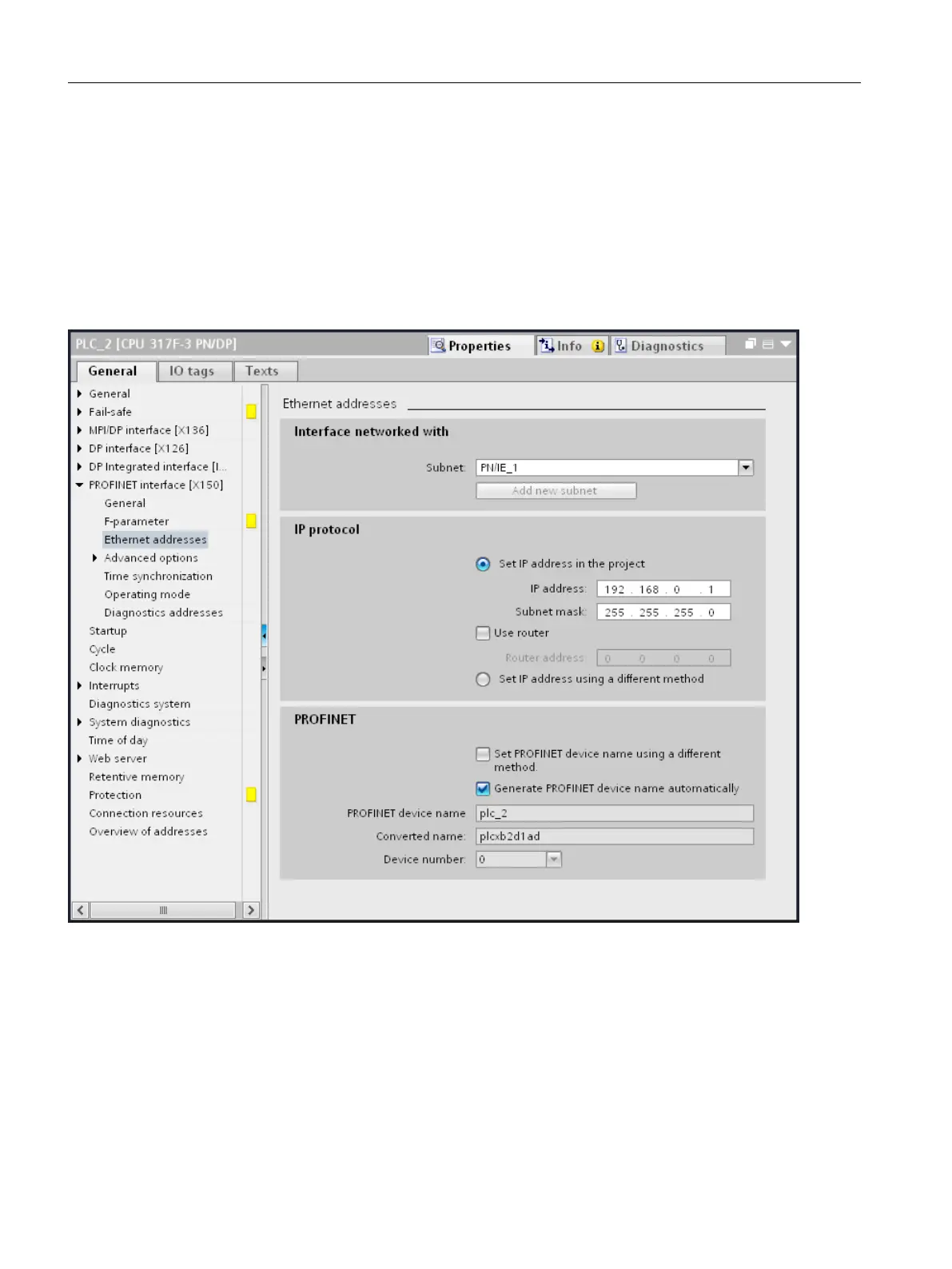

2. Under the "Properties" tab in the inspector window, select the "PROFINET interface >
Ethernet addresses" entry.
3. Check under "IP protocol" whether the correct IP address is set ("192.168.0.1" in the
example).
Configuring networks
5.4 Configuring PROFINET
SINUMERIK STEP 7 Toolbox V15.1
96 Configuration Manual, 12/2018, A5E46279635B AA
