10.8 Configuring Safety Integrated plus (F-PLC)
10.8.1 Introduction
New safety functions are available in the SINUMERIK TIA Portal Toolbox with the Safety
Integrated plus (F-PLC) mode.
The following safety functions are used in the SINUMERIK Integrated plus (F-PLC) mode:
● Use of PROFIsafe telegrams for SINAMICS Integrated or connected NX modules
● Programming of F-blocks with F-logic via the editors for F-FBD or F-LAD
● Handling of configurations and the F-library in the same way as with SIMATIC F-CPUs
● Configuration via the Safety Administration Editor (see below)
Safety Administration Editor

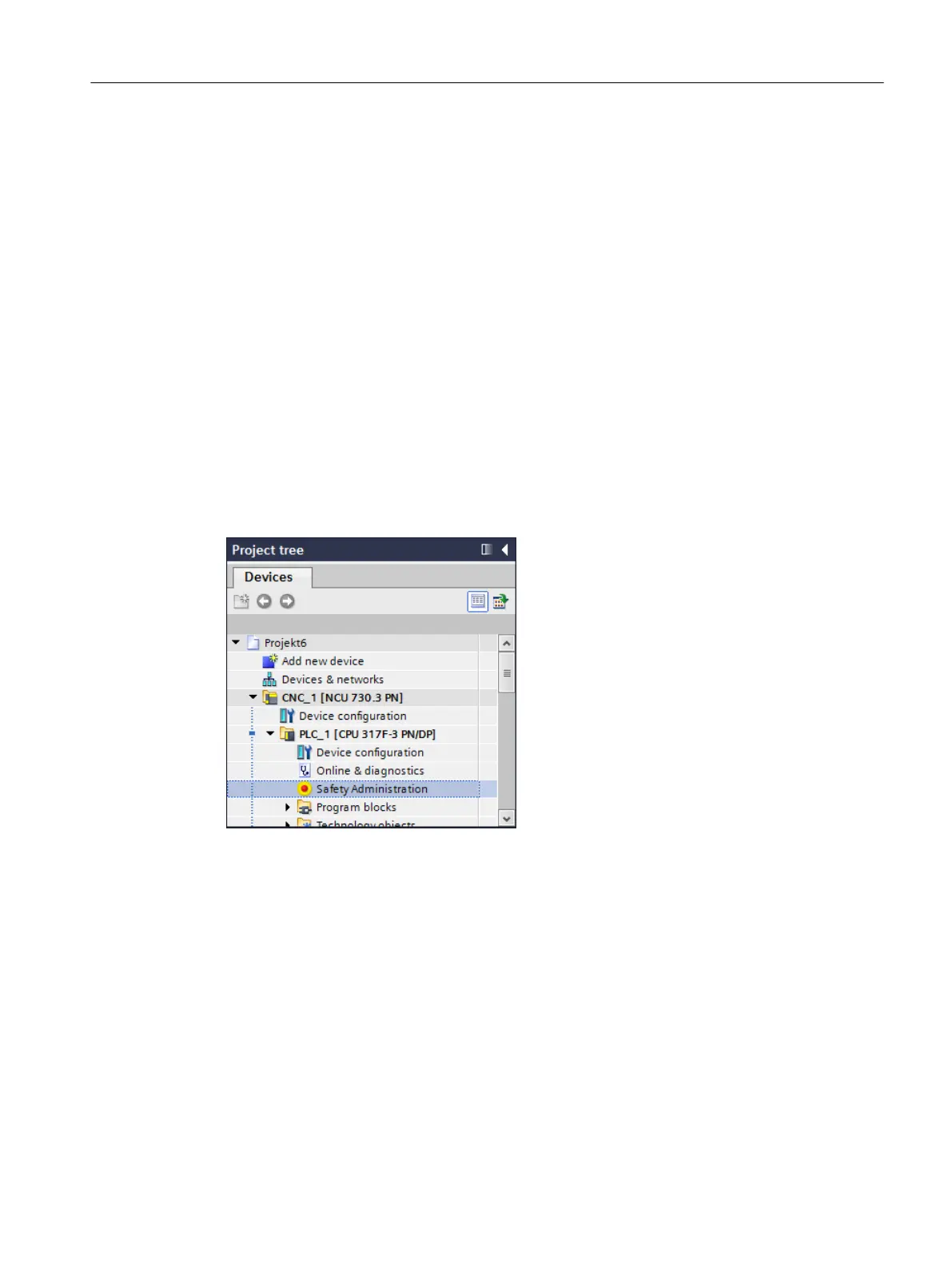

In the SINUMERIK Safety Integrated plus (F-PLC) mode, the "Safety Administration Editor" is
also available in the project tree.
It supports the following tasks:
● Display of the safety program status
● Display of the F-collective signature
● Display of the safety mode status
● Creation/organization of F-runtime groups
● Display of information on the F-blocks
● Definition/change of the access protection
● Definition/change of the general settings for the safety program
The Safety Administration Editor is divided into the following sections:
● General
● F-runtime groups
Safety configuration
10.8 Configuring Safety Integrated plus (F-PLC)
SINUMERIK STEP 7 Toolbox V15.1
Configuration Manual, 12/2018, A5E46279635B AA 201
