3.1.2 Insert NCU
Requirement
● A project is open in the TIA Portal.
Procedure
To insert a SINUMERIK NCU in the project view, proceed as follows:
1. Click "Add new device" in the project navigation.
2. Click the "Controllers" button.
3. In the folder structure under "Controllers", expand the corresponding SINUMERIK device
family (e.g. SINUMERIK 840D sl) and required NCU and select these.

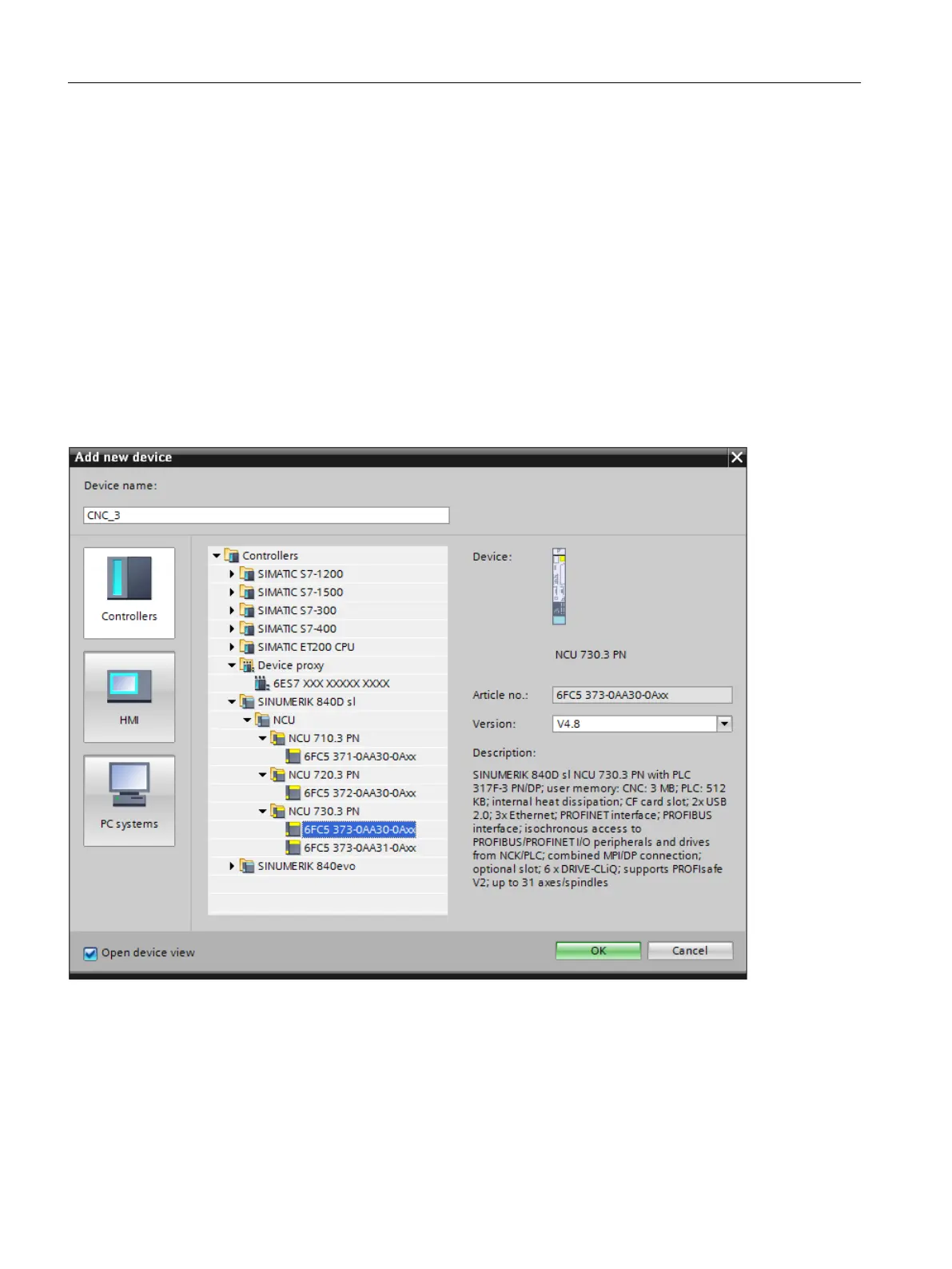

Figure 3-1 Selected NCU using the SINUMERIK 840D sl NCU 730.3 PN V4.8 as an example
4. Select the firmware version that matches the envisaged firmware version of the real NCU in
the "Version" drop-down list.
5. Confirm your selection with "OK".
Configuring the NCU
3.1 SINUMERIK NCU
SINUMERIK STEP 7 Toolbox V15.1
26 Configuration Manual, 12/2018, A5E46279635B AA
