Procedure
Proceed as follows to insert a PP72/48 I/O module:
1.
In the hardware catalog, navigate to the respective device:
– PP72/48 (PROFIBUS): "Further field devices > PROFIBUS DP > NC/RC > SIEMENS
AG > MOTION CONTROL"
– PP72/48 (PROFINET): "Further field devices > PROFINET IO > I/O > SIEMENS AG >
SINUMERIK > PP72/48"

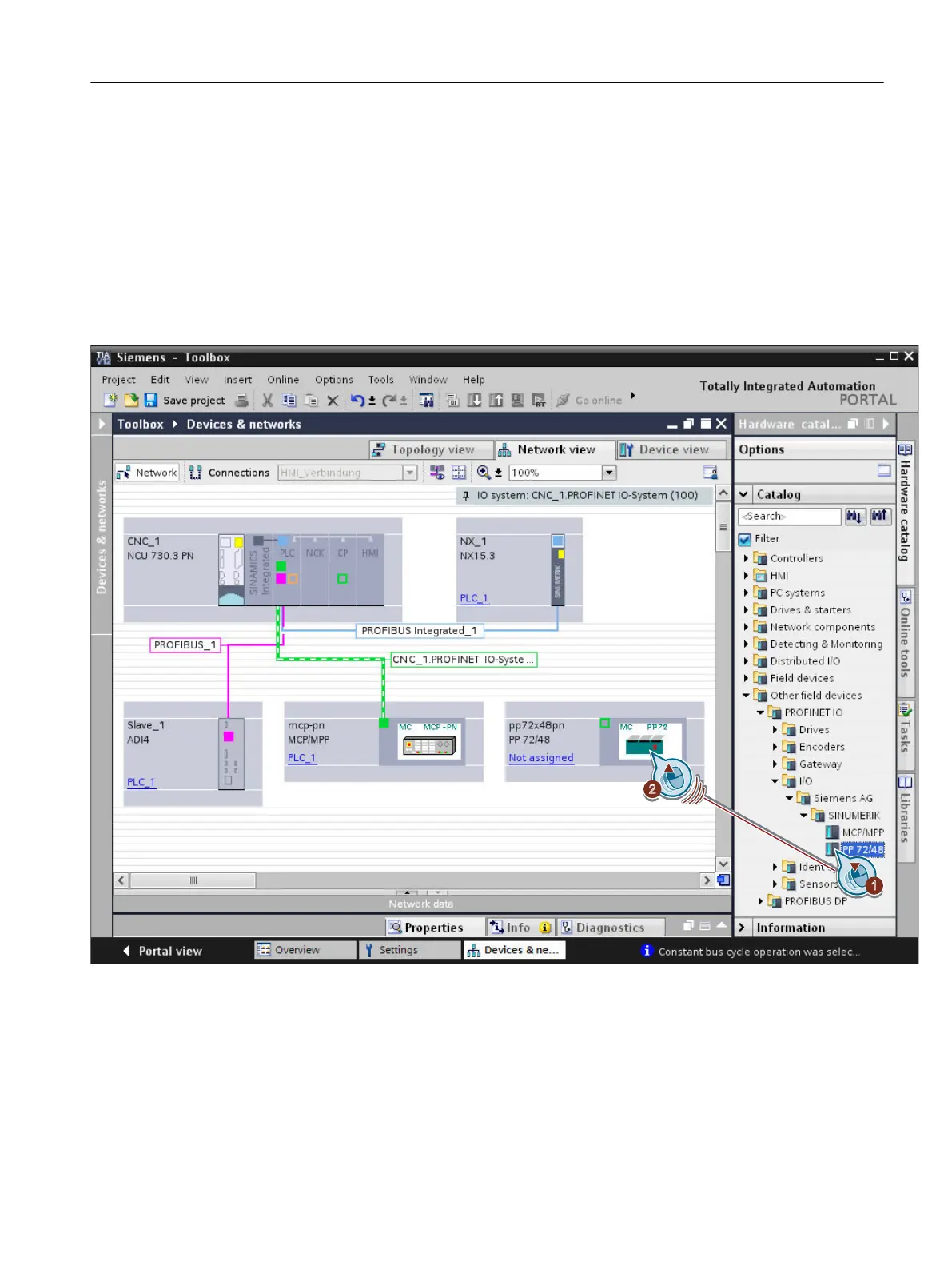

2. Use drag-and-drop to move the PP72/48 from the hardware catalog to the network view.
3. Interconnect the inserted SINUMERIK I/O with the NCU.
See TIA Portal online help, search term "Interconnect devices in the network view"
Configuring I/O
7.3 Inserting the SINUMERIK I/O module PP72/48
