Refer to the "Change Safety Integrated mode" dialog or the "Info" inspector window to see
which I/O addresses are effected.
● The
"Change Safety Integrated mode" dialog shows the components for which the default
I/O addresses are assigned.

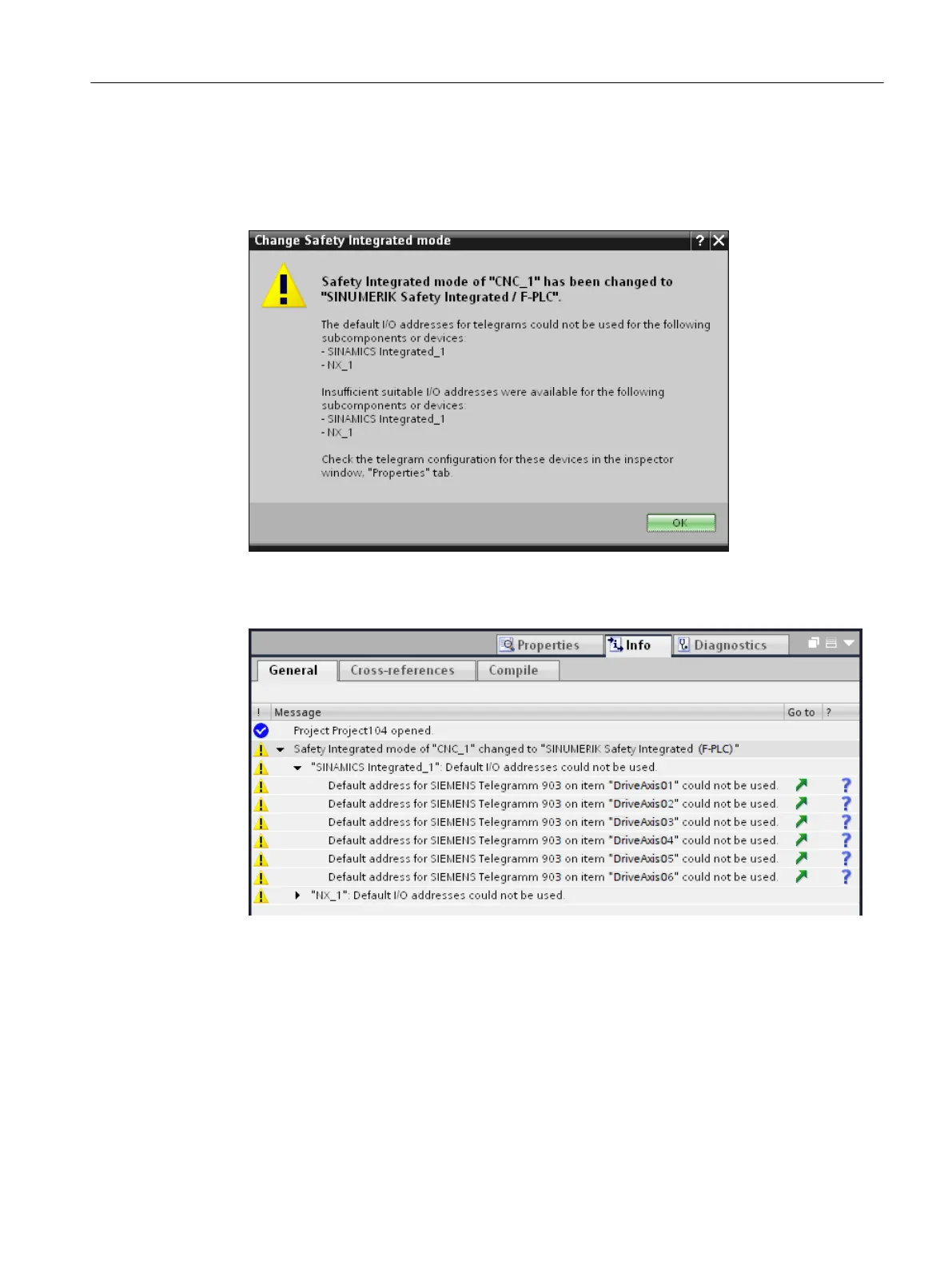

Figure 10-7 "Change Safety Integrated mode" dialog: Default I/O addresses are not available
● The
"Info" inspector window shows which default I/O addresses were already assigned for
each individual telegram.
Figure 10-8 You can click the symbol in the "Go to" column in the "Info > General" inspector window
to display the relevant I/O address.
● You
can also display an overview of the telegram settings by clicking "Address overview" in
the PLC properties.
Safety configuration
10.5 Availability of I/O addresses at the mode change
SINUMERIK STEP 7 Toolbox V15.1
Configuration Manual, 12/2018, A5E46279635B AA 183
