4. To connect the NX module with a master system, click "Not assigned" and select the master
system.
Note
Connection to DP Integrated
Note that the NX modules can only be connected to the DP Integrated of a SINUMERIK
NCU, and not to external PROFIBUS interfaces!

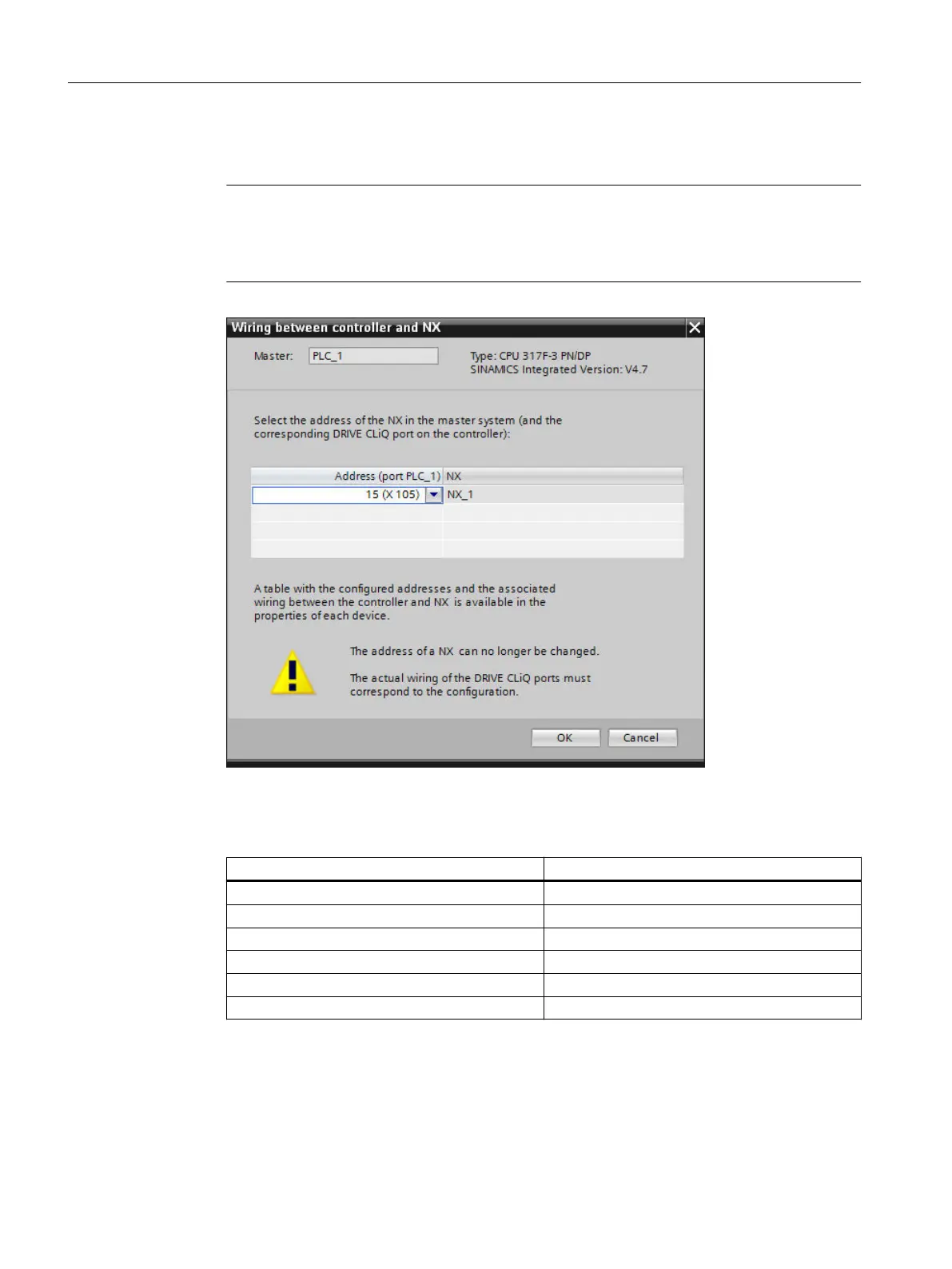

The NX is connected with the NCU and the "Wiring between control and NX" dialog opens.
5. In the "Wiring between control and NX" dialog, select the DP address of the NX in the master
system that matches your real wiring. The DP addresses of the NX modules are
permanently assigned to the DRIVE-CLiQ sockets of the NCU.
DP address of the NX in the master system DRIVE-CLiQ socket on the NCU
10 X100
11 X101
12 X102
13 X103
14 X104
15 X105
Configuring the NCU
3.2 Insert NX module
SINUMERIK STEP 7 Toolbox V15.1
30 Configuration Manual, 12/2018, A5E46279635B AA
