– Copying specific PLC basic program blocks

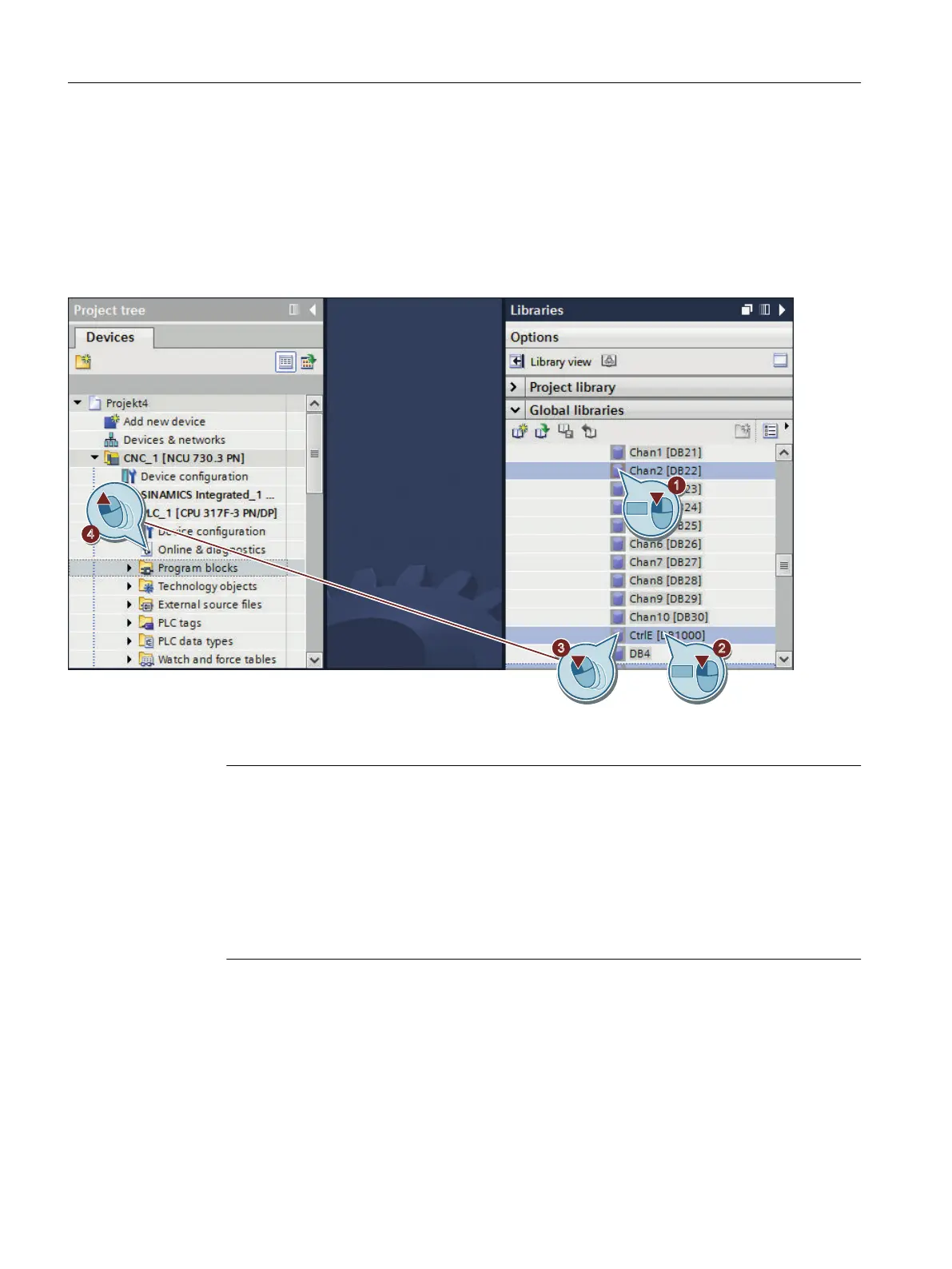

Open the master copies folder and, if applicable, other lower-level folders and manually
define the blocks which you would like to copy by selecting them and then dragging and
dropping them into the program blocks folder.
To select successive objects, click on the first object, press and hold the Shift key and
then click on the last object.
To select non-successive objects, press and hold the Ctrl key and click on the objects
one-by-one.
The blocks are copied to your project. If applicable, the "Conflicts during copying"
(Page 74) dialog is displayed.
Note
Copy further required blocks separately (e.g. DB2 variant "ExtendAlMsg=True")
If you are using PLC basic program blocks that are not contained in the master copies folder
"840D sl Basic Program > 840D sl PLC BP", you must copy them separately:
● DB2 variant "ExtendAlMsg=True" from the master copies folder
"ALMSG_DB_ExtendAlMsg"
● Different external STL sources from the master copies folder "External source files"
See: Using copy templates (Page 58)Create blocks from external sources (Page 84)
4. In the project tree, right-click "Program blocks" and select the "Software (compile all blocks)"
command in the "Compile" shortcut menu.
Programming the PLC
4.3 Adding the PLC basic program
SINUMERIK STEP 7 Toolbox V15.1
72 Configuration Manual, 12/2018, A5E46279635B AA
