92 RM400 C Models U24802-J-Z146-2-7600
7
Software
Configuring a graphical monitor

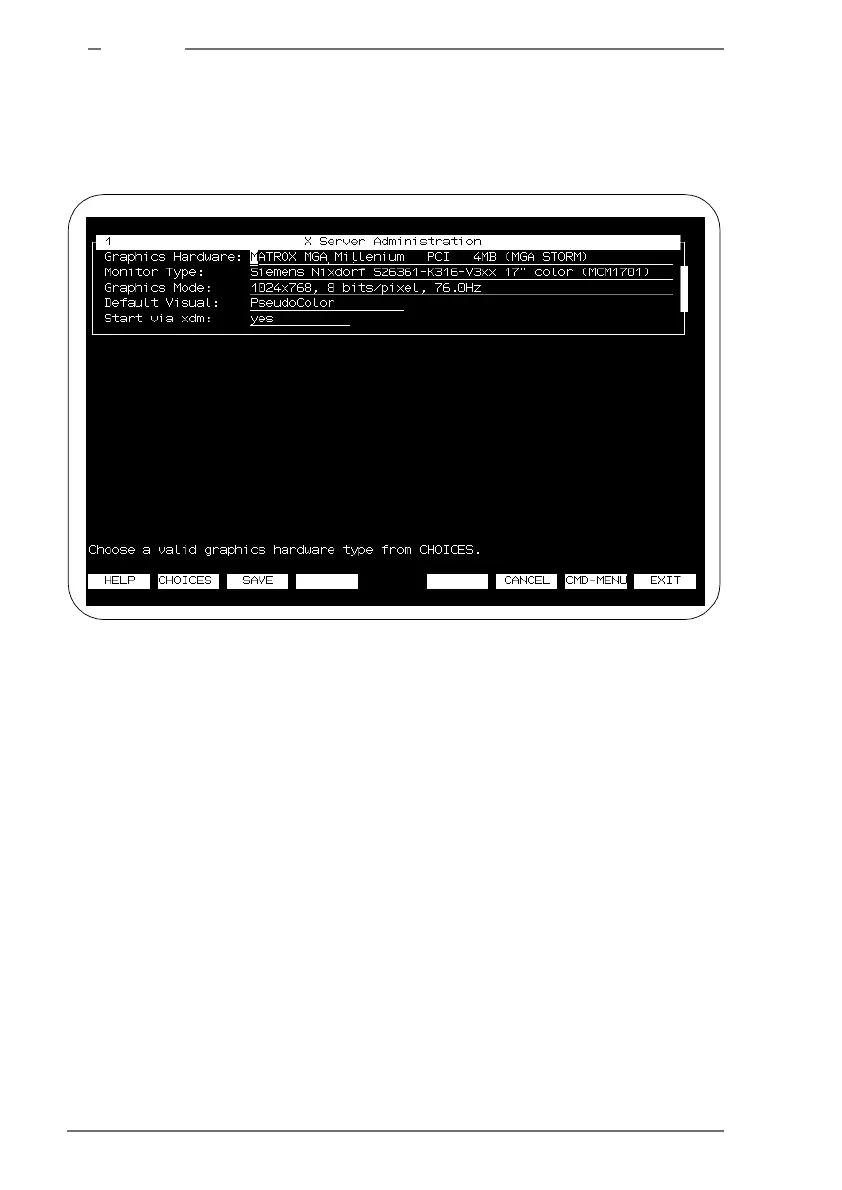

Example of how to configure the graphical monitor under SINIX V5.42:
Information on the parameters:
Graphics Hardware If you have not installed an additional graphics controller,
select an onboard graphics controller (Cirrus Alpine). If you
have installed an additional graphics controller, select an
onboard graphics controller of the type Millinenium.
Press the
[CHOICES] function key and select a module.
Monitor Type See the type label on the graphical monitor.
Press the
[CHOICES] function key
