Installing peripherals
5
U24802-J-Z146-2-7600 RM400 C Models 49
Dokuschablonen Version 3.2 vom 25.10.93 © Siemens Nixdorf Informationssysteme AG 1993
Druck vom 12. 04.1999 16:17.07 Pfad: H:\Christoph\Manuale\PDF\RM\RM400C Betriebsanleitung\englisch\rm400.k05
Ethernet LAN controller 10 Mbit/s (PCI)

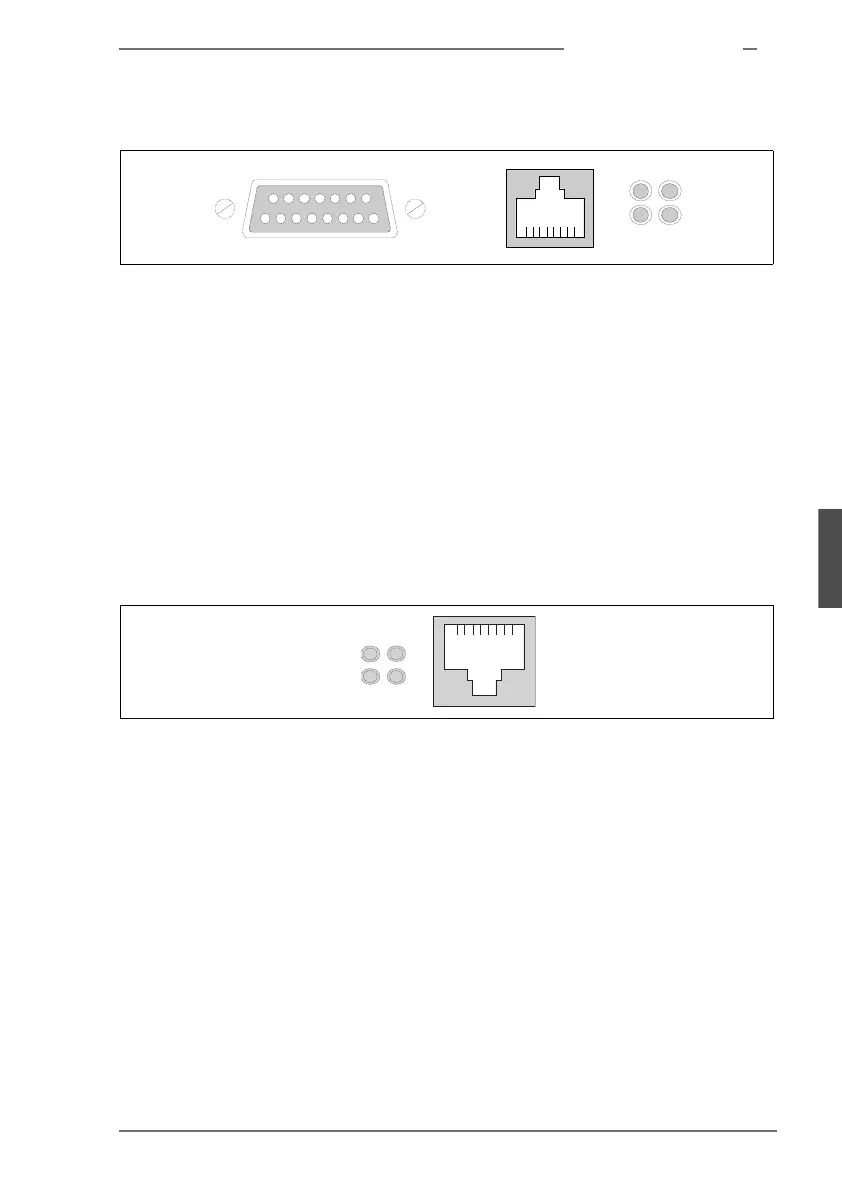

Figure 18: Ethernet LAN controller, 10 Mbit/s (PCI) (CL13) - (optional) -
This LAN controller will accept LAN cables of two types, either thick Ethernet (AUI)
or twisted-pair. You do not need to switch the controller over in order to change from
AUI to twisted-pair or vice versa.
You cannot use both ports on this LAN controller at the same time.
Fast Ethernet LAN controller 10/100 Mbit/s (PCI)
Figure 19: Fast Ethernet LAN controller, 10/100 Mbit/s (PCI) (CL16) - (optional) -
The Fast Ethernet controller provides an Ethernet interface (10BaseT or
100BaseTX) in a single PCI slot. The speed is either 10 or 100 Mbit/s and is
automatically detected by the controller.
You cannot use the two LAN controller connectors in parallel.
left-hand port AUI port for connecting cable to fan-out unit or transceiver
right-hand port twisted-pair port (10BaseT)
