Installing peripherals
5
U24802-J-Z146-2-7600 RM400 C Models 51
Dokuschablonen Version 3.2 vom 25.10.93 © Siemens Nixdorf Informationssysteme AG 1993
Druck vom 12. 04.1999 16:17.09 Pfad: H:\Christoph\Manuale\PDF\RM\RM400C Betriebsanleitung\englisch\rm400.k05
FDDI LAN controller (single-attached)

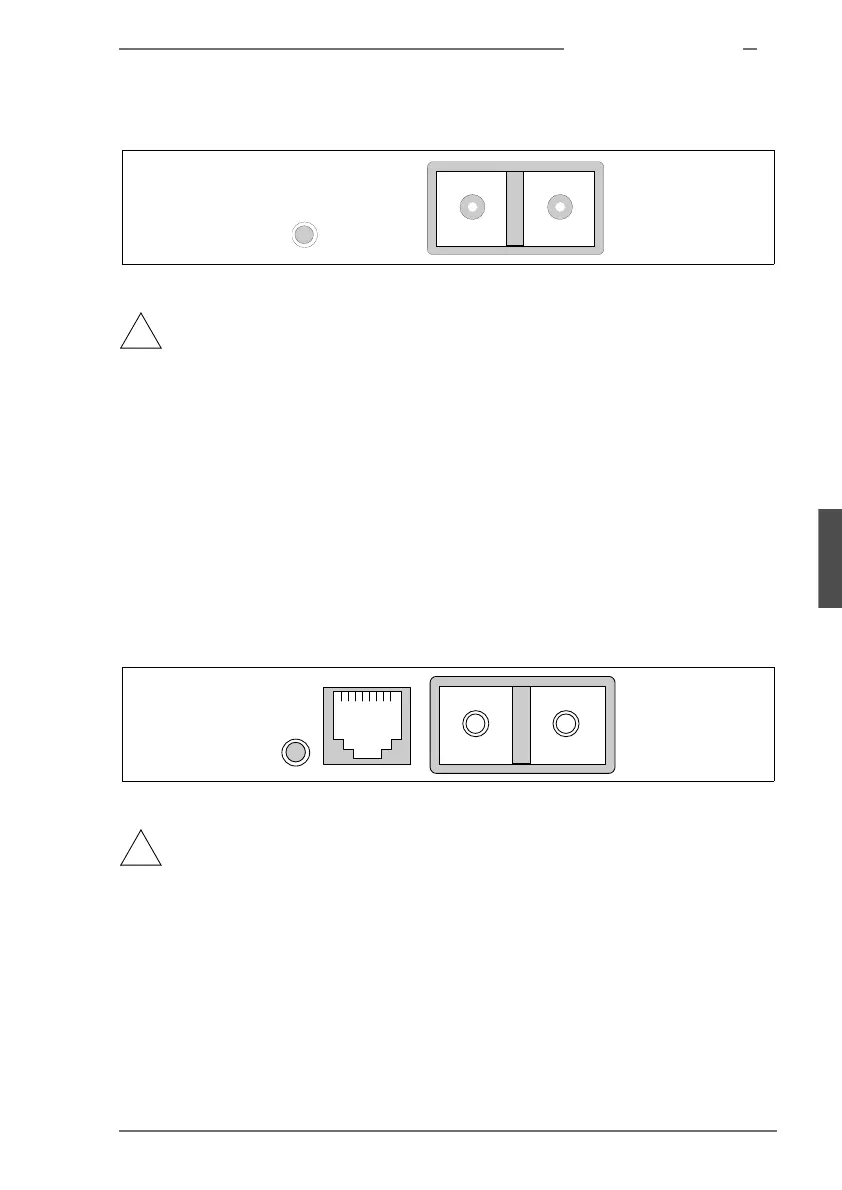

Figure 22: FDDI LAN controller (single-attached) (EISA) (CL41) - (optional) -
FDDI cables are fiber-optic cables. Never look straight into a fiber-optic
cable or fiber-optic port because the laser beams in fiber-optic equipment
can damage your eyes.
If the controller is not connected with the FDDI cable, the dust protection
cover must be mounted on the controller, both for safety reasons and to
ensure continued fault-free operation.
This LAN controller will only accept one connector.
Ê Plug the connector on the FDDI cable into the socket. The connector must lock
into place.
FDDI LAN controller (dual-attached)
Figure 23: FDDI LAN controller (dual-attached) (EISA) (CL42) - (optional) -
FDDI cables are fiber-optic cables. Never look straight into a fiber-optic
cable or fiber-optic port because the laser beams in fiber-optic equipment
can damage your eyes.
If the controller is not connected with the FDDI cable, the dust protection
cover must be mounted on the controller, both for safety reasons and to
ensure continued fault-free operation.
This LAN controller can only be operated in combination with the single-attached
FDDI LAN controller. First attach the single-ended FDDI controller as described
above.
!
