Siemens SIMATIC ET 200SP Function Manual

OPC UA communication
9.1 What you need to know about OPC UA
Communication
Function Manual, 11/2019, A5E03735815-AH
133
Example: Access of OPC UA clients to the OPC UA server of the CPU
For access of an OPC UA client to the OPC UA server of the CPU, the following interfaces of
the S7-1500 station are available:
● The local PROFINET interfaces of the S7-1500 CPU
● The Ethernet interface of a CP 1543-1 (firmware version V2.2 and higher)
The following figure shows an example of a possible configuration: The CPU could also have
the role OPC UA client and the device on the subnet of the CP could have the role OPC UA
server.

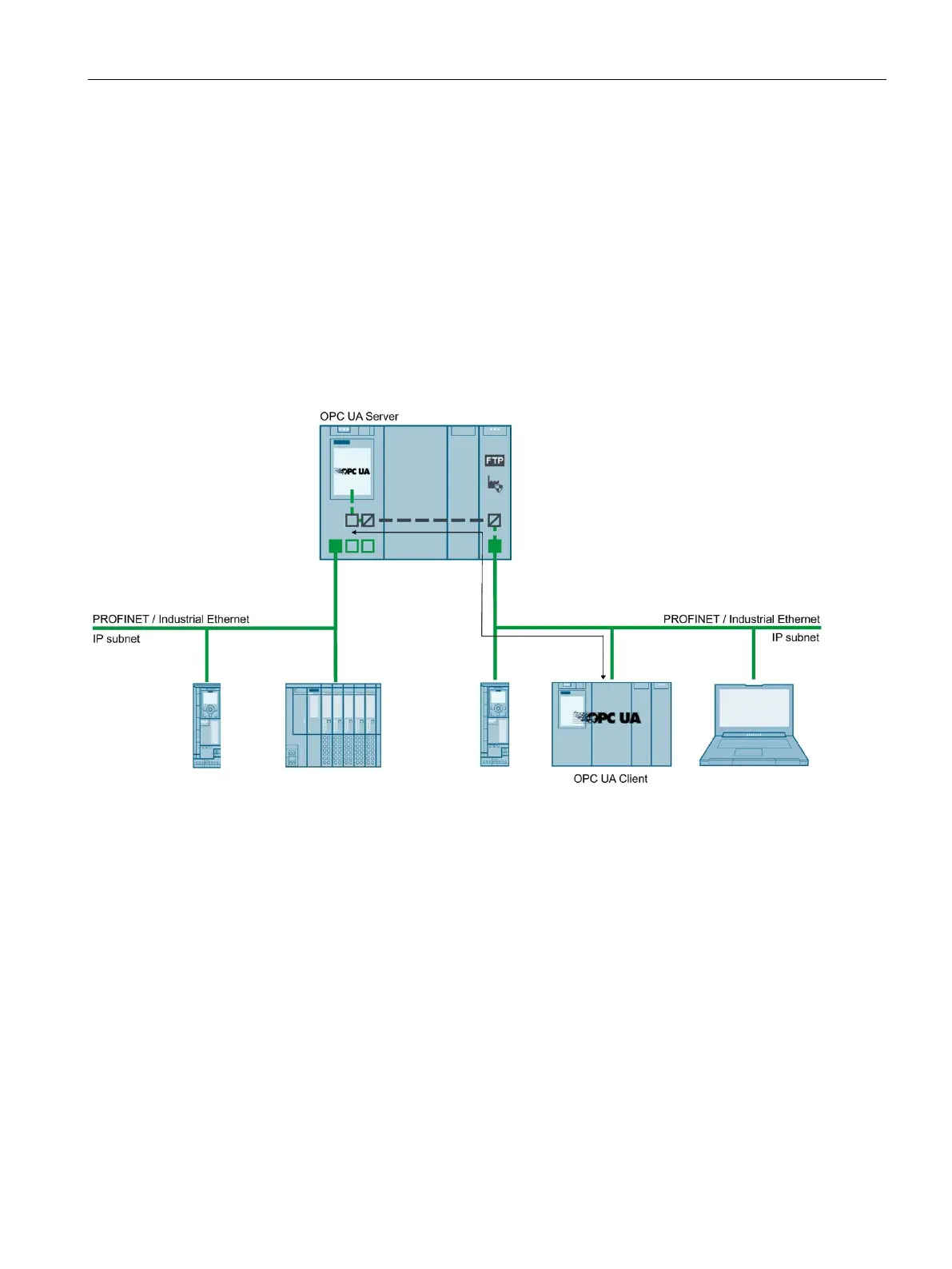

Figure 9-2 Example: Access of OPC UA clients to the OPC UA server of the CPU

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
