Siemens SIMATIC ET 200SP Function Manual

OPC UA communication
9.1 What you need to know about OPC UA
Communication
134 Function Manual, 11/2019, A5E03735815-AH
Example: Access of OPC UA clients to OPC UA servers via S7-1500 CPU with activated IP
Forwarding
OPC UA client and OPC UA server can also be connected to one another via an S7-1500
CPU, in which case the S7-1500 CPU operates as an IP Forwarder. This configuration
option allows for flexible expansion of existing systems.

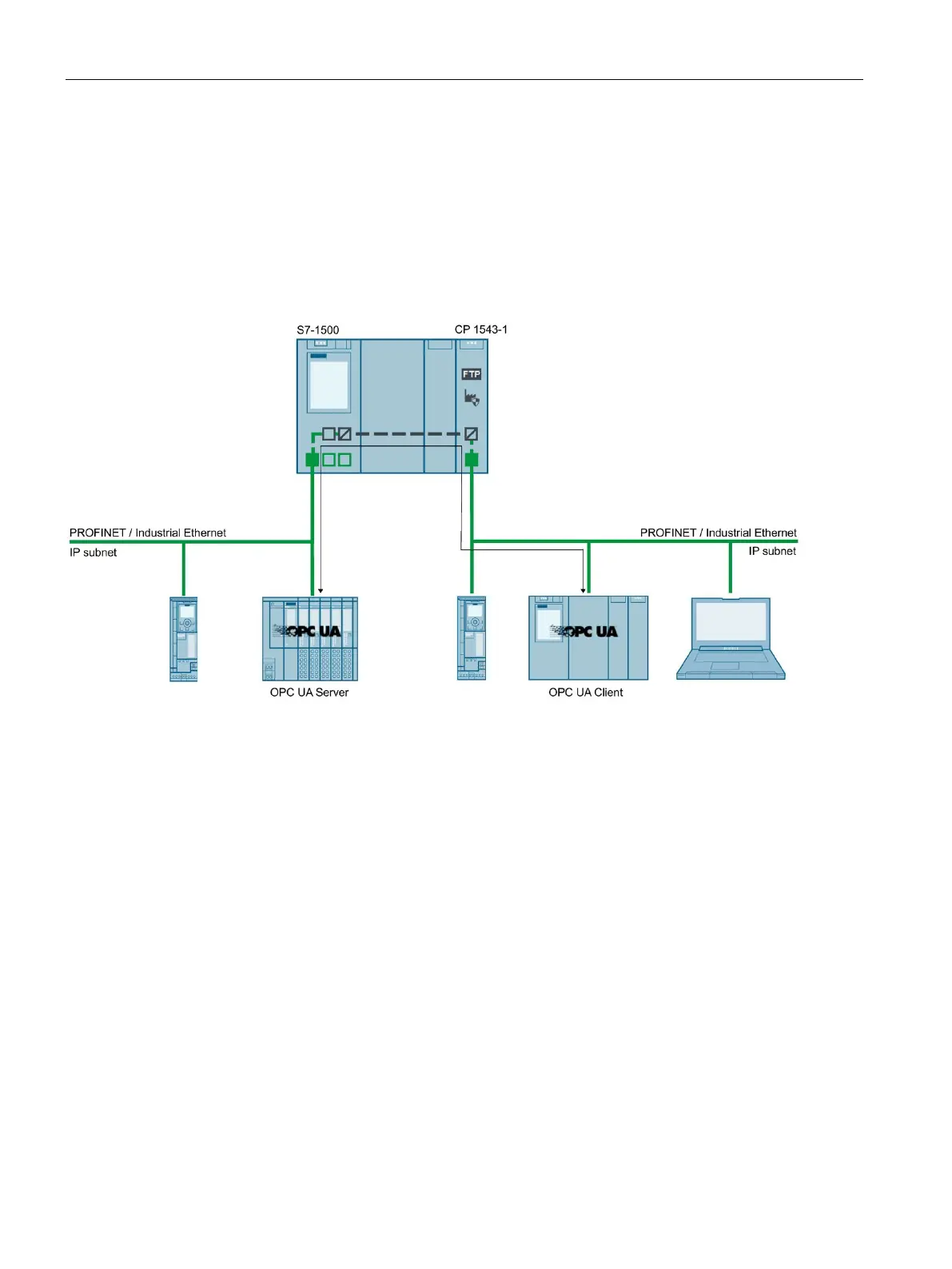

Figure 9-3 Example: Access of OPC UA clients to OPC UA servers via S7-1500 CPU with activated IP Forwarding
Additional information
Additional information on access options via the virtual interface and via IP forwarding can
be found in the following sections:
● IP forwarding (Page 294)
● Virtual interface for IP-based applications (Page 303)

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
