Routing

10.3 IP forwarding

Communication

296 Function Manual, 11/2019, A5E03735815-AH

● For the PC, the IP router, the IO device and the HMI device, the IP addresses of a

standard gateway or the corresponding routes are also entered.

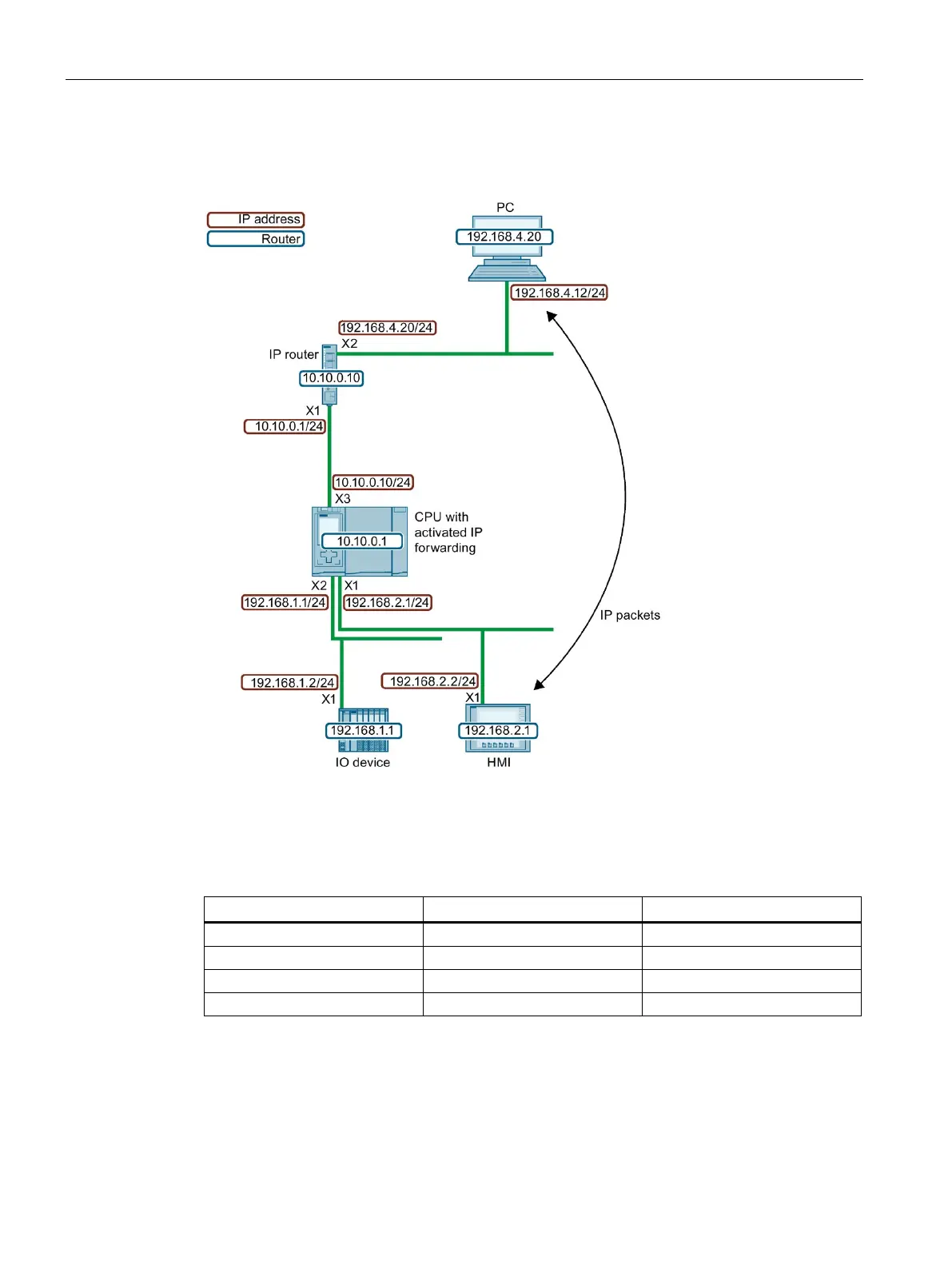

Figure 10-8 Sample configuration

This example configuration results in the following IP routing table for the CPU.

Table 10- 1 IP route table of the CPU

Network destination

Interface

Gateway

0.0.0.0/0

10.10.0.10

10.10.0.1

192.168.1.0/24

192.168.1.1

192.168.2.0/24

192.168.2.1

10.10.0.0/24

10.10.0.10

For IP communication between the PG/PC and the HMI device, you need to set up additional

IP routes to the IP subnet of the HMI device both in the PC and in the IP router. In the HMI

device, you configure the IP address of the CPU interface X1 as the standard gateway.
