Routing
10.3 IP forwarding
Communication
298 Function Manual, 11/2019, A5E03735815-AH
Restrictions
You cannot configure any additional IP routes other than the router ("Standard Gateway") for
an S7-1500 CPU. The network destination is either a connected IP subnet, or the network
destination can be reached via exactly one configurable router. Because the S7-1500 CPU
does not support additional IP routes, you cannot build bi-directional IP router cascades.

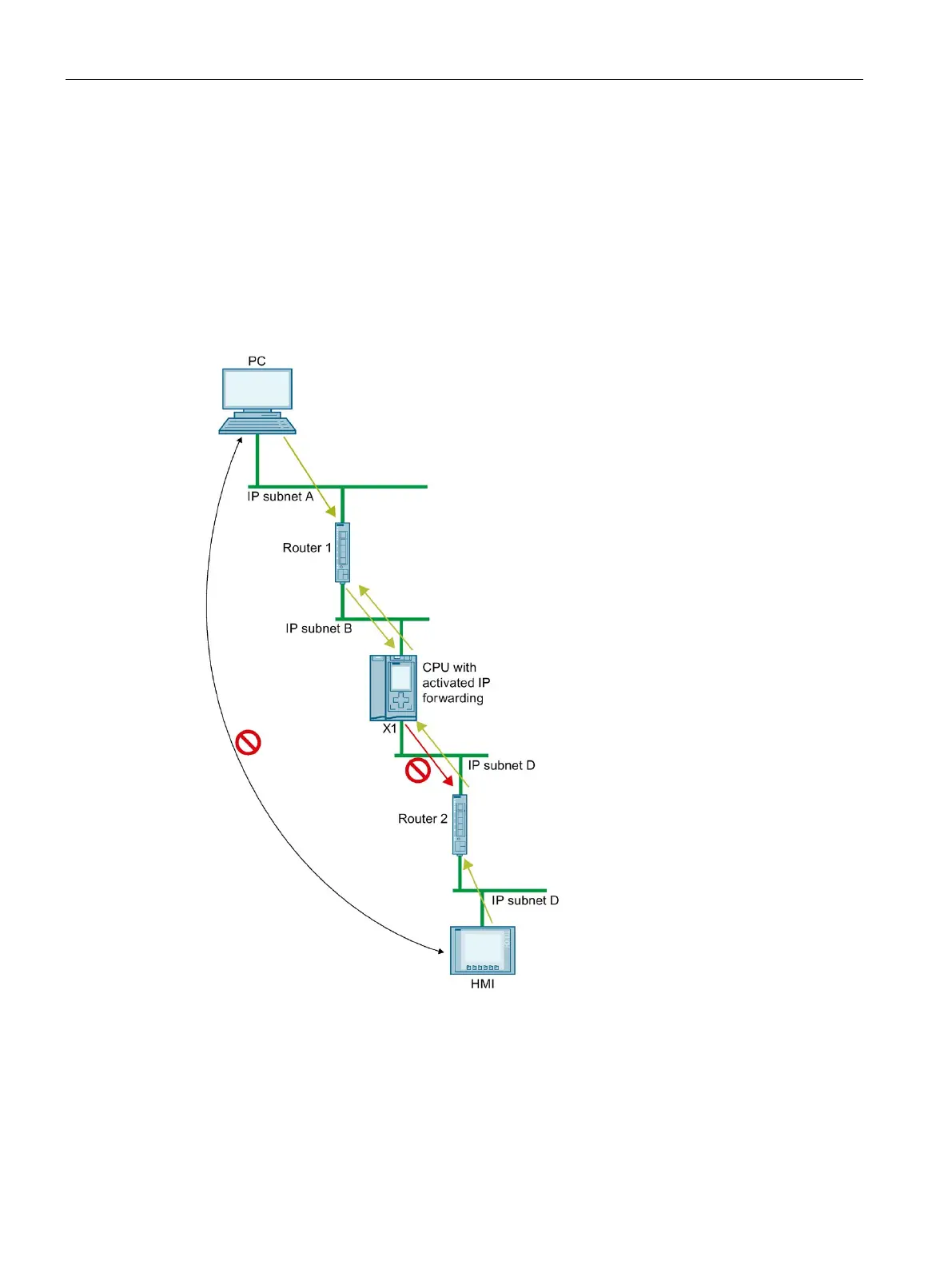

In the following configuration, you can configure either "Router 1" or "Router 2" in the CPU.
"Router 1" is configured as an example. In this case, you cannot configure "Router 2". IP
communication between the PC and the HMI device is not possible because the route is not
continuous in both directions.
Figure 10-9 Unsupported IP router cascade

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
