Product overview
2
2.1 View
① Rear: Write protection
switch
⑧ Article number
② Function class ⑨ LEDs (Page 145)
③ Color coding electronic
weighing system type
⑩ Wiring diagram
④ Function version ⑪ 2D matrix code
⑤ Color code for selection of
the color-coded labels
⑫ Electronic weighing system type and designation
⑥ BaseUnit type ⑬ Button in enclosure for emergency access to the Web server
⑦ Below: Ethernet

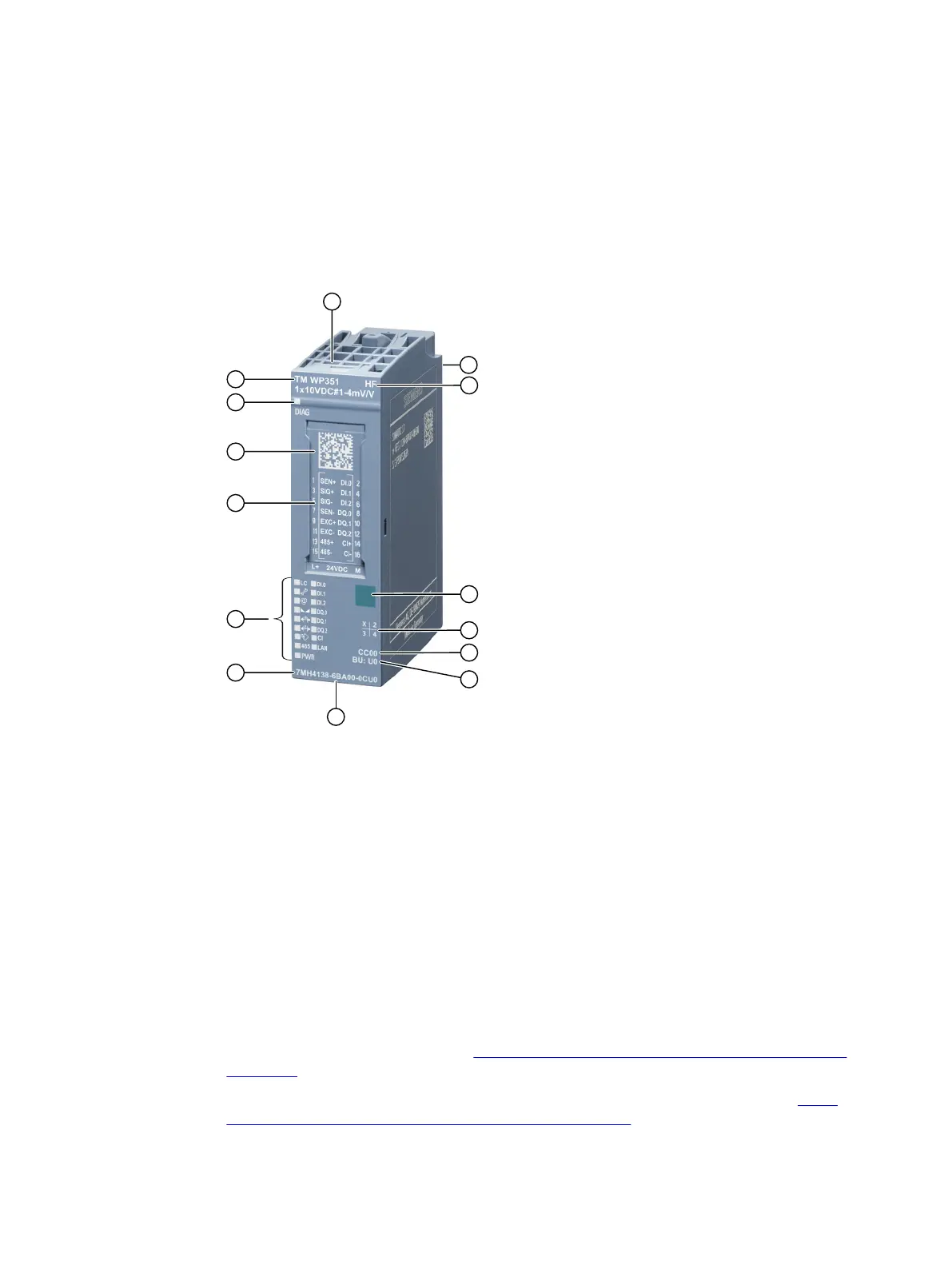

Figure 2-1 View of the electronic weighing system
See also
ET 200SP Distributed I/O System (http://support.automation.siemens.com/WW/view/en/
58649293)
Product information on documentation for the ET 200SP Distributed I/O System (http://
support.automation.siemens.com/WW/view/en/73021864)
Technology module TM SIWAREX WP351 HF
Operating Instructions, 01/2020, A5E47521010-AA 15
