SIGNAL-
EXC-
SENSE-
SHIELD
EXC+
SENSE+
SIGNAL+
SIGNAL+
SENSE+
EXC+
SIGNAL-
SENSE-
EXC-

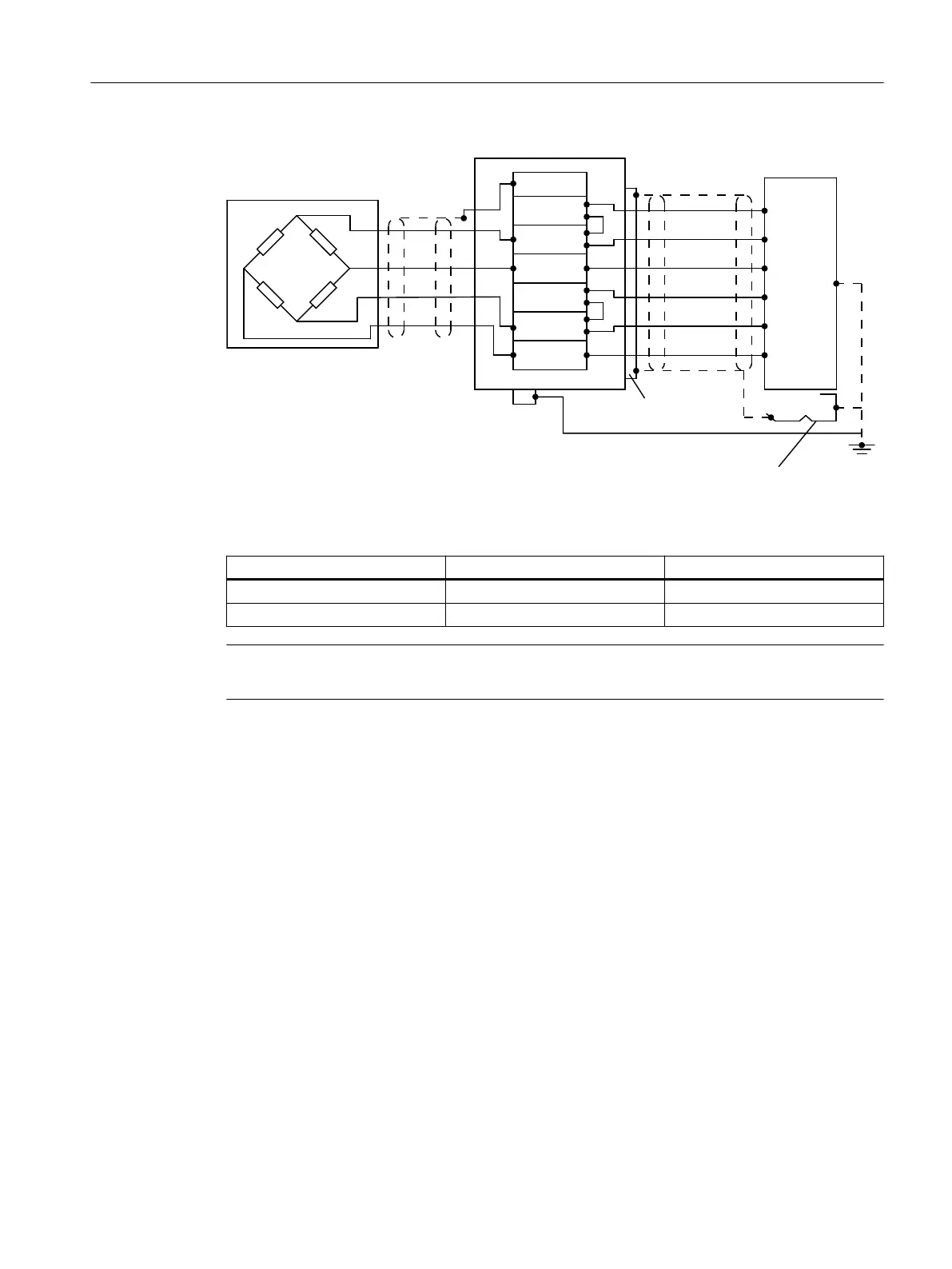

Figure 4-3 Cable shield of the signal cable connected to shield terminal
The following wire jumpers are set by default:
Wire jumper From terminal To terminal
1 EXC- SENSE-
2 EXC+ SENSE+
Note
If the wire jumpers are missing, the electronic weighing system reports a wire break.
