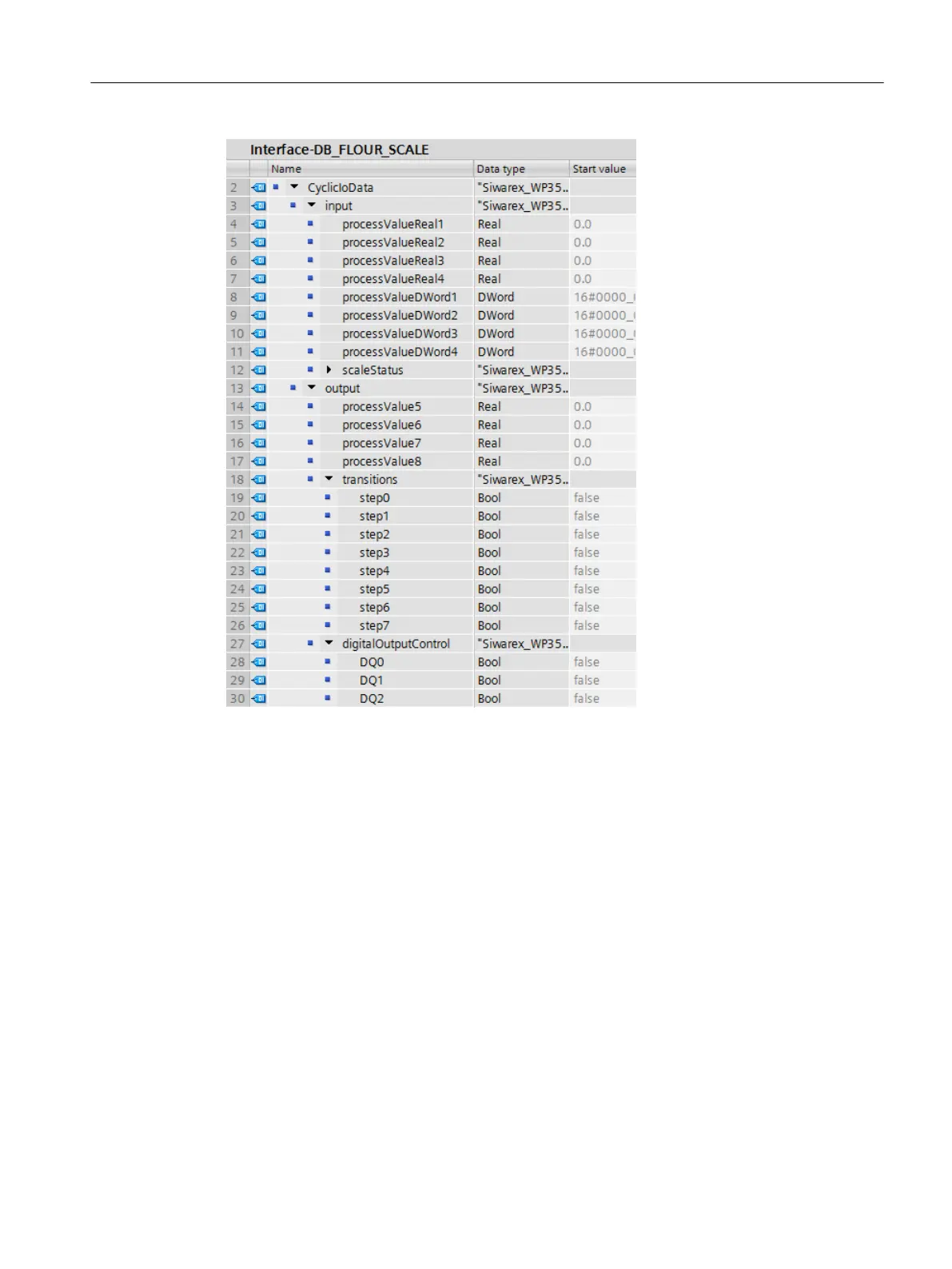

Input
[inProcessValueReal1 to inProcessValueR‐
eal4]
I/O process values in Real format according to de‐
fined parameters in DR07 (Page 72).
[inProcessValueDWord1 to inProcessValueD‐
Word4]
I/O process values in DWord format according to de‐
fined parameters in DR07 (Page 72).
[scaleStatus] Weighing status of weighing steps according to pa‐
rameters in DR30 (Page 103).
Output
[ioProcessValue5 to ioProcessValue8] I/O process value according to defined parameters
in DR07 (Page 72).
Parameter assignment/addressing
6.2 TIA Portal user program
Technology module TM SIWAREX WP351 HF
Operating Instructions, 01/2020, A5E47521010-AA 47
