Maintaining and servicing your device
7.4 Removing and installing hardware
SIMATIC IPC677E
100 Operating Instructions, 04/2019, A5E45117996-AA
7.4.4 Replace power supply
Requirement
● The device is disconnected from the mains and all connecting cables have been
removed.
● The device is open, see important information regarding this under Opening the Device
(Page 71).
● An original spare part, i.e. a power supply of the same type, see notes under
Accessories: Hardware (Page 22).
Procedure - Removal

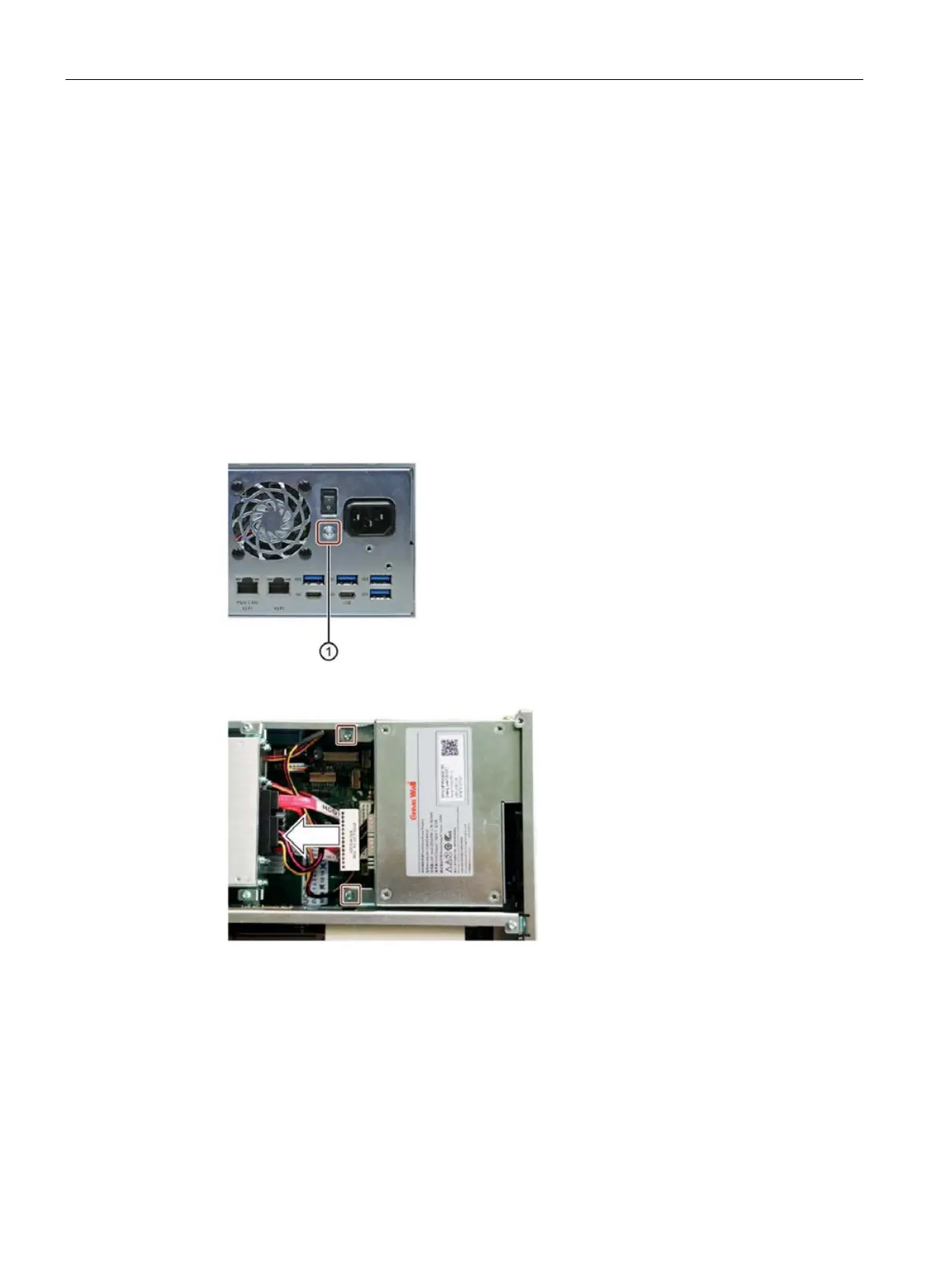

1. Remove the marked screw ①.
2. Pull the power supply connector and remove the marked screws.
