SIMATIC IPC677E
Operating Instructions, 04/2019, A5E45117996-AA
129
Hardware descriptions
A
A.1 Motherboard
A.1.1 Layout of the motherboard

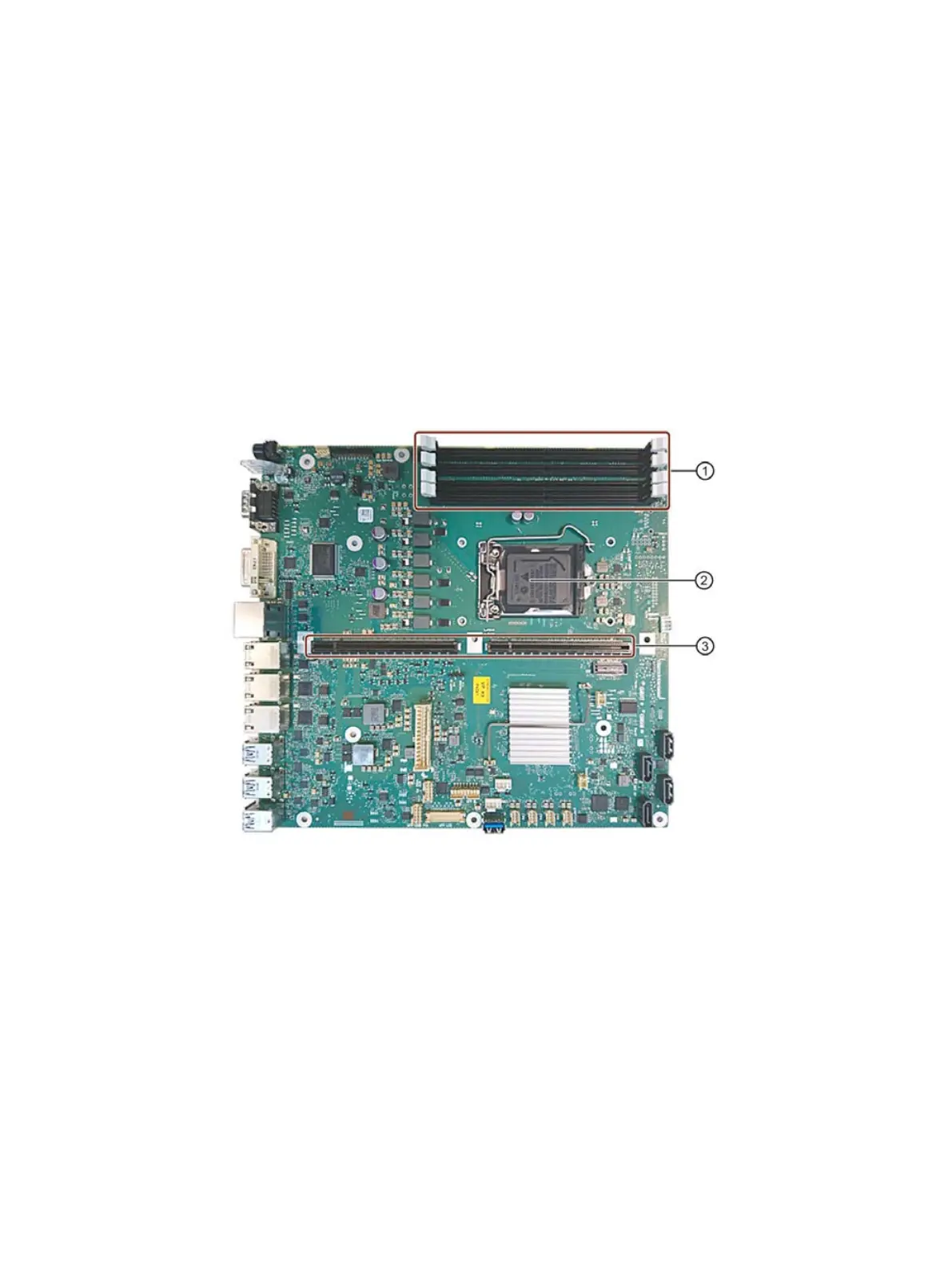

The motherboard consists of these main components: Processor and chip set, four slots for
memory modules, internal and external interfaces, and the Flash BIOS.
Slots for memory modules
Processor
Slots for bus boards
Technical features of the motherboard
Technical features of the motherboard can be found under "Technical specifications of the
motherboard (Page 116)".
