Siemens SIMATIC IPC677E - Position of the Interfaces on the Motherboard

Hardware descriptions
A.1 Motherboard
SIMATIC IPC677E
130 Operating Instructions, 04/2019, A5E45117996-AA

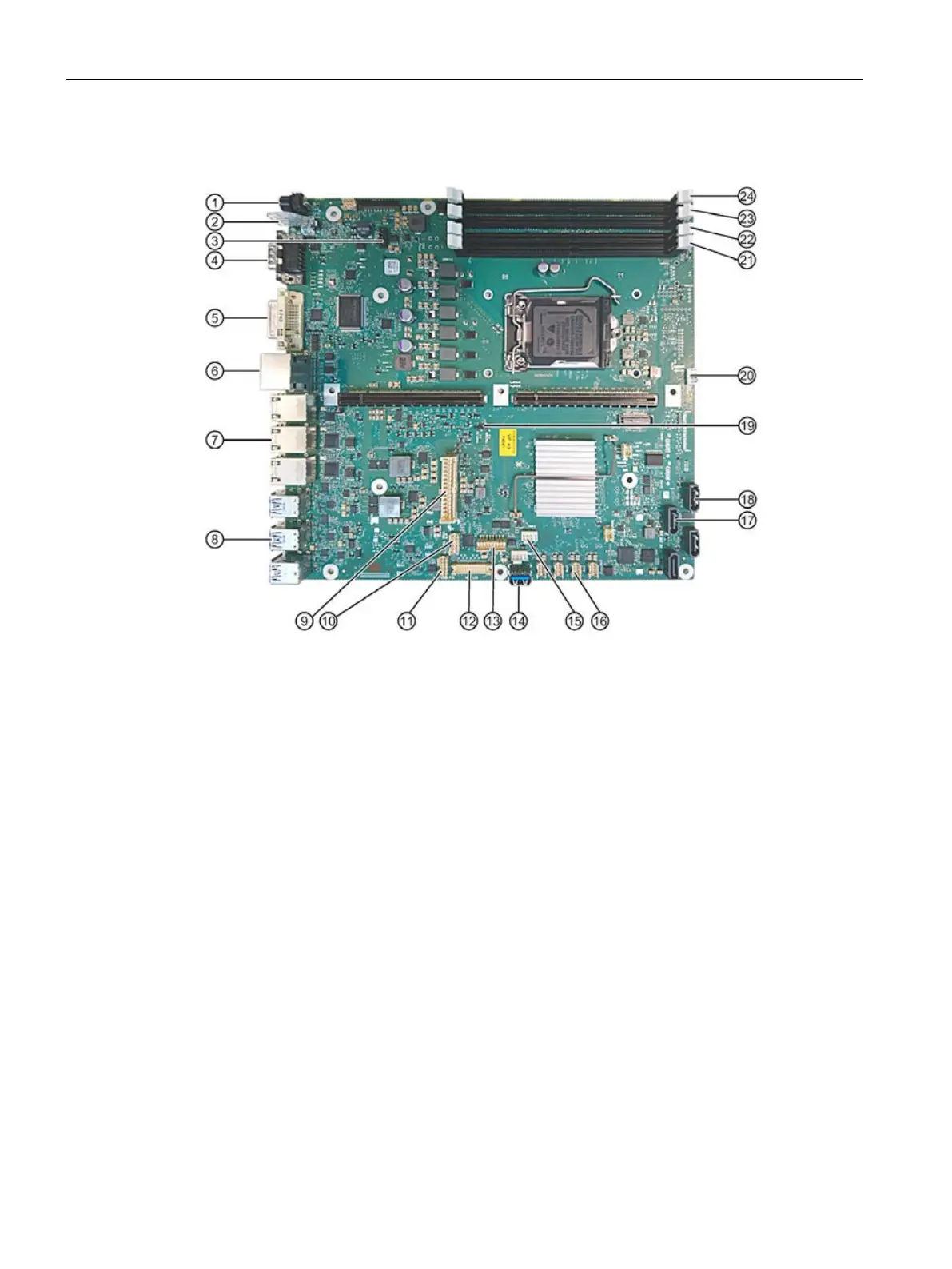

A.1.2 Position of the interfaces on the motherboard
(1)
Power button
(8)
USB 3.1 (X60
-X65)
4x type A, 2x type C
(17)
SATA 1 (Port3)
(X523)
(2)
Status LEDs
(9)
Power supply (X800)
(18)
SATA 0 (Port2)
(X526)
(3)
2xUSB 2.0 (X13)
(10)
USB 2.0 (X15), IPC677E
only
(19)
BIOS Recovery
(X594)
(4)
COM1
(X30)
(11)
USB 2.0 (X17), IPC677E
only
(20)
CPU fan (X513)
(5)
DVI (X70)
(12)
LVDS (X9), IPC677E only
(21)
RAM DIMM1-2 (X190)
(6)
2x DPP (X71/X72)
(13)
Backlight (X4007)
(22)
RAM DIMM1-1 (X19)
(7)
LAN 1 (X1 P1)
(14)
1x USB 2.0 (X562)
(23)
RAM DIMM2-2 (X200)
LAN 2 (X2 P1)
(15)
PS fan (X52)
(24)
RAM DIMM2-1 (X20)
LAN 3 (X3 P1)
(16)
4x SATA-SV (X516-X519)
