Product description
1.5 Internal design of the device
SIMATIC IPC677E
Operating Instructions, 04/2019, A5E45117996-AA
21

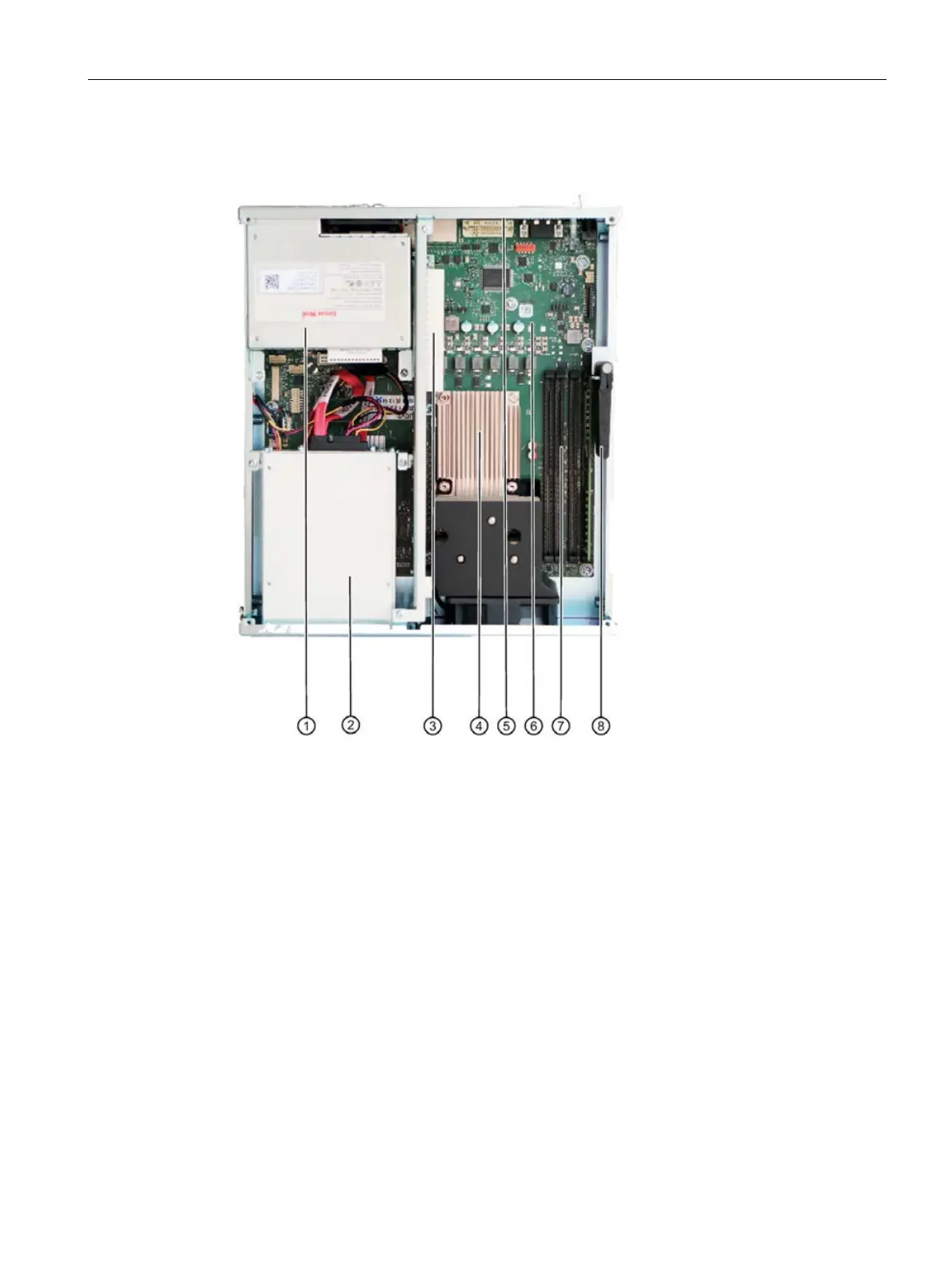

1.5 Internal design of the device
①
100 V AC to 240 V AC power supply
②
Slots for removable drives
③
Expansion card slots
④
Heat sink of the processor
⑤
Expansion card slots
⑥
Motherboard
⑦
Slots for memory modules
⑧
Retainer for expansion cards
