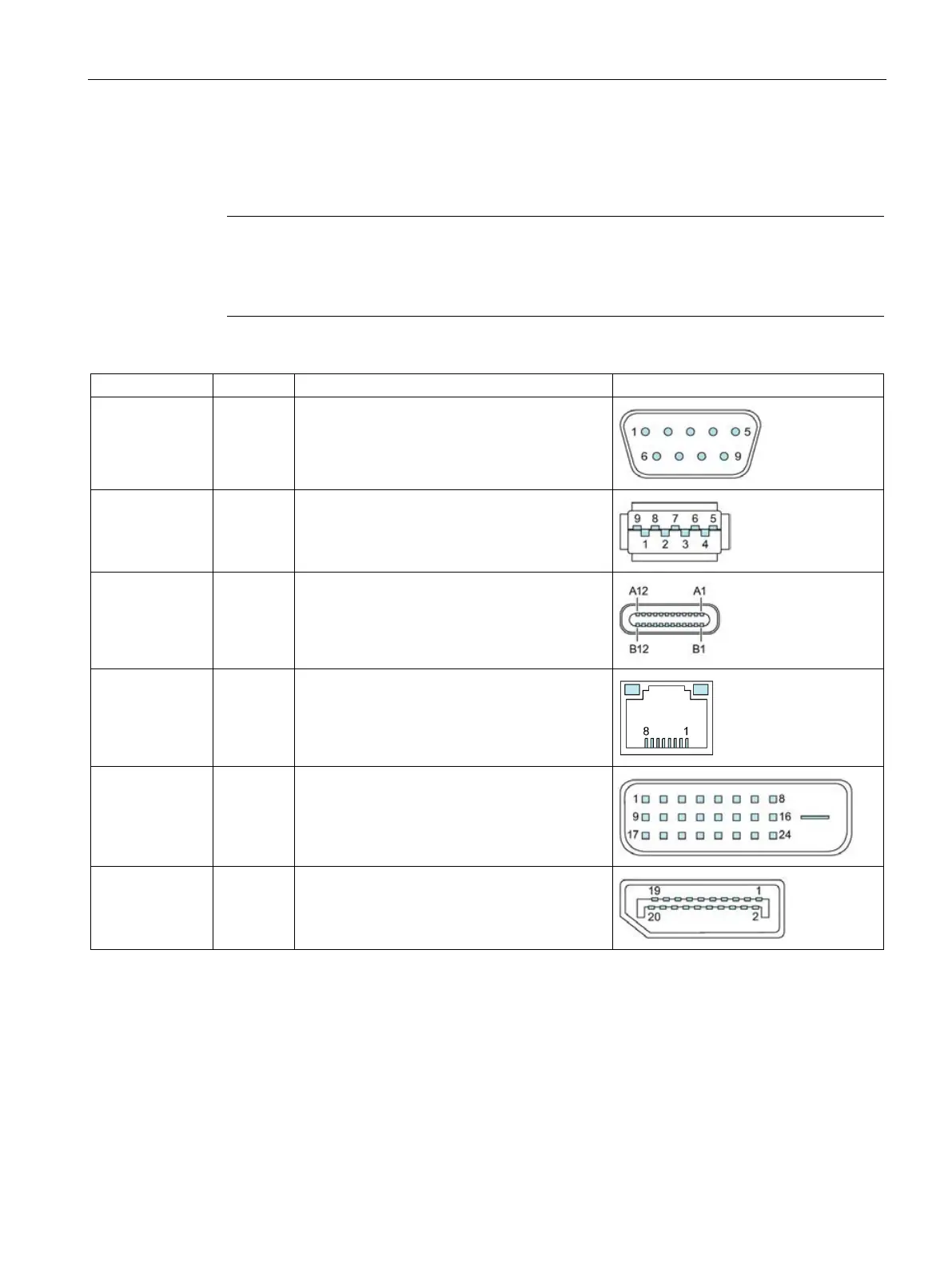

A.4 External interfaces
SIMATIC IPC677E
Operating Instructions, 04/2019, A5E45117996-AA
135
A.4 External interfaces
Note
Interface specification
The data of all external interfaces listed below correspond to the respective interface
specifications and the intended use.
Interface
Connector
Description
Assignment
COM1 X30 9-pin standard plug
(± 12 V)
USB 3.1 X2 A, B
X4 A, B
USB3 Port 0, 1; USB2 Port 0, 1 interface side
(3.3 V; 900 mA; up to 10 Gbps)
USB 3.1 type C X61, X63 USB3 Port 0, 1; USB2 Port 0, 1 interface side
(5 V; 1.5 A to 3.0 A; up to 10 Gbps)
Ethernet 1, 2
and 3
X4, X2, Xn RJ45
(up to 1 Gbps)
DVI-D X70 24-pin DVI-D female connector
(3.3 V; 500 mA)
DPP X71, X72 20-pin DisplayPort connector
