Maintaining and servicing your device
7.4 Removing and installing hardware
SIMATIC IPC677E
Operating Instructions, 04/2019, A5E45117996-AA
105
7. Remove the power supply, see also Replace power supply (Page 100).

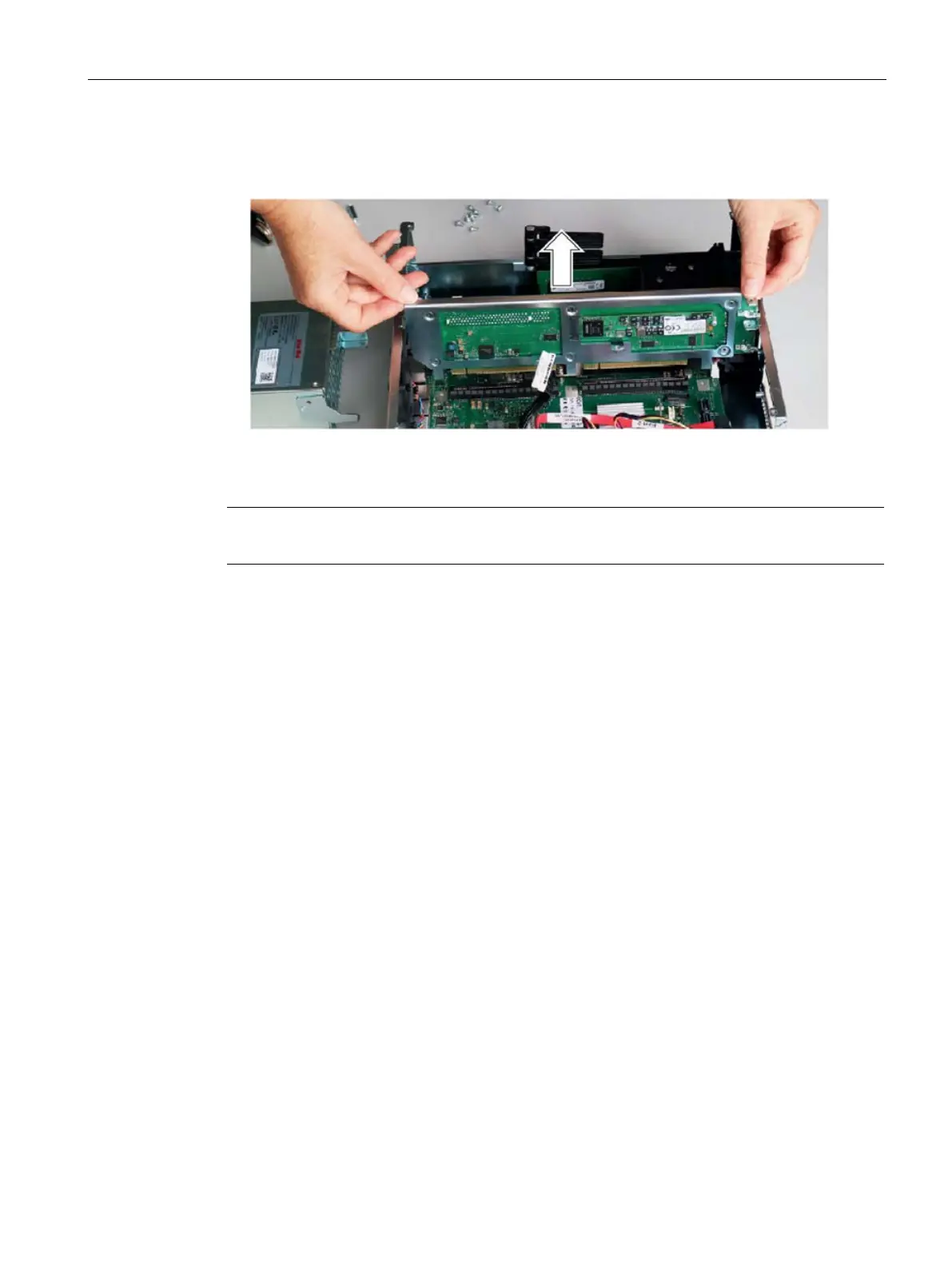

8. Pull the bus board from the motherboard as shown in the figure.
Procedure - Installation
Note
Install only a bus board of the same type.
Proceed in reverse order.
