Mounting and connecting the device
3.2 Mounting the device
SIMATIC IPC677E
Operating Instructions, 04/2019, A5E45117996-AA
43

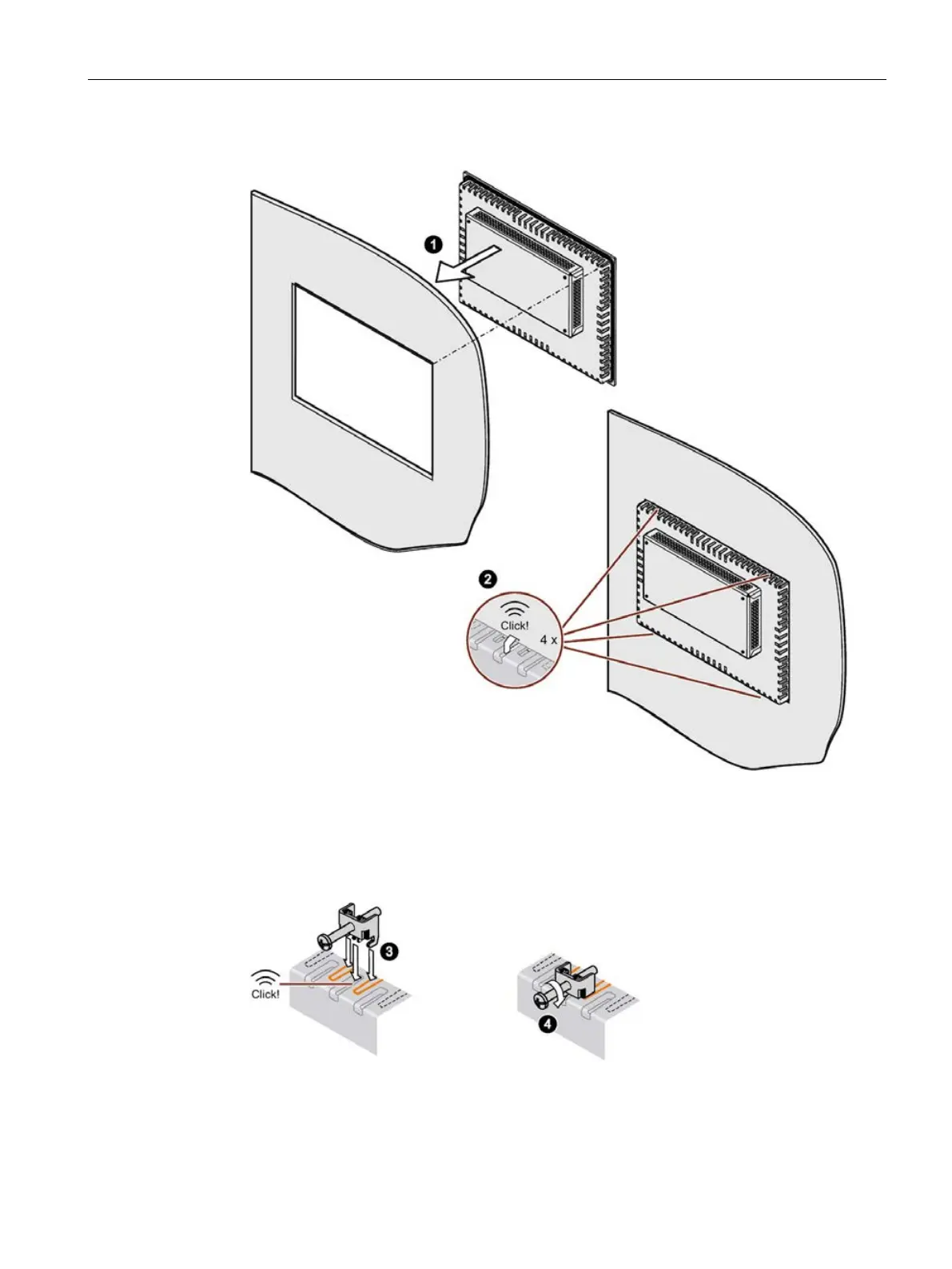

1. Working from the front, insert the device into the mounting cut-out.
2. Make sure that all four spring fasteners latch fully into place on the upper and lower side
of the device. If necessary, press the device again carefully into the mounting slot at the
place that is not fully latched into position.
3. Insert a mounting clip into the cutout provided on the device.
Note the correct position of the mounting clips.
4. To secure the mounting clip, tighten the grub screw with the slot screwdriver, torque 0.5
Nm.
