Mounting and connecting the device
3.3 Connecting the device
SIMATIC IPC677E
Operating Instructions, 04/2019, A5E45117996-AA
49
Requirement
● You have observed the information under "Country-specific information on supply voltage
(Page 46)".
● Screwdriver T10
Procedure

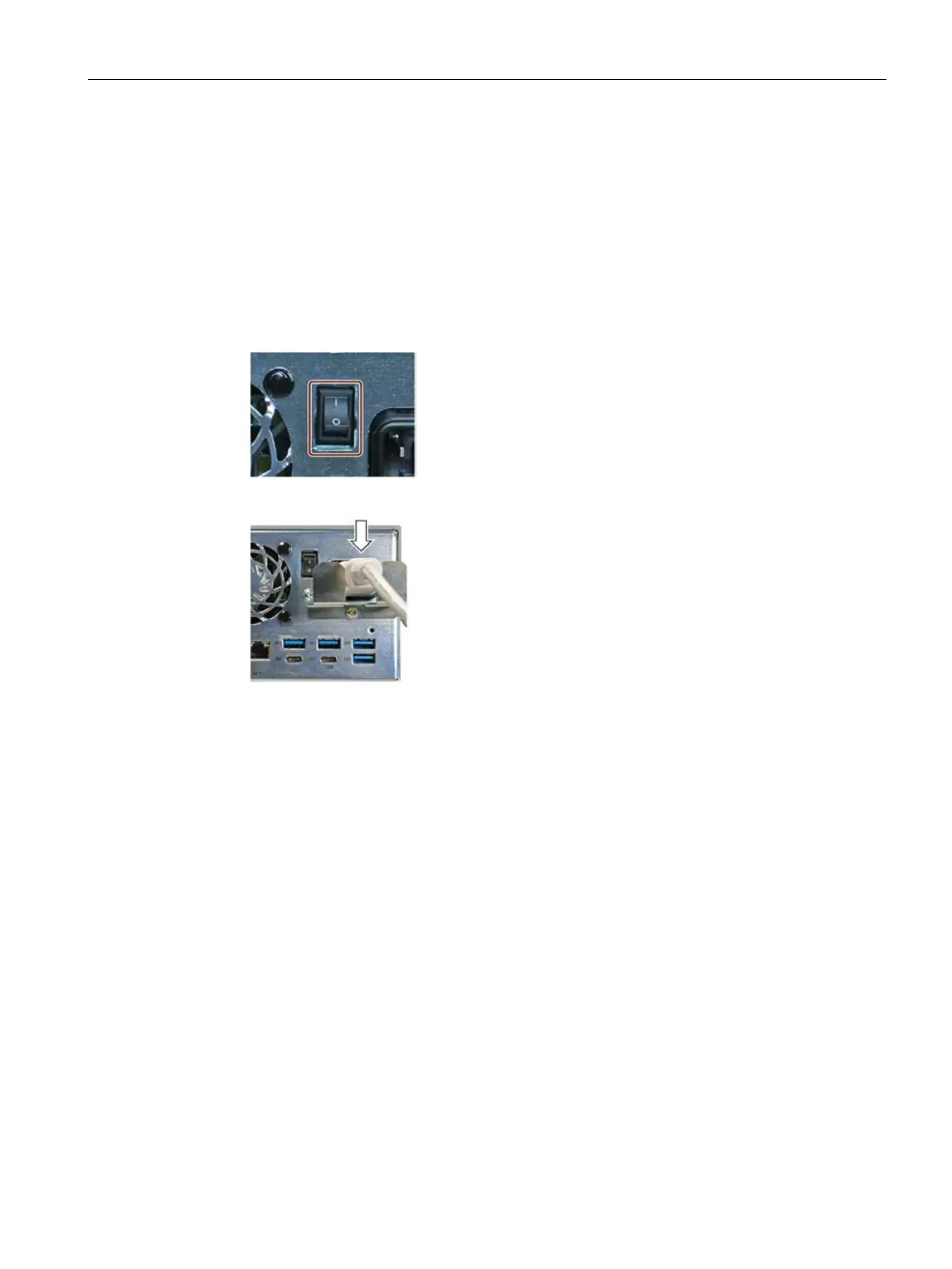

1. Make sure that the ON/OFF switch is in position "I" (Off) to avoid unintentional startup of
the device when you plug in the power cord.
2. Connect the appliance connector to the device.
3. Connect the power cable with the safety power outlet.
4. If necessary, install the enclosed cable grip.
