Expanding the device and assigning device parameters
6.4 Drives
SIMATIC IPC677E
88 Operating Instructions, 04/2019, A5E45117996-AA

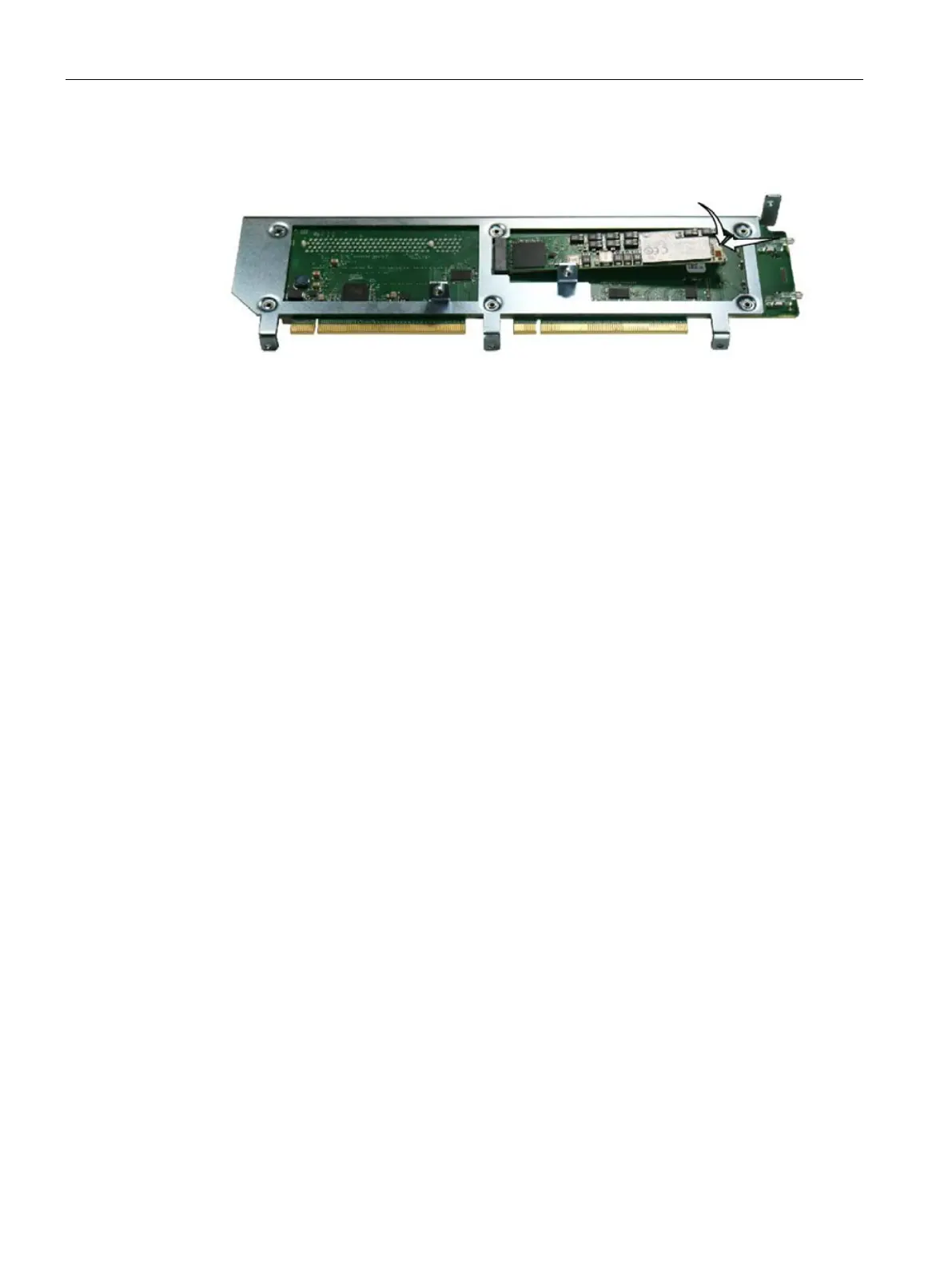

5. Insert the M.2 NVMe SSD slightly inclined from above into the provided direct connector
socket.
6. Carefully push the M.2 NVMe SSD down and secure it with the screw.
7. Install the bus board and then the drive bay module and the power supply again.
