Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC847E
110 Operating Instructions, 10/2018, A5E43920357-AA

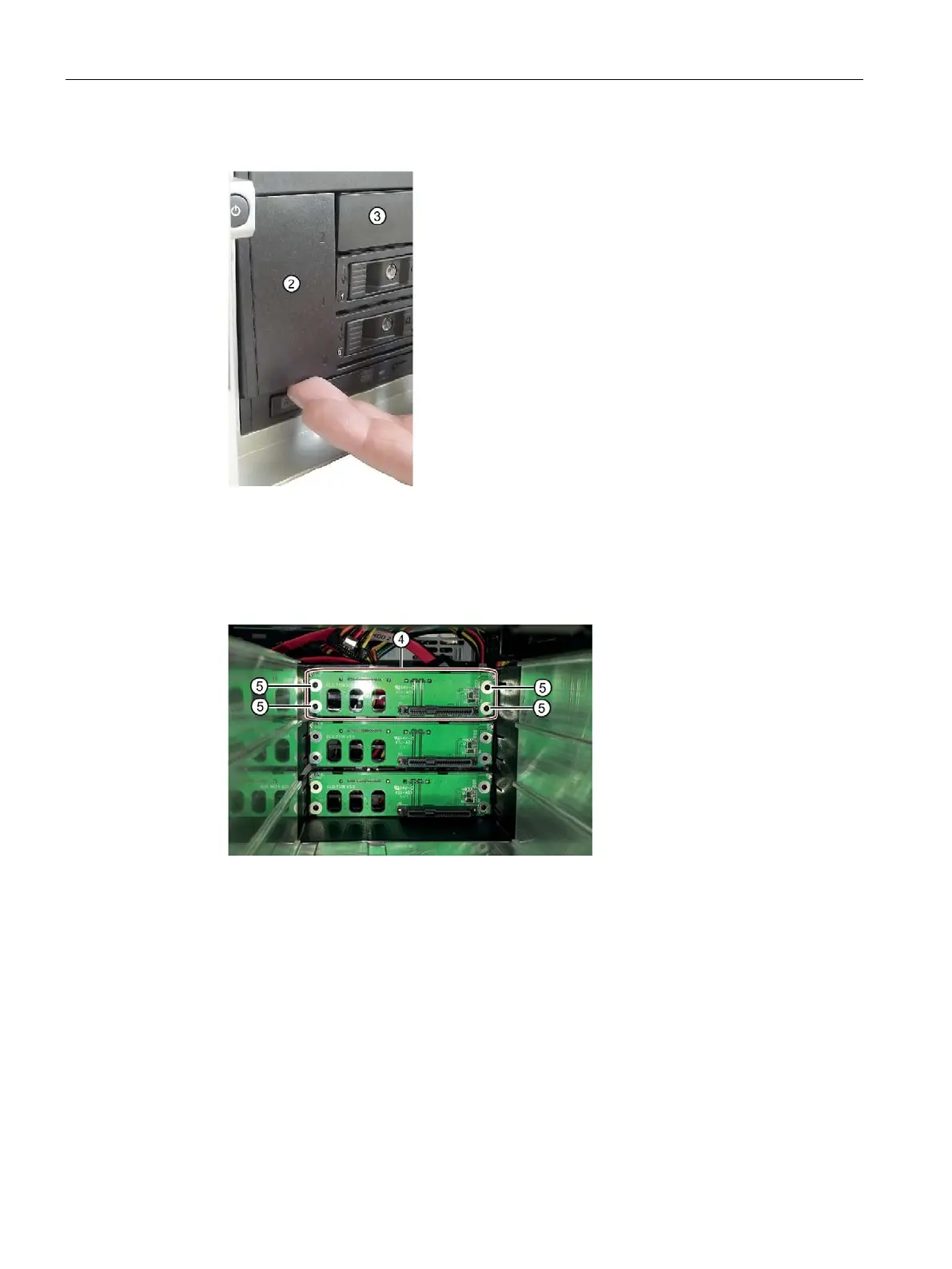

3. Remove the cover ② upwards at an angle at the front of the device.
4. Remove the blanking plates
③ which may be located to the right of the cover at the front
of the drive cage.
5. Remove all existing removable trays until the drive cage is freely accessible.
6. Insert the backplane
④ into the drive bay from the front and snap it into place at the
back.
