Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC847E
Operating Instructions, 10/2018, A5E43920357-AA
111

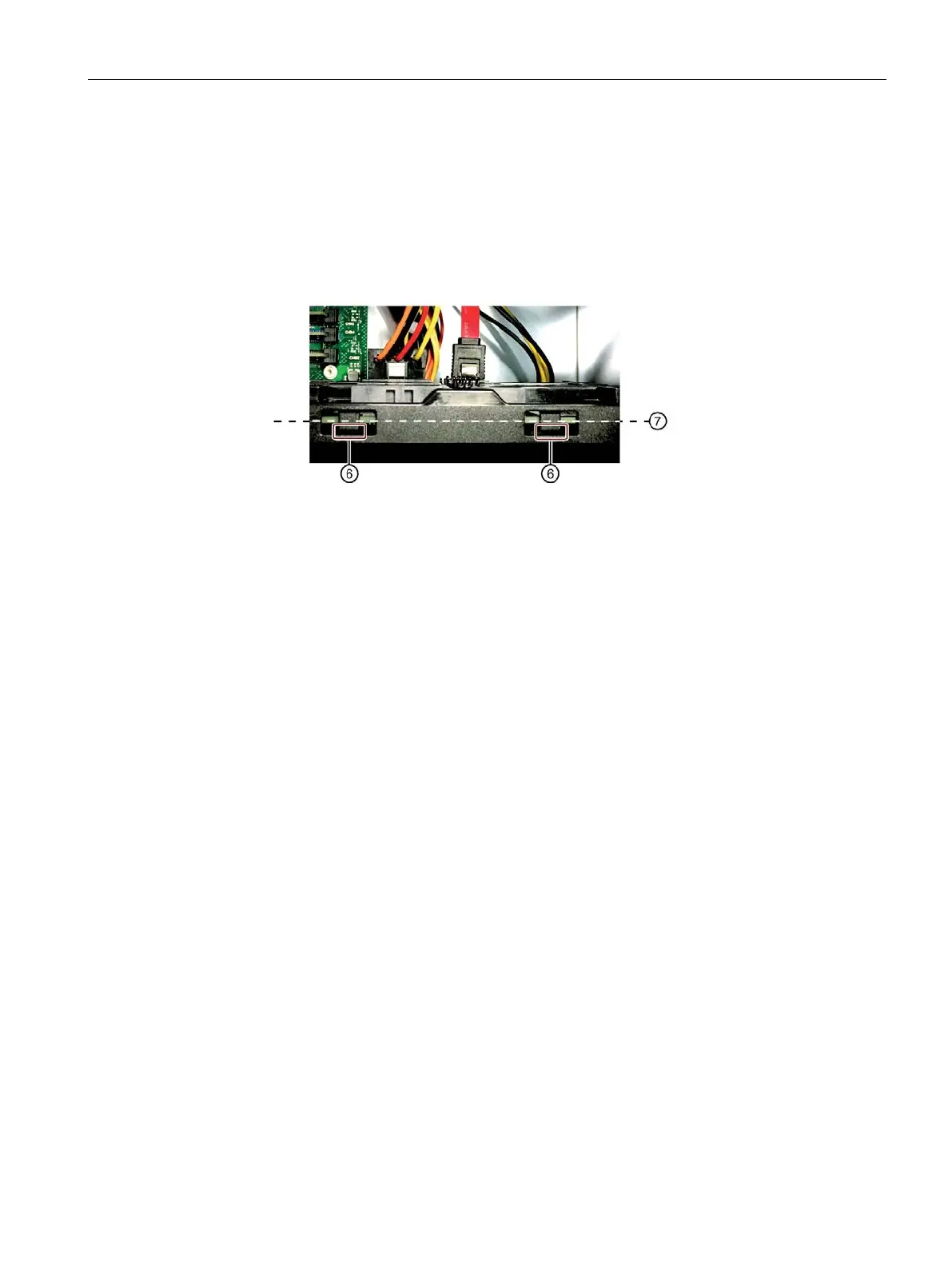

Check the following:
– The backplane lies flat at the back in the drive cage.
– All centering openings
⑤ of the backplane lie in the centering pins.
– The backplane is clipped in behind the latches
⑥.
– All backplanes lie exactly underneath each other, vertically aligned, when viewed from
above
⑦.
7. Reinstall the required blanking plates or removable trays.
8. Insert the cover
② into the front of the device.
9. At the backplane, connect the data cables with the corresponding interfaces on the
motherboard or the hardware RAID controller.
10. Connect the power supply.
11. Close the device.
